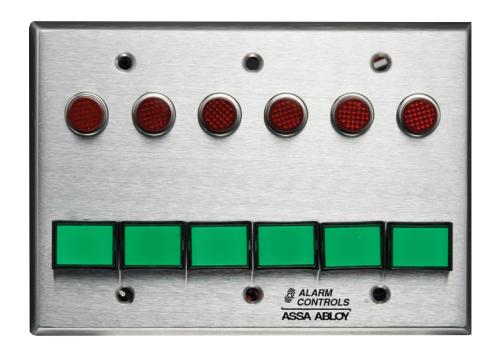

Models SLP-6L and SLP-6M

Six DPDT Latching/ Momentary Switch Monitoring/Control Station

Specifications

• Components mounted on standard three gang electrical wall plate
• Six 1/2" red LEDs operate on 12 or 24 VAC or VDC
• Switch LED operates on 12 or 24 VAC or VDC
• Switch contacts rated 3A at 35 VDC or 120 VAC
• Depth behind plate is 1-1/2"

Features

Designed to release or secure and monitor six electric locks

• Switches and LEDs terminated with colored leads
• Six DPDT illuminated latching or momentary push buttons with hibrightness built-in LEDs

Options

• Order 6L for Six DPDT Latching Switch Monitoring/Control Station
• Order 6M for Six DPDT Momentary Switch Monitoring/Control Station
• Green LEDs available
• Yellow LEDs available
• Custom switch legends are available

Models

SLP-6L

Six DPDT Latching Switch Monitoring/Control Station

SLP-6M

Six DPDT Momentary Switch Monitoring/Control Station
