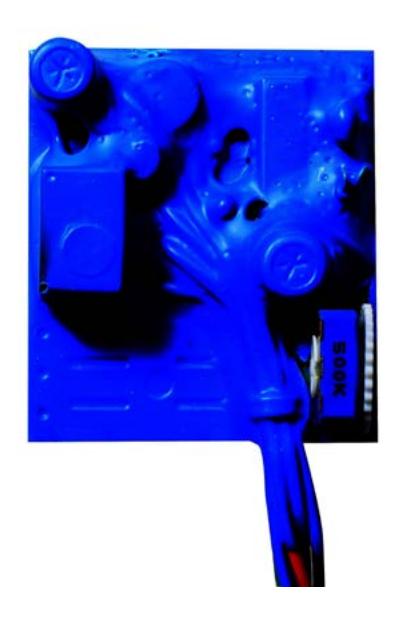

MT Series

Mini Timer

Specifications

• • Size: 1-3/4" x 1-3/4"
• • Voltage range: 12 to 24 VAC or VDC
• • Current Draw: 37 mA (maximum)
• • Contact rating: 2A at 35 VDC or 125 VAC
• • Temperature rating: -13 to +158F [-25 to +70C]
• • Contact arrangement: SPDT

Features

• • Mini timer and Fail Safe mini timer encapsulated for moisture protection
• • Time setting: adjustable from 2 to 45 seconds
• • Relay operating mode: one shot
• • Mounting: adhesive foam tape

Models

MT-1

Mini One Shot, Adjustable Time Settings from 2 to 45 Second, N/O Trigger, 12 or 24 VDC/VAC

MT-1F

Mini Timer Fail Safe
