View PDFMagnetic Lock s and Accessories Cross Reference Guide
MODEL 300S
300 lbs Single Lock Ideal for cabinets and showcases
MODEL 600S 600 lbs Single Lock
Recommended for interior doors
MODEL 600L
600 lbs Single Lock with status LED Recommended for interior doors
MODEL 600LB
600 lbs Single Lock with Bond Sensor, Door Status Sensor and LED Recommended for
interior doors
MODEL 600D
600 lbs Double Lock Recommended for interior doors
MODEL 600DLB
600 lbs Double Lock with Bond Sensor, Door Status Sensor and LED
Recommended for interior doors
MODEL 600WP
600 lbs Weatherproof Gate Lock
Recommended for exterior gates
300 and 600 Series Maglocks
| L-Brackets | ||||
|---|---|---|---|---|
| AM3320 | AM3320C | AM3325 | AM3326 | |
| 300S | ||||
| 600S | l | l | l | |
| 600D | l | |||
| 600DLB | l | |||
| 600L | l | l | l | |
| 600WP | l | l | ||

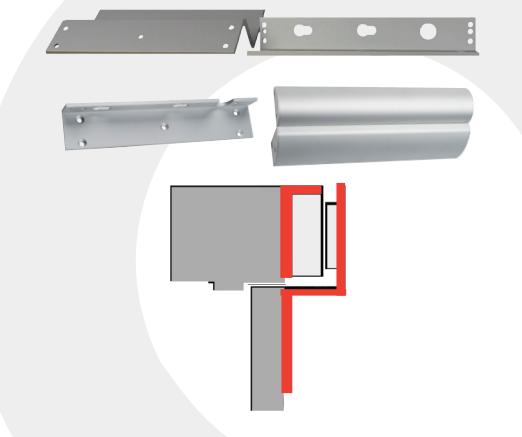

| Z-Brackets | |||||
|---|---|---|---|---|---|
|
AM2370
AM3370 AM3370C AM3375 |
|||||
| 300S | l | ||||
| 600S | l | l | |||
| 600D | l | ||||
| 600DLB | l | ||||
| 600L | l | l | |||
| 600WP | l | l | |||
| Drop Down Plates for Single Locks | ||||
|---|---|---|---|---|
|
AM1500
AM3300 AM3305 AM3330 |
||||
| 1/8" | 1/2" | 5/8" | 1/4" | |
| 300S | l | |||
| 600S | l | l | l | |
| 600L | l | l | l | |
| 600LB | l | l | l | |
| 600WP | l | l | l | |
| Drop Down Plates for Double Locks | |||||
|---|---|---|---|---|---|
|
AM3331
AM3332 AM3334 |
|||||
| 1/4" | 1/2" | 1/4" | |||
| 600D | l | l | l | ||
| 600DLB | l | l | l | ||
Magnetic Lock s and Accessories Cross Reference Guide (continued)
MODEL 1200S
1200 lbs Single Lock Recommended for exterior doors
MODEL 1200L
1200 lbs Single Lock with status LED Recommended for exterior doors
MODEL 1200LB
1200 lbs Single Lock with Bond Sensor, Door Status Sensor and LED Recommended for exterior doors
MODEL 1200D
1200 lbs Double Lock with Bond Sensor, Door Status Sensor and LED Recommended for exterior doors
MODEL 1200WP
1200 lbs Weatherproof Gate Lock
Recommended for exterior gates
1200 Series Maglocks
| L-Brackets | |||||
|---|---|---|---|---|---|
| AM6320 | AM6320C | AM6325 | AM3326 | ||
| 1200S | l | l | l | ||
| 1200D | |||||
| 1200DLB | l | l | l | l | |
| 1200L | l | l | l | l | |
| 1200WP | l | l | l | ||

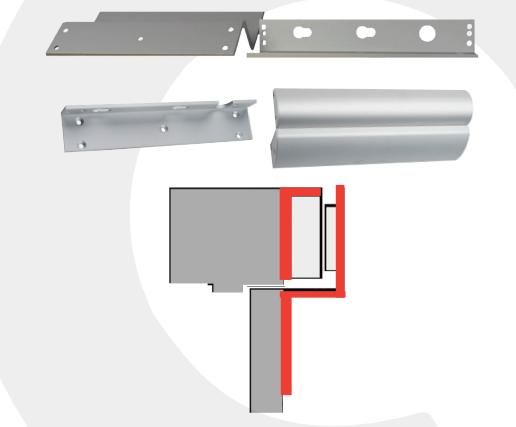

| Z-Brackets | |||||
|---|---|---|---|---|---|
| AM6370 | AM6370C | AM6375 | |||
| 1200S | l | l | |||
| 1200D | l | ||||
| 1200DLB | l | ||||
| 1200L | l | l | |||
| 1200WP | l | l | |||
| Drop Down Plates for Single Locks | |||||
|---|---|---|---|---|---|
|
AM6300
AM6305 AM6330 |
|||||
| 1/2" | 5/8" | 1/4" | |||
| 1200S | l | l | l | ||
| 1200L | l | l | l | ||
| 1200LB | l | l | l | ||
| 1200WP | l | l | l | ||
| Drop Down Plates for Double Locks | ||||||
|---|---|---|---|---|---|---|
|
AM6331
AM6332 AM6334 |
||||||
| 1/2" | 5/8" | 1/4" | ||||
| 1200D | l | l | l | |||
