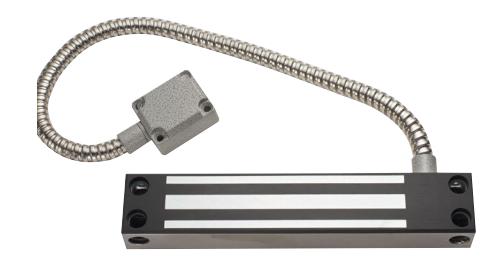

Model 600WP

600 lbs Weather-Proof Magnetic Gate Lock

Specifications

• • Up to 600 lbs holding force
• • Magnet size: 9-7/8" L x 1-11/16" H x 1" W
• • Armature size: 7-1/4" L x 1-7/16" H x 5/8" W
• • Operates on 12 or 24 VDC, selectable
• • Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC
• • Operating temperature: +14 to +131F [-10 to +55C]
• • 0.5" ID / 0.75" OD conduit fitting

Features

• • 12" color coded leads in armored cable with metal end cap
• • Ideal for sliding or swinging gates
• • Non-aluminum parts are plated to resist corrosion
• • Use 23/64" diameter drill for blind nuts provided with lock
• • Self drilling TEC screws
• • Completely sealed in stainless steel case
• • Limited lifetime warranty

Options

• • Gate mounting brackets are available
• • Available with 1200 lbs holding force. Order 1200WP

Models

600WP

600 lbs Weather-Proof Magnetic Lock, 12 or 24 VDC
