MODEL 600WP SPECIFICATIONS

ELECTRICAL SPECIFICATIONS

SUPPLY VOLTAGE: 12 OR 24 VOLTS DC

CURRENT DRAW: 440 MA. @ 12 VDC, 260 MA. @ 24 VDC

MECHNICAL SPECIFICATIONS

HOLDING FORCE: 600 POUNDS MINIMUM

HOUSING: STAINLESS STEEL

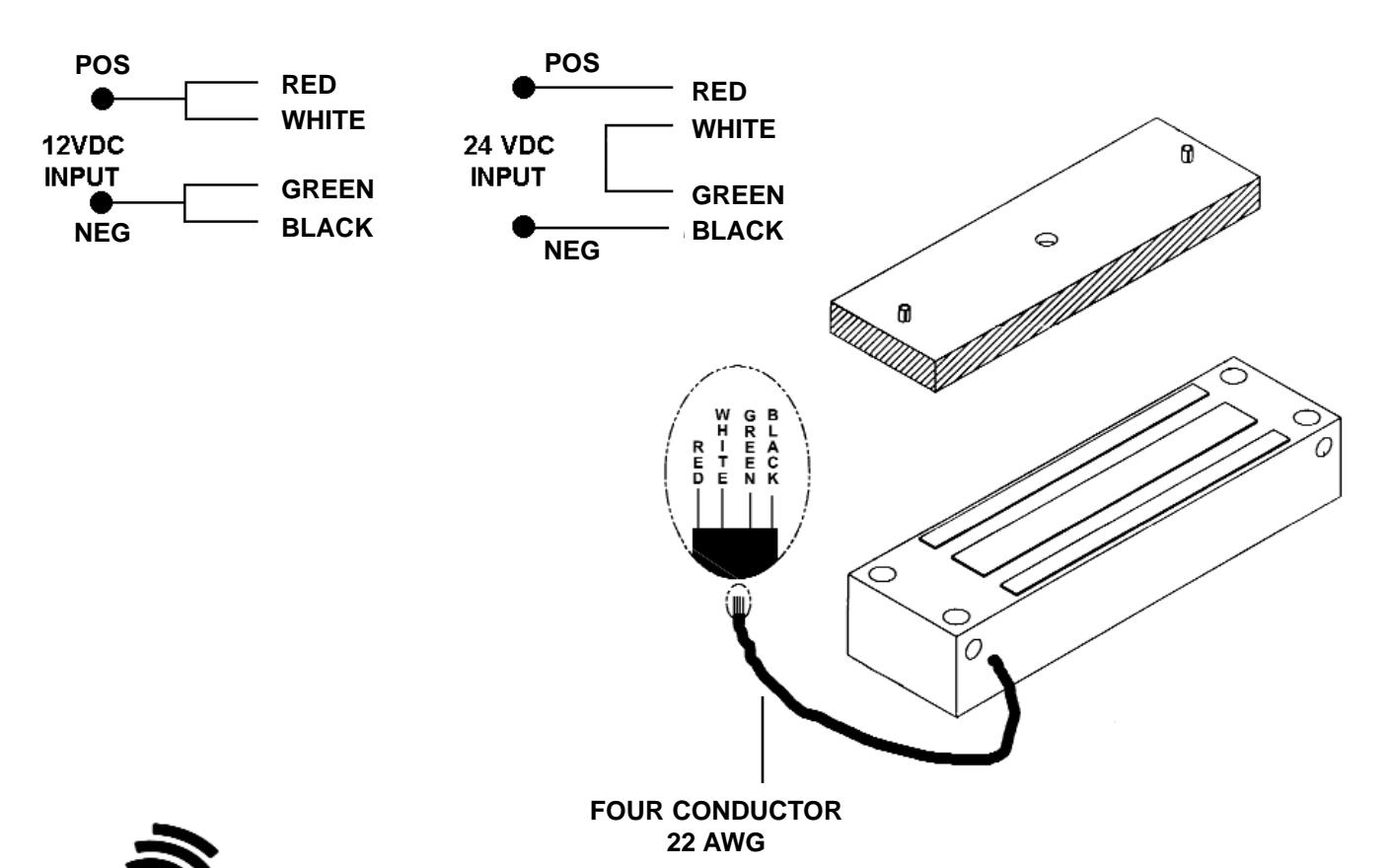

WIRING DIAGRAM

19 BRANDYWINE DRIVE P.O. BOX 280 DEER PARK, NY 11729 1 800 645-5538

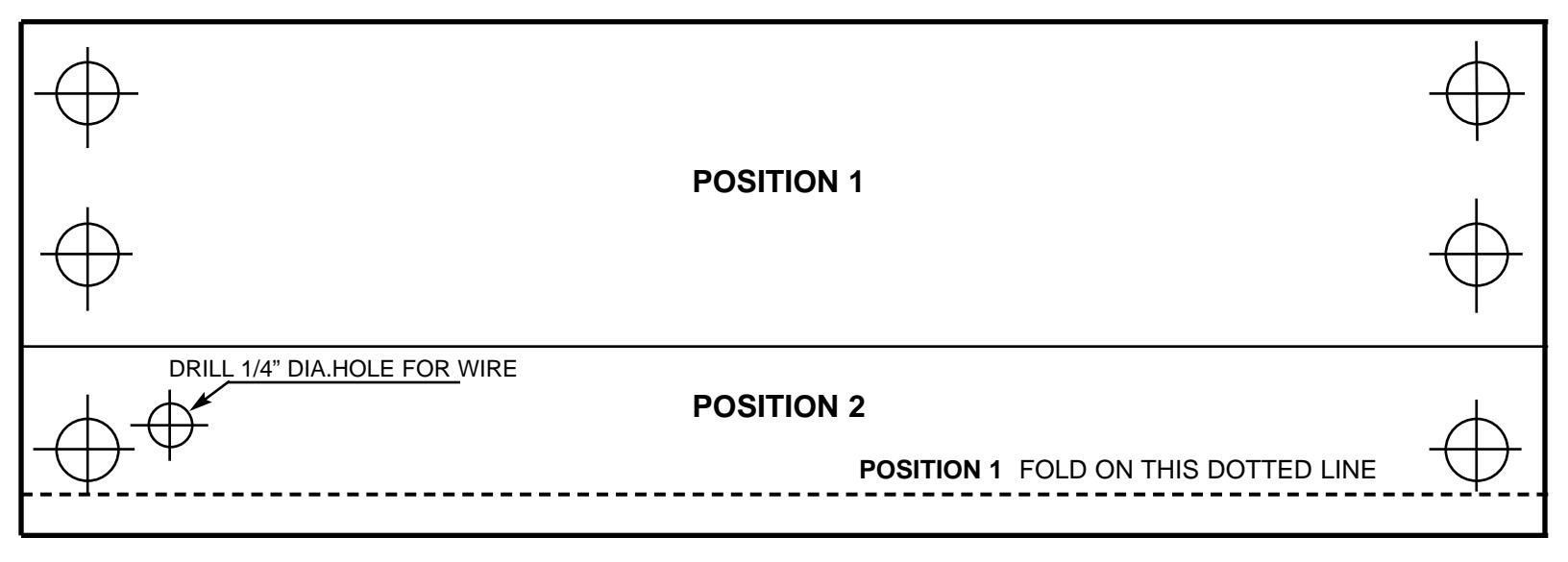

MODEL 600WP INSTALLATION TEMPLATE

POSITION 2 FOLD ON THIS DOTTED LINE

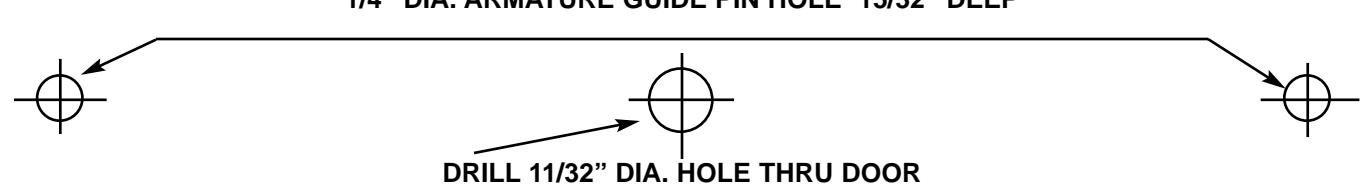

1/4" DIA. ARMATURE GUIDE PIN HOLE 15/32" DEEP

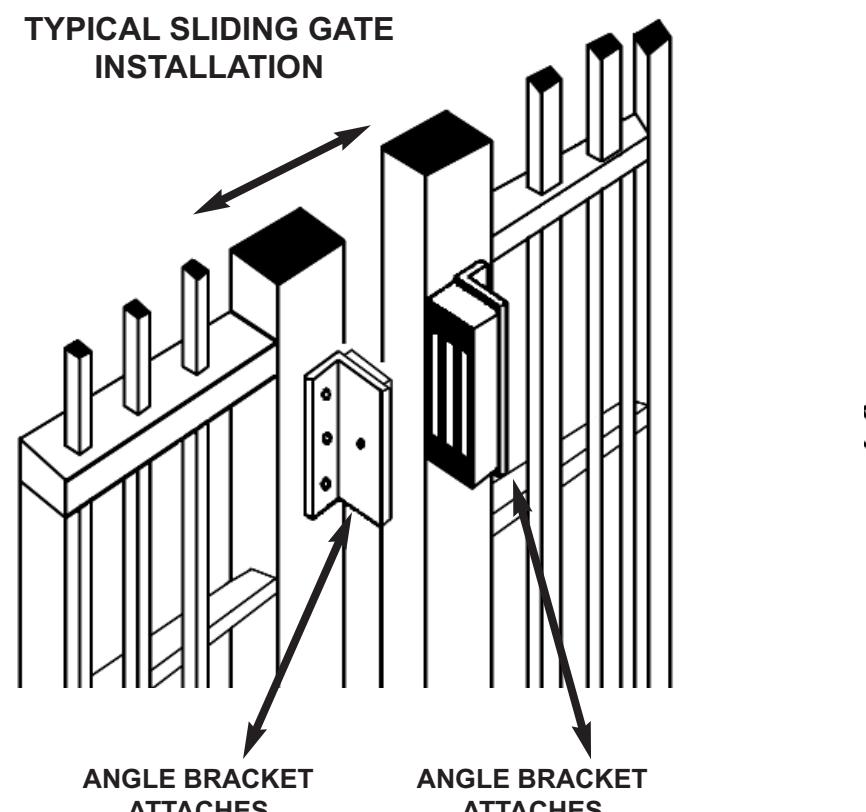

GATE LOCK INSTALLATION EXAMPLES

USE AM3370 BRACKET FOR MODEL 600WP USE AM6370 BRACKET FOR MODEL 1200WP

CONSULT FACTORY FOR CUSTOM BRACKETS

ATTACHES ARMATURE TO MOVING SECTION OF GATE

ATTACHES MAGNET TO STATIONARY SECTION OF GATE

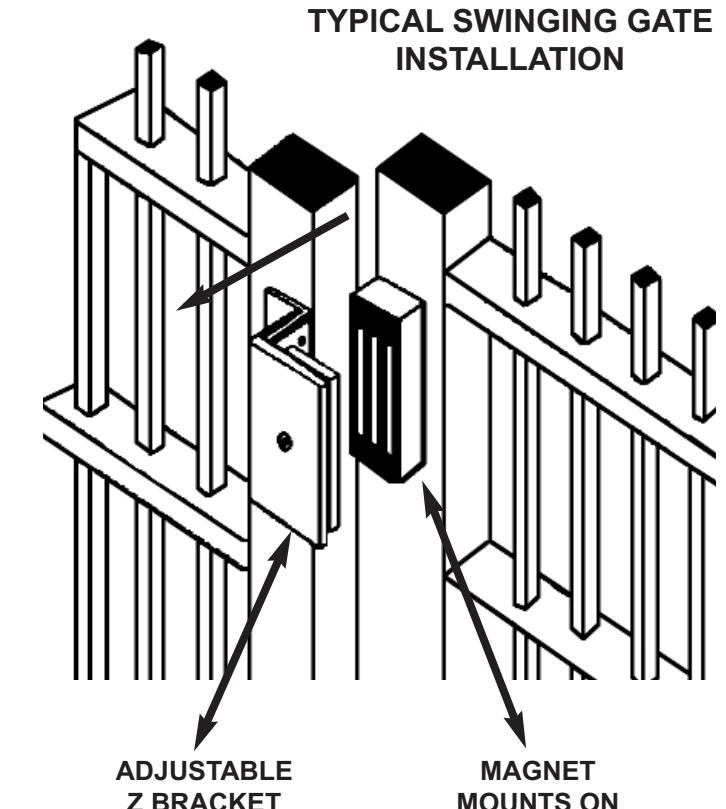

Z BRACKET ATTACHES ARMATURE TO MOVING SECTION OF GATE

MOUNTS ON STATIONARY SECTION OF GATE
