MODEL 1200WP SPECIFICATIONS

ELECTRICAL SPECIFICATIONS

Supply Voltage: 12 or 24 VDC Current Draw: 440 mA @ 12VDC

260 mA @ 24 VDC

MECHANICAL SPECIFICATIONS

Magnet Size: 9"L x 2-5/8"H x 1-5/8"W Armature Size: 7-1/2"L x 2-3/8"H x 9/16"W

Holding Force: 1200 Pounds Housing: Stainless Steel

Conduit Fitting: Internal thread 1/2", External thread 3/4"

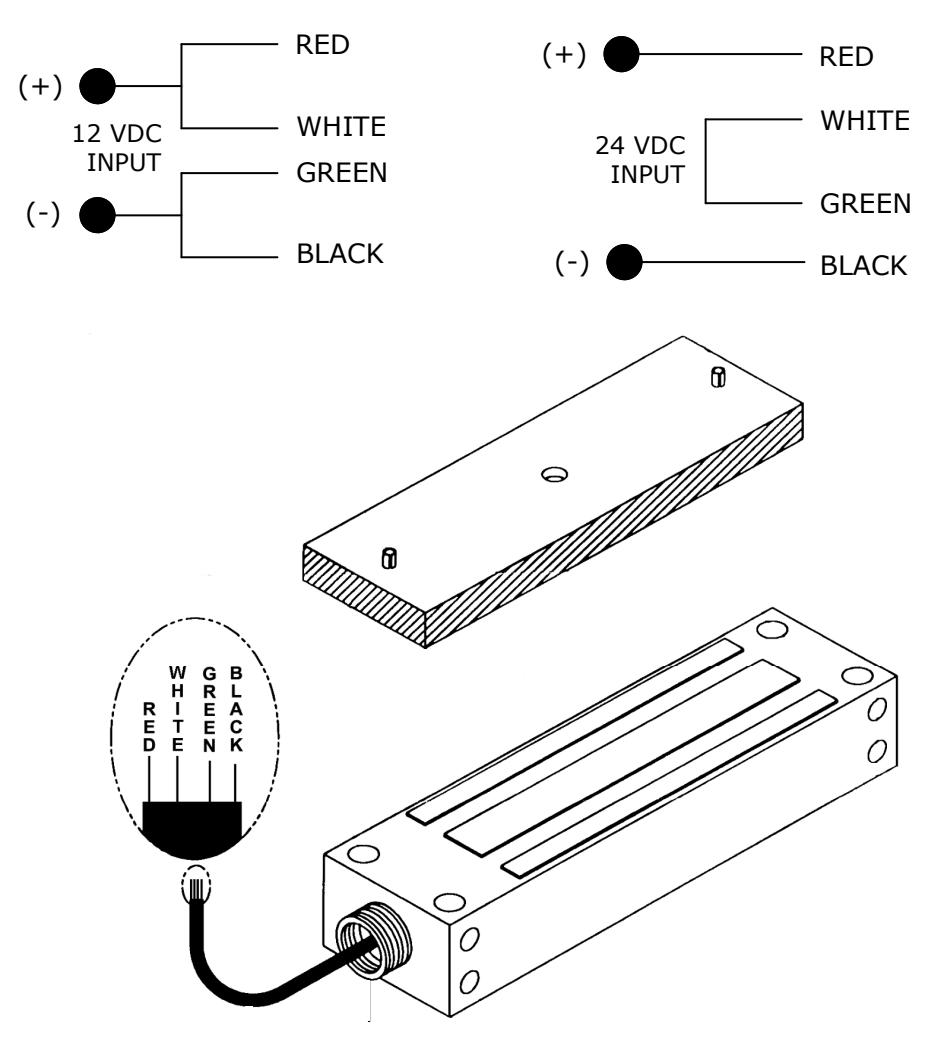

WIRING DIAGRAM

Alarm Controls Corporation Deer Park, New York 11729 (800) 645-5538 www.alarmcontrols.com

ASSA ABLOY, the global leader in door opening solutions

GATE LOCK INSTALLATION EXAMPLES

USE AM3370 BRACKET FOR MODEL 600WP USE AM6370 BRACKET FOR MODEL 1200WP

CONSULT FACTORY FOR CUSTOM BRACKETS

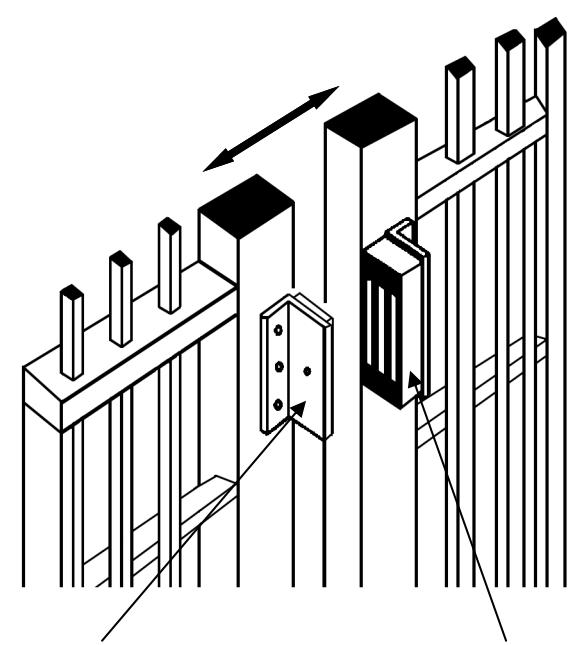

TYPICAL SLIDING GATE INSTALLATION

ANGLE BRACKET ATTACHES ARMATURE TO MOVING SECTION OF GATE

ANGLE BRACKET ATTACHES MAGNET TO STATIONARY SECTION OF GATE

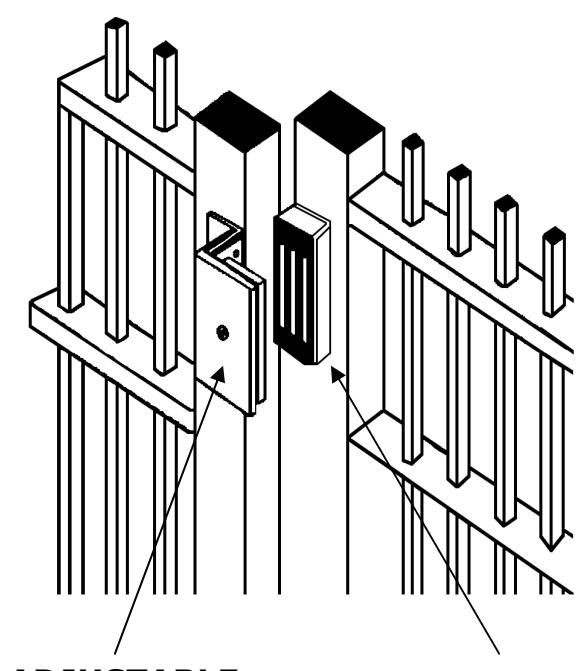

TYPICAL SWINGING GATE INSTALLATION

ADJUSTABLE Z BRACKET ATTACHES ARMATURE TO MOVING SECTION OF GATE

MAGNET MOUNTS ON STATIONARY SECTION OF GATE
