Alarm Controls Keyswitch Model KA-111 KA-111A Cutsheet

Open the original PDF document

View PDF

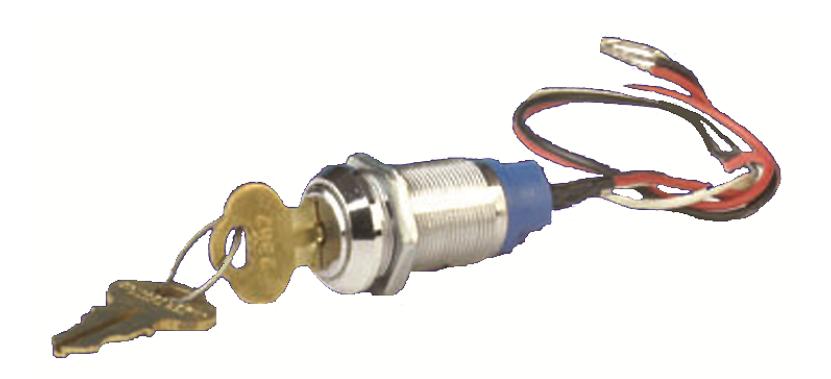

MODELS KA-111, KA-111A

KEYSWITCH

  • Double Bitted Flat Key Rotates 180°
  • SPDT Switch
  • Contact Rating 2 Amps @ 46 Volts DC, 2.5 Amps @ 120 Volts AC
  • Key Removable in the On or Off Position
  • KA-111 Keyed Different, KA-111A Keyed Alike
  • Supplied With Two Matching Keys
  • 8" Colored Leads (Red: Common, White: N/O, Black: N/C)

Alarm Controls 19 Brandywine Drive Deer Park, New York 11729 (800) 645-5538 www.alarmcontrols.com
