Alarm Controls Jumbo Push Plates Cutsheet
Open the original PDF document
View PDFJUMBO PUSH PLATES
REQUEST TO EXIT STATIONS

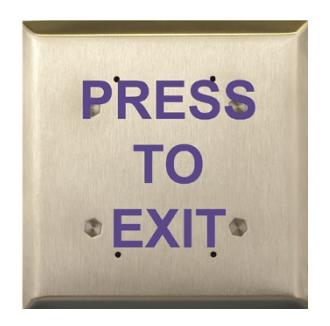

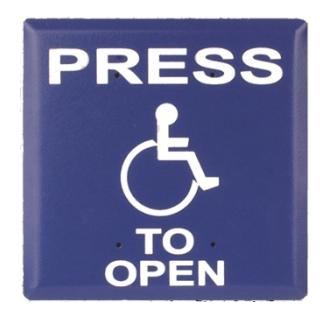

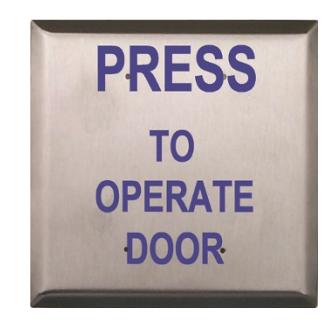

Model JP1 Model JP2 Model JP3
| Switch Type | JP1 Models | JP2 Models | JP3 Models |
|---|---|---|---|
| SPDT | JP1-1 | JP2-1 | JP3-1 |
| DPDT | JP1-2 | JP2-2 | JP3-2 |
|
Pneumatic Time Delay
2 to 60 Seconds |
JP1-5 | JP2-5 | JP3-5 |
- Heavy duty 5.5 inch square steel push plate
- Mounts on standard two gang electrical box
Non-pneumatic Model Specifications -
- Momentary action switch
- Contact rating: 4A @ 28VDC
- Temperature range -20°F to +150°F
- Depth behind plate is 1.5 inches
Pneumatic Model Specifications -
- Time delay operator does not require power for timing function.
- One Normally-Open contact pair and one Normally-Closed contact pair
- Contacts rated 10A @ 35VDC
- Time range settable between 2 and 60 seconds
- Switch time is repeatable ±10%
- Temperature range +15°F to +120°F
- Switch depth 2.25" behind plate
Alarm Controls 19 Brandywine Drive Deer Park, New York 11729 (800) 645-5538 www.alarmcontrols.com
