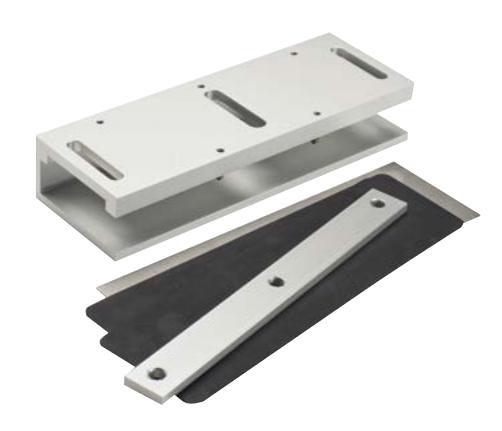

Model GDH

Glass Door Holder

Specifications

• • Size: 7-5/16" L x 1-3/8" W x 2-1/2" H
• • Minimum glass thickness: 1/2"
• • Maximum glass thickness: 5/8"
• • Minimum clearance between top of door and door header: 13/64"
• • Armature adjustment range: 1"

Features

• • Compression mounts armature on frameless glass doors
• • Used to mount armature on glass door

Options

• Clear anodized (US28) standard finish

Models

GDH

Glass Door Holder for 600 and 1200 lbs Magnetic Locks

ALARMCONTROLS
