Alarm Controls Foot Switch Model FT-1 Cutsheet

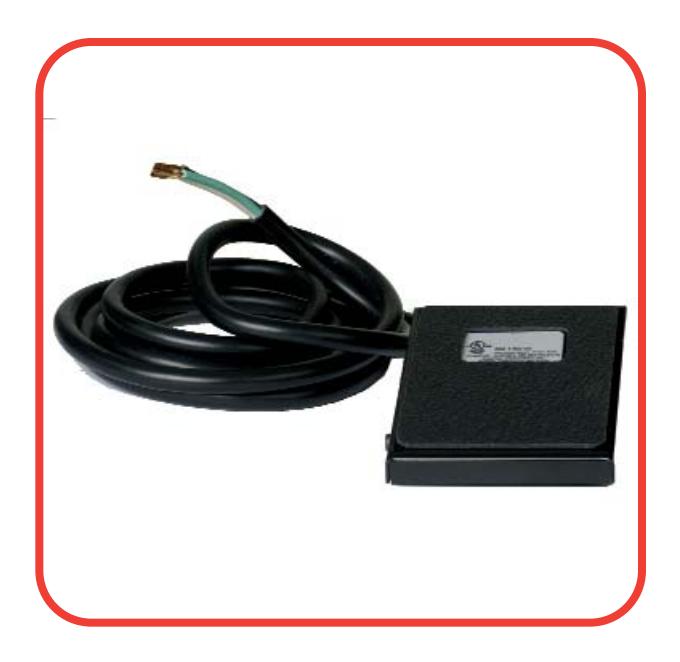

MODEL FT-1 FOOT SWITCH

SPECIFICATIONS

• - SINGLE POLE-DOUBLE THROW MOMENTARY CONTACTS
• - CONTACTS RATED 10 A. @ 125 VOLTS AC
• - FOOT SWITCH CONNECTED TO 5.5 FOOT CABLE
• - CONDUCTOR SIZE 18 GAGE STRANDED WIRE
• - SIZE: 2.75" W x 3.5" L x 1.25" TO .5" DEEP
• - U.L. AND CSA LISTED

19 BRANDYWINE DRIVE P.O. BOX 280 DEER PARK, NY 11729 1 631 586-4220 1 800 645-5538 WWW.ALARMCONTROLS.COM EMAIL INFO@ALARMCONTROLS.COM
