Alarm Controls Exit Device Model NTS-1 Installation Instructions

INSTALLATION INSTRUCTIONS MODEL NTS-1

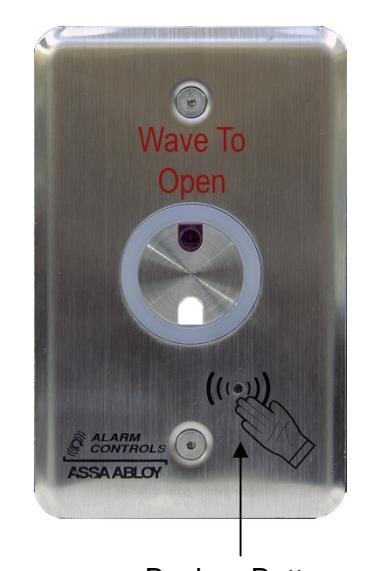

Backup Button (Use if motion detection fails to operate switch)

Specifications -

Input Voltage: 12-24 Volts DC

SPDT Contact Rating: 2A @ 30 Volts AC or DC

Sensor Detection Range: Up to approximately 4 inches

Operating Temperature: -25°C to +55°C

Current Draw: 50mA @12VDC, 65mA @ 24VDC

Operation -

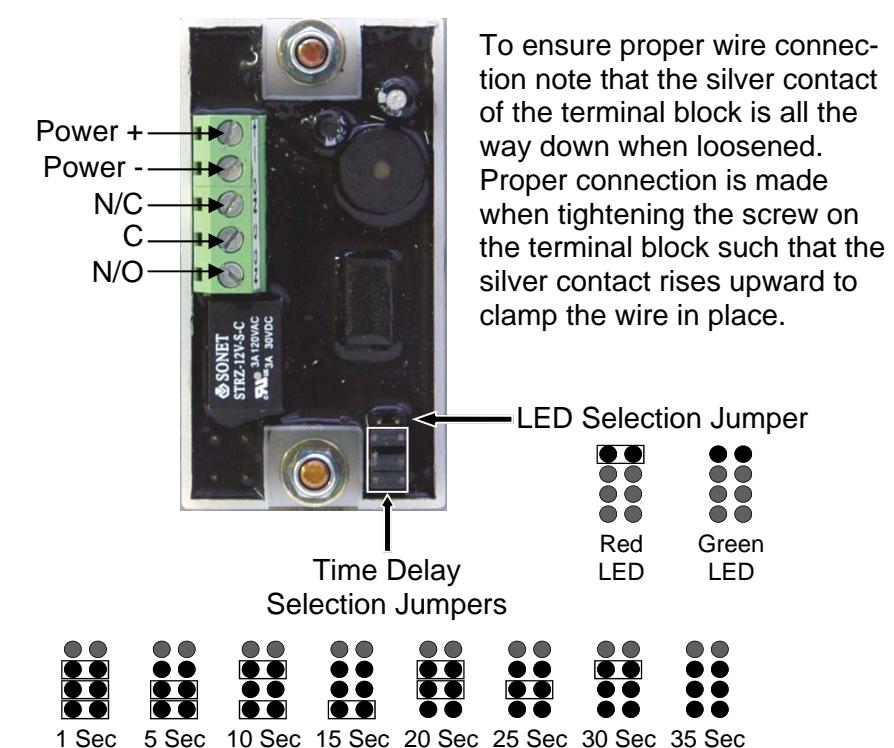

To operate the switch, make a slow waving motion with your hand within approximately 4 inches of the front of the plate. A tone will sound indicating that the relay has been activated. Switch relay will activate for the amount of time as set by the time delay jumpers.

The LED circle on the front of the plate can be set to either the color red (flashes green in 1 second intervals when relay is active) or green (flashes red in 1 second intervals when relay is active).

The Backup Button can be used if the motion detector fails to activate the relay.

Alarm Controls 19 Brandywine Drive Deer Park, New York 11729 (800) 645-5538 www.alarmcontrols.com
