INSTALLATION INSTRUCTIONS

MODEL 6131

ELECTRONIC SECURITY CONTROL

IMPRORTANT

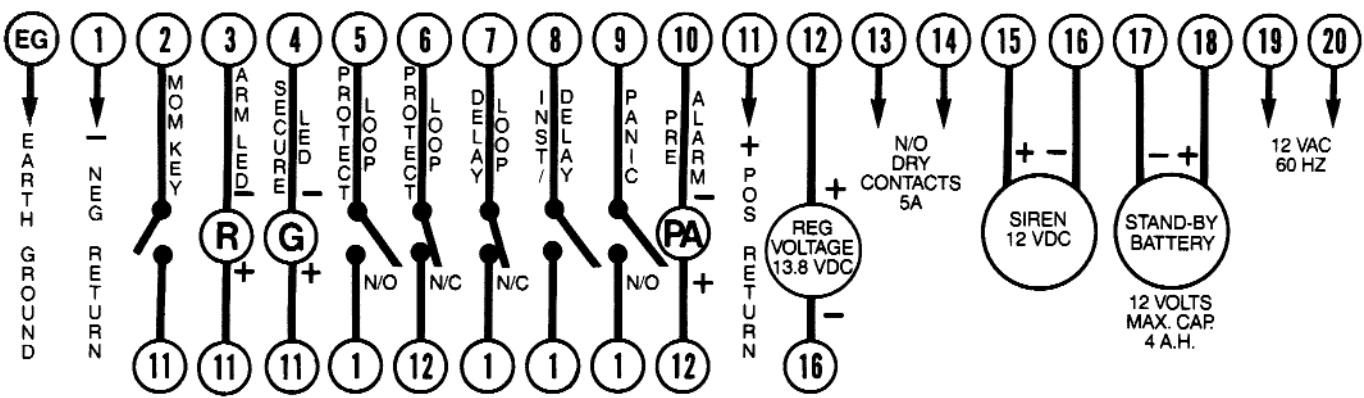

THIS CONTROL HAS EFFECTIVE LIGHTNING PRO-TECTION ONLY WHEN GROUNDED ACCORDING TO THE FOLLOWING INSTRUCTIONS-

CONNECT EARTH GROUND TERMINAL TO A COLD WATER PIPE WITH NOT LESS THAN 18 ga.SOLID WIRE OR TWO CONDUCTOR 19-8ga. STRANDED WIRE.CLEAN SURFACE OF PIPE AND SECURE WITH A SUITABLE CLAMP.

DO NOT GROUND TO A GAS PIPE OR THE BUILD-INGS ELECTRICAL GROUND.

CUT JUMPER

J1 (GREEN) FOR DRY CELL BATTERY J3 (BLUE) FOR FAST LOOP

BELL CUT-OFF TIME

THE BELL CUT-OFF TIME IS ADJUSTABLE FROM 2 TO 15 MINUTES.THE TIME IS ADJUSTED BY THE POTENTIOMETER LOCATED TO THE RIGHT OF THE ENTRY POTENTIOMETER.TURNING THE ADJUST-MENT WHEEL UP WILL INCRESE THE BELL CUT-OFF TIME.TURNING THE WHEEL DOWN WILL DECRESE THE CUT-OFF TIME .

PROCEDURE FOR ADJUSTING ENTRY/EXIT TIME

ENTRY AND EXIT TIME IS ADJUSTED BY TWO POTENTIOMETERS LOCATED IN THE UPPER CENTER OF THE CONTROL PANEL.TIME IS INCREASED BY ROTATING ADJUSTMENT WHEELS TOWARD TOP OF CONTROL PANEL.(UP).EACH 1/4 TURN OF ADJUSTMENT WHEEL WILL INCREASE TIME BY 15 SECONDS.ADJUSTMENT RANGE IS: 5 TO 60 SECONDS.

TO SET ENTRY TIME

TURN EXIT ADJUSTMENT TO MINIMUM(DOWN), THEN TURN ENTRY ADJUSTMENT 1/4 TURN (UP).ARM CONTROL WAIT UNTIL EXIT TIME EXPIRES, OPEN DELAY DOOR,PRE-ALARM SIGNAL STOPS AND CONTROL TRIPS, THIS IS THE ENTRY TIME.DIS-ARM CONTROL.IF MORE ENTRY TIME IS REQUIRED ADVANCE ADJUSTMENT ACCORDINGLY.

TO SET EXIT TIME

TURN EXIT ADJUSTMENT TO MINIMUM(DOWN), THEN TURN ADJUSTMENT 1/4 TURN(UP).ARM CONTROL WITH DELAY DOOR CLOSED.OPEN DELAY DOOR, WHEN PRE-ALARM SIGNAL SOUNDS, THIS IS THE EXIT TIME.DIS-ARM CONTROL, IF MORE TIME IS REQUIRED ADVANCE EXIT ADJUSTMENT ACCORDINGLY.

WARRANTY

THIS EQUIPMENT MANUFACTURED BY THE SELLER , (ALARM CONTROLS CORPORATION), IS GUARANTEED TO BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP UNDER NORMAL USE AND SERVICE WHEN INSTALLED IN ACCORDANCE WITH THE SELLER'S INSTALLATION INSTRUCTIONS.THE SELLER WARRANTS TO REPLACE OR REPAIR, FREE OF CHARGE, ANY EQUIPMENT COVERED BY THIS WARRANTY WHICH HAS BEEN RETURNED TO THE FACTORY, TRANSPORTATION PREPAID, WITHIN ONE YEAR FROM RECEIPT OF THE EQUIPMENT AT ORIGINAL DESTINATION, AND WHICH IN THE SOLE JUDGEMENT OF THE SELLER IS DEFECTIVE IN MATERIAL OR WORKMAN-SHIP.ANY MISUSE, MODIFICATION OR ADJUSTMENT ON THE EQUIPMENT BY ANY PERSON OTHER THAN AN AUTHORIZED REPRESENTATIVE OF THE SELLER SHALL VOID THE WARRANTY. THIS WARRANTY IS LIMITED ONLY TO THOSE PRODUCTS MANUFACTURED BY ALARM CONTROLS CORPORATION.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE OR USE, AND IN NO EVENT SHALL SELLER BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES AS SAME ARE DEFINED IN THE UNI-FORM COMMERCIAL CODE.

ALARM CONTROLS CORPORATION

19 BRANDYWINE DRIVE P.O. BOX 280 DEER PARK, NEW YORK 11729 PHONE 1 800 645-5538 FAX 1 631 586-6500
