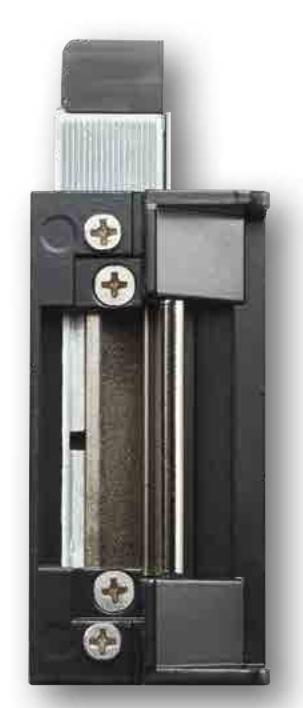

AES-100 Electric Strike

Designed for heavy-duty applications, the all-in-one AES-100 offers dual voltage and field selectable fail secure/fail safe operation. Deep latch cavity accommodates cylindrical locksets with a 5/8" to 3/4" throw in steel, wood or aluminum frames.

Specifications

BHMA Grade 1, 1,500 lb. static strength
Factory tested to 500,000 cycles
UL 1034 Burglary resistant
Field selectable, fail secure/fail safe
Dual voltage 12/24VAC or VDC
Strike Depth 1-1/2"
Fully reversible for right or left hand doors

Electric strike kit includes:
- AES-100 strike body
- 4 7/8" round corner faceplate
- 4 7/8" square corner faceplate
7-15/16" round corner faceplate available.
- Model number STR00004
Current draw: 12VAC @ 130mA, 24VAC @ 70mA
Current draw: 12VDC @ 210mA, 24VDC @ 105mA
