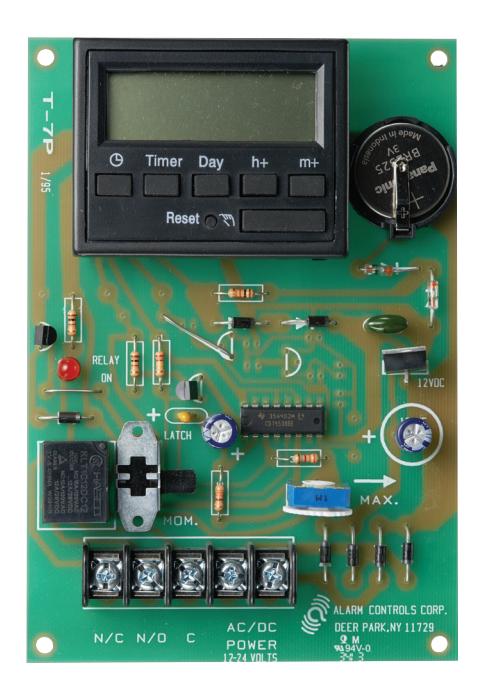

Model T-7P

Digital Timer

Specifications

• • Size: 4" x 5-1/4"
• • Voltage range: 12 to 24 VAC or VDC
• • Current Draw: 8 mA idle, 40 mA relay energized
• • Contact rating: 10A at 35 VDC or 125 VAC
• • Temperature rating: -13 to +158F [-25 to +70C]
• • Relay contacts: SPDT
• • Programs: 8 "ON" & 8 "OFF" times per day, a total of 42 events

Features

• • Relay operating mode: latching or momentary
• • Momentary relay on time: adjustable from 1 second to 3 minutes
• • Time base: quartz stabilized
• • Accuracy: plus or minus 1 second per day
• • Memory backup: lithium battery (60 hour duration)
• • Clock format: 12 hours standard (24 hours available)
• • Mounting: adhesive foam tape, 4 holes

Models

T-7P

7 Day Programmable Digital Multi-Event Timer, 12 to 24 VDC/VAC
