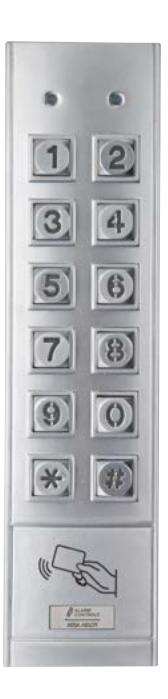

Model KP-300

Mullion Mount Vandal-Resistant Weather-Proof Digital Keypad with Built-In Card Reader

Specifications

• • Operates on 12 VDC nominal, 11-15 VDC, operating current 95 mA
• • Output 1: capacity of 1000 user codes and /or cards
• • Output 2: capacity of 100 user codes and/or cards
• • Die cast metal keys with audible and visible key press
• • IP65 housing
• • Operating temperature: -4 to +158F [-20 to +70C]

• • LEDs indicate keypad status
• • Operate with card only, user code and card, or user code only
• • Two programmable SPDT relay outputs
• • 50 visitor codes, programmable for one time use or with time limit
• • Fully programmable from the keypad
• • Keys are backlit for visibility in dark areas
• • Three year warranty

Features

• • Supplied with 2 EM cards
• • Built-in tamper switch, built-in buzzer
• • Heavy die cast surface mount housing with brushed 302 stainless steel faceplate

Options

• Supplied with 2 EM Cards. Model EM-10 is a package of 10 additional cards

Models

KP-300 Mullion Mount Keypad with Card Reader
