Model DTC

DESKTOP CONTROL CONSOLE

M1 CONSOLE

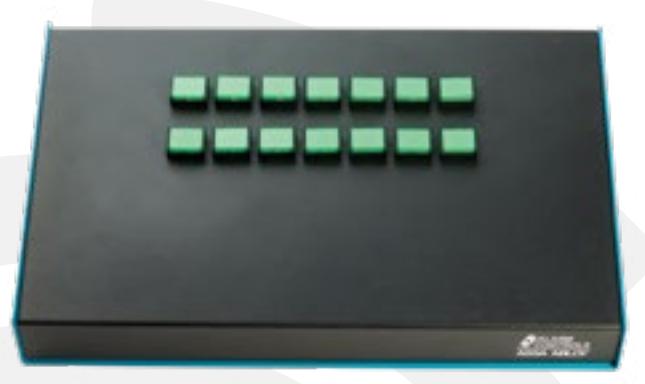

M2 CONSOLE

M3 CONSOLE

CONSOLE SWITCH SWITCH CONSOLE COLOR QUANTITY SWITCH TYPE COLOR ILLUMINATION М1 G NUMBER G N OF 1-2 BEIGE SPDT MOMENTARY ACTION GREEN NONE SWITCHES SWITCHES K V1 R В REQUIRED BLACK RED SPDT ALTERNATE ACTION 12VDC М2 3-12 Y V2 SWITCHES YELLOW 24VDC DPDT MOMENTARY ACTION М3 В DPDT ALTERNATE ACTION BLUE 13-40 SWITCHES W WHITE DTC- M2 V1 6

Part Number Example

For a Black Console with 6 SPDT Green Momentary Switches and 12VDC Illumination For consoles that require multiple switch colors, multiple switch types or custom labeling, please contact us so that we may generate a custom part number for your requirement.

Specifications

Contact Rating	3A @ 24VDC
LED Current Draw	. 9mA nominal
Switch Size	0.625" x 0.875"
Switches terminated in 2
Common
Normally Closed	Red
Normally Open	. Blue
LED+	. Yellow
LED	Black

Console Size

M1	3.3" x 5.7" x 1.5"H
M2	6.9" x 4.9" x 2.5"
M3	14" x 8.3" x 3" (rear height) 14" x 8.3" x 1.5" (front height)
	14 X O.S X I.S (IIOIILIIEIGIII)

Button lenses can be removed to allow a printed transparency to be placed underneath for button labels.
