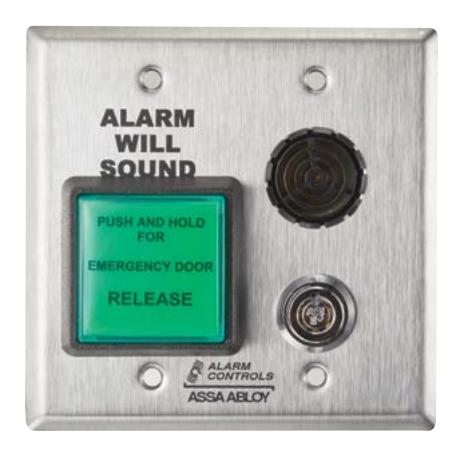

Model DE-1

Delayed Egress Timer

Specifications

• • Contacts rated 5A at 35 VDC
• • Operates on 12 or 24 VDC
• • SPDT instant contacts for remote alarm signal
• • SPDT timed contacts for unlocking door

Features

• • Mounted on double gang stainless steel wall plate
• • 2 second nuisance delay (standard), 1 and 3 second nuisance delay option available
• • Keyswitch reset and relock (optional auto reset)
• • Countdown buzzer and flashing lamp during timing mode
• • Hi-brightness built in LED lamp

Models

DE-1

Two Second Nuisance Delay, SPDT Timed Contacts, Key Switch Reset and Re-Lock, 12 or 24 VDC, Countdown Buzzer and Flashing Lamp During Timing Mode, Mounted on Double Gang Stainless Steel Plate
