High Current Relay

Models 3012 and 3024

Specifications Options

• Size: 1-1/4" x 1-3/4" x 3"
• Operates on 12 VAC or VDC, current draw 60 mA
• Contact arrangement SPDT, 1 for C, Contact rating 30A at 28 VDC or 120 VAC

• 1-1/2" Snap T

• 1-1/2" Snap Trac mounting

Features

• Rugged construction, vibration resistant relay assembly
• Five position terminal block
• Red LED indicates when coil is energized
• Double sided tape is supplied for mounting

Models

3012

High Current Relay, 30A Continuous Contacts, SPDT, 12V VDC/VAC Coil

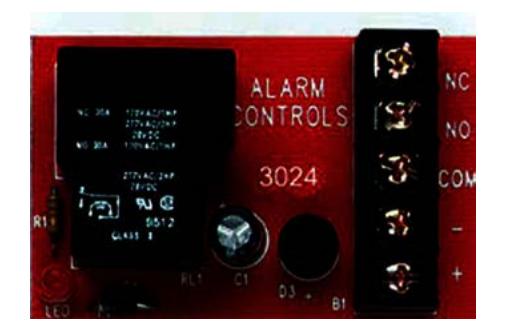

3024

High Current Relay, 30A Continuous Contacts, SPDT, 24V VDC/VAC Coil
