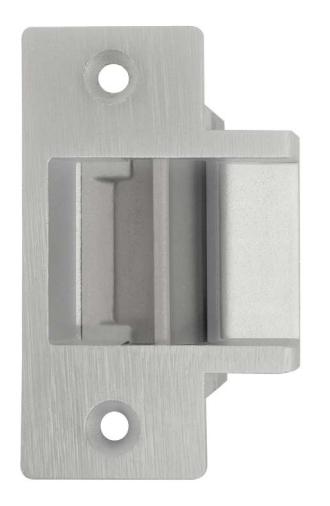

Model AES-300

1000lb Electric Strike

Specifications

• ANSI/BHMA Grade 2
• Strike body depth 1-1/2"

Features:

• For use with cylindrical locksets
• Non-handed Horizontally adjustable
• Factory tested to 500,000 cycles
• Accepts locksets with a latch up to 5/8" throw without a deadbolt

Applications:

Hollow Metal, Aluminum or Wood Frames

Holding Force:

• 1,000 lbs (static strength)
• 50 ft.-lbs (dynamic strength)

Electrical:

• Available in either 12V or 24V models
• 200mA @ 12V AC/DC
• 100mA @ 24V AC/DC

Accessories:

Spacers and keeper shims for adjustability

AC-014-0418
