From Door Station ... to Master Station

Security and Convenience in One Package

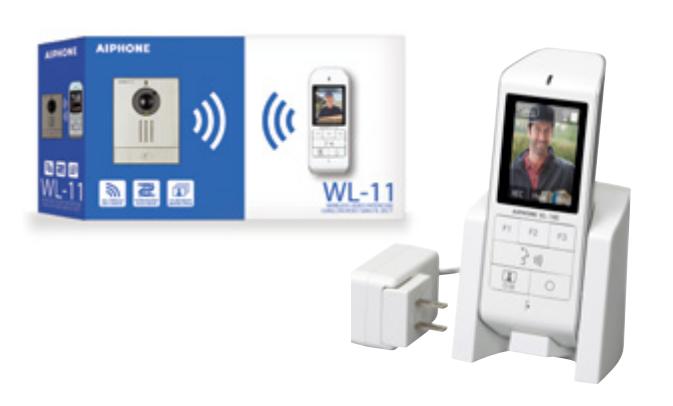

The hassle-free WL-11 Wireless Video Intercom offers easy installation and operation for your residence. The WL-11 is DECT wireless, so no wiring is needed.

The 1.9 GHz band frequency enables you to receive calls from the door without interference from home appliances on other frequencies. The automatic recording feature also records 3 images per call, for up to 100 calls.

Specifications

Video Door Station (WL-DA)

Power Supply: 6 x AA size batteries (Ni-MH batteries with 2500mAh) Operation Temperature: 14° to 122° F (-10° to +50° C )

Dimensions: 5-1/8 (H) x 3-15/16 (W) x 1-3/8 (D) inches Weight: Approximately 7.75 oz (220g) without batteries

Master Station (WL-1ME)

Power Supply: Included Ni-MH battery (Model: WLW-BT.E) 2.4V DC (@2000mAh)

Display: 2.4 inch TFT color LCD monitor (240 x 320 pixels) Operation Temperature: 32° to 104° F (0° to 40° C) Dimensions: 5-9/10 (H) x 2-1/4 (W) x 1-1/16 (D) inches

Hand Held Dimensions: 5- 13/16 (H) x 2- 1/4 (W) x 1-1/16 (D) inches

Weight: Approximately 6 oz (170g) including batteries
