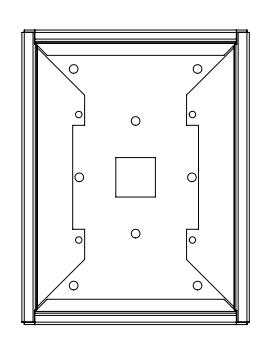

SBX-NVP/A

Surface Mount Box

-INSTRUCTIONS-

The SBX-NVP/A is a white powder coated steel enclosure designed to surface mount Aiphone's 3-gang flush mount door stations. Compatible with the LS-NVP/C.

CONTENTS:

- SBX-NVP/A surface mount box

MOUNTING INSTRUCTIONS:

• 1. The SBX-NVP/A is designed to mount to a 1-gang box, ring, or to any flat surface.
• 2. Pass cable through the hole on back or conduit knockout on bottom.
• 3. Secure mounting box to wall.
• 4. Connect wires to door station (Refer to system's installation instructions).
• 5. Attach door station to mounting box using the tamper proof screws and tool supplied with the intercom.

LS-NVP/C

SPECIFICATIONS:

Mounting: 1-gang box or surface mount directly to wall

Material: Powder Coated Steel

Color: White

Dimensions (Vertical): 8-⅝" H x 6-⅝" W x 2-¾" D

Interior depth: 2-¼"
