Stainless Steel Security Lock Box

For Video Door Stations with embedded prox readers or access keypads

- INSTRUCTIONS -

The SBX-LSP is an 18-Gauge stainless steel lockable enclosure designed to give the video door station added protection during non-business hours. This enclosure is designed to be mounted with the following model Aiphone units: AX-DVF-P, JF-DVF-HID, JF-DVF-HID-I, JK-DVF-HID, and JK-DVF-AC.

CONTENTS:

• SBX-LSP Enclosure
• "L" bracket (for securing in open position)
• Instructions

MOUNTING INSTRUCTIONS:

• 1. Install flush mount back box per door station's standard instructions.
• 2. Pass door station wiring through the center of the SBX-LSP and attach to door station.
• 3. Secure the SBX-LSP and door station to the flush mount back box using the security screws supplied with door station.
• 4. Align and install the "L" bracket to the wall to lock the cover in the open position while the system is in use.
• 5. When the system is not in use, lock in the cover in the closed position.

NOTE: Customer is to provide a security lock of their choosing to lock the panel in the closed or open position.

SPECIFICATIONS:

Material: 18-Gauge Stainless Steel Color: Polished Stainless Steel

Dimensions (HxWxD):

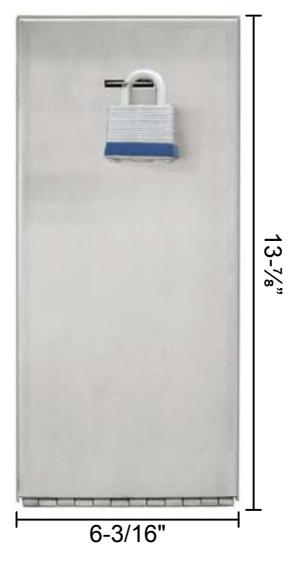

Closed- 13-⅞" x 6-3/16" x 15/16" Open- 25-¾" x 6-3/16" x 13/16"

Interior Depth: ¾"

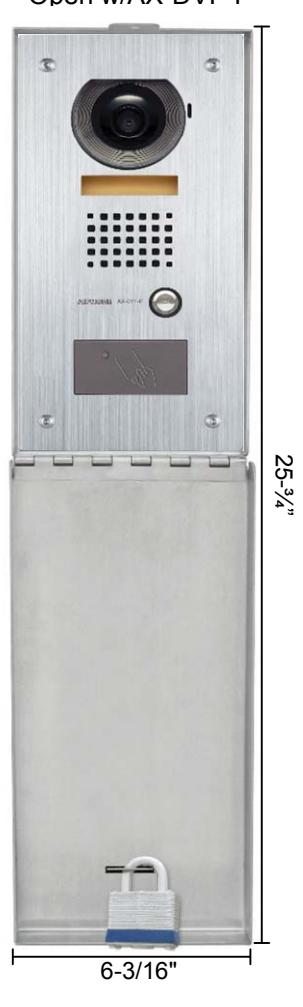

SBX-LSP Open w/AX-DVF-P
