SBX-IXDV30

Stainless Steel 30° Angle Box for the IX-DV

-INSTRUCTIONS-

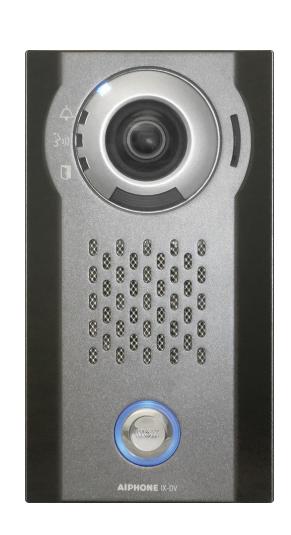

The SBX-IXDV30 is an 16-Gauge stainless steel surface mount 30° box designed for angle mounting the IX-DV video door station. This is applicable for wide or double door entrances where the door station needs to be mounted off to either side of the door, and provides a better viewing angle for the camera.

CONTENTS:

• SBX-IXDV30 Surface mount 30° angle box
• 4 machine screws

MOUNTING INSTRUCTIONS:

• 1. The SBX-IXDV30 is designed to mount to a 1-gang box or ring, or to any flat surface.
• 2. Pass cable through the rear opening.
• 3. Secure mounting box to wall.
• 4. Connect Cat-5e/Cat-6 cable and option connectors to IX-DV. (Refer to station's installation instructions.)
• 5. Attach video door station to mounting box using supplied machine screws.
• 6. Remove the front case of the IX-DV (Security tool supplied with the door station). Mount the camera unit to the angle box with the supplied screws. Reattach the front case to the unit.

SPECIFICATIONS:

Mounting: 1-gang box, or surface mount directly to wall surface

Material: 16-Gauge Stainless Steel Color: Polished Stainless Steel

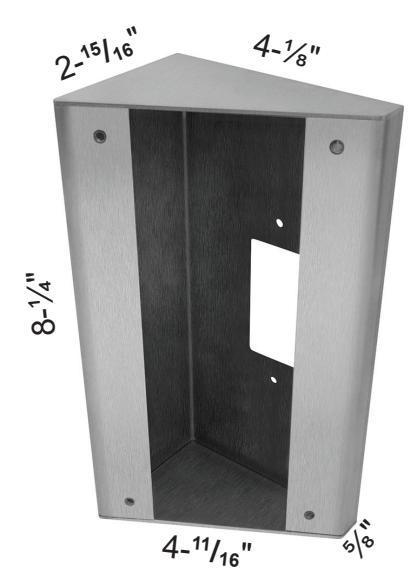

Dimensions: 8-¼" H x 4-⅛" W x 2- ¹⁵ ⁄16 " D (high side); ⅝" D (low side)
