SBX-ISDVFP

Stainless Steel Surface Mount Box

-INSTRUCTIONS-

The SBX-ISDVFP is an 18-Gauge stainless steel enclosure designed for surface mounting the IS prox and multiCLASS reader door stations.

Compatible with the IS-IPDVF-HID, IS-DVF-HID, IS-DVF-RP10, and IS-IP4DVF

CONTENTS:

• SBX-ISDVFP surface mount box
• #15 Torx Security 1/4" Hex bit
• Qty 4. 8/32 x 1" Torx Security Screws
• Qty 4. 8/32 Speed Nuts

MOUNTING INSTRUCTIONS:

• 1. The SBX-ISDVFP is designed to mount to a 1 or 2-gang box, ring, or to any flat surface.
• 2. Pass cable through the knockout hole.
• 3. Secure mounting box to wall.
• 4. Connect wires to IS door station. (Refer to system's installation instructions).

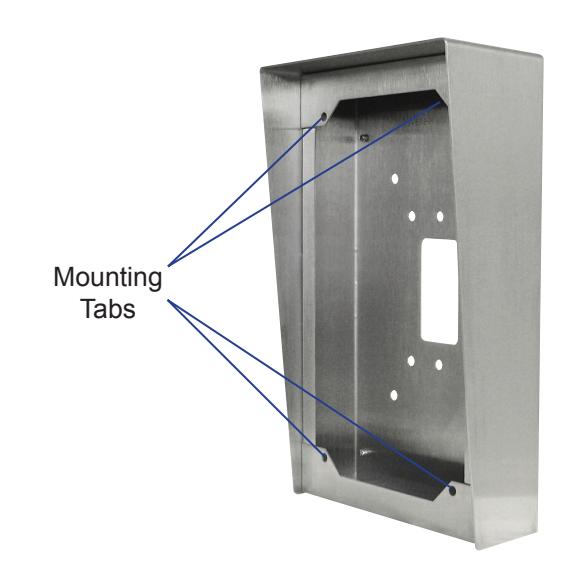

• 5. Connect supplied speed nuts to mounting tabs. (4 total)
• 6. Attach door station to mounting box using the tamper proof screws and tool supplied with this box.

SPECIFICATIONS:

Mounting: 1 or 2-gang box, or surface mount directly to wall

Material: 18-Gauge Stainless Steel Color: Polished Stainless Steel

Dimensions (HxWxD): 12-7/16" x 7-1/16" x 2-13/16" (top); 1-13/16" (bottom)

Interior depth: 1-5/8"

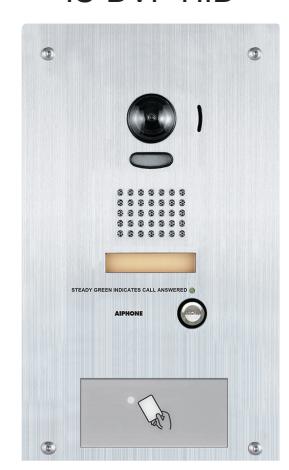

IS-DVF-HID
