SBX-IDVFRA

Stainless Steel Surface Mount Box

-INSTRUCTIONS-

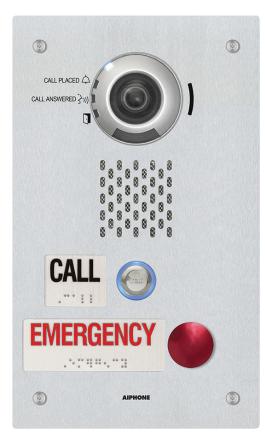

The SBX-IDVFRA is an 18-Gauge stainless steel enclosure designed to surface mount the IS and IX Series emergency stations as well as the IX Series and JP Series card access door stations. Compatible stations: IS-DVF-2RA, IX-DVF-2RA, IX-DVF-RA, IX-SSA-2RA, IX-SSA-RA, IX-DVF-P, JP-DVF-HID, and JP-DVF-RP10.

CONTENTS:

• SBX-IDVFRA surface mount box
• #15 Torx Security ¼" Hex bit
• Qty 4. ⁸ ⁄32 x 1" Torx Security Screws
• Qty 4. ⁸ ⁄32 Speed Nuts

MOUNTING INSTRUCTIONS:

• 1. The SBX-IDVFRA is designed to mount to a 1 or 2-gang box, ring, or to any flat surface.
• 2. Pass cable through the knockout hole on back or conduit knockout on bottom.
• 3. Secure mounting box to wall.
• 4. Connect wires to door station (Refer to system's installation instructions).

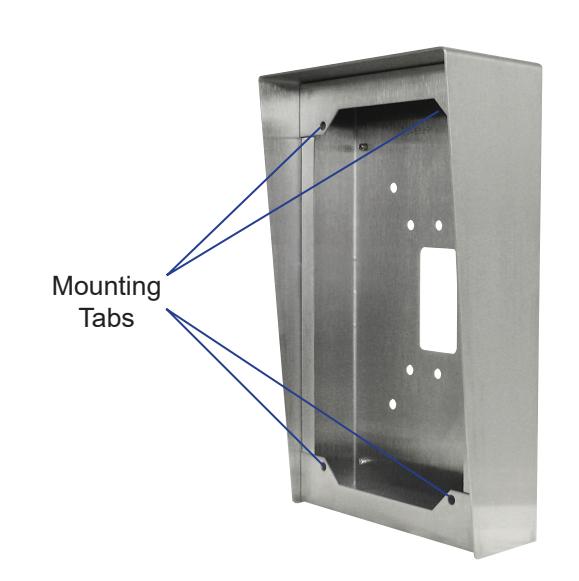

• 5. Connect supplied speed nuts to mounting tabs (4 total).
• 6. Attach door station to mounting box using the tamper proof screws and tool supplied with this box.

SPECIFICATIONS:

Mounting: 1 or 2-gang box, or surface mount directly to wall

Material: 18-Gauge Stainless Steel Color: Polished Stainless Steel

Dimensions (HxWxD): 11- ¹¹ ⁄16 " x 7" x 3- ⁵ ⁄16 " (top); 2- ⁵ ⁄16 " (bottom)

Interior depth: 2-⅛"

IX-DVF-2RA
