SBX-GTDMB

Stainless Steel Surface Mount Box for GT-DMB-N

-INSTRUCTIONS-

The SBX-GTDMB is an stainless steel enclosure designed for surface mounting the GT-DMB-N All-in-One entry panel.

CONTENTS:

• SBX-GTDMB surface mount box
• #15 Torx Security 1/4" Hex bit
• Qty 4 8/32 x 1" Torx Security Screws
• Qty 4 8/32 Speed Nuts

MOUNTING INSTRUCTIONS:

• 1. The SBX-GTDMB is designed to mount to a 1 or 2-gang box/ring or to any flat surface.
• 2. Pass cable through the knockout hole. A 7/8ꞌꞌ conduit knockout is provided for running conduit directly to the bottom of the unit.
• 3. Secure mounting box to wall.
• 4. Connect wires to GT-DMB-N entry station. (Refer to GT system's installation instructions).

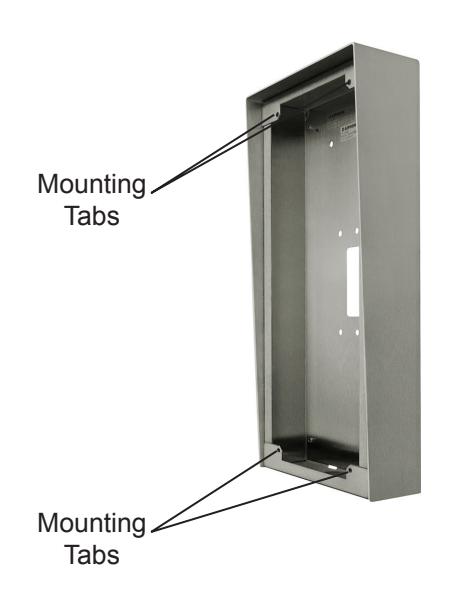

• 5. Connect supplied speed nuts to mounting tabs. (4 total)
• 6. Attach entry station to mounting box using the tamper proof screws and tool supplied with this box.

SPECIFICATIONS:

Mounting: 1 or 2-gang box, or surface mount directly to wall Material: Stainless steel.18-gauge (box), 16-gauge (hood)

Color: Polished Stainless Steel

Dimensions (HxWxD): 12-11/16ꞌꞌ x 6-1/16ꞌꞌ x 2-½ꞌꞌ (top); 2ꞌꞌ (bottom)

Interior depth: 1-3/4ꞌꞌ

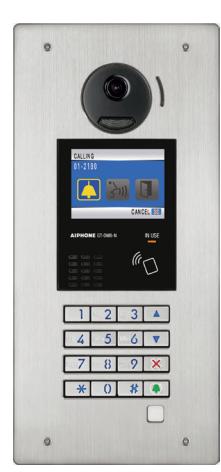

GT-DMB-N
