SBX-GTDM

Stainless Steel Surface Mount Box for GT-DM

-INSTRUCTIONS-

The SBX-GTDM is an 16-Gauge stainless steel enclosure designed for surface mounting the GT-DM All-in-One entry panel.

CONTENTS:

• SBX-GTDM surface mount box
• #15 Torx Security 1/4" Hex bit
• Qty 4. 8/32 x 1" Torx Security Screws
• Qty 4. 8/32 Speed Nuts

MOUNTING INSTRUCTIONS:

• 1. The SBX-GTDM is designed to mount to a 1 or 2-gang box/ring or to any flat surface.
• 2. Pass cable through the knockout hole.
• 3. Secure mounting box to wall.
• 4. Connect wires to GT-DM entry station. (Refer to GT system's installation instructions).

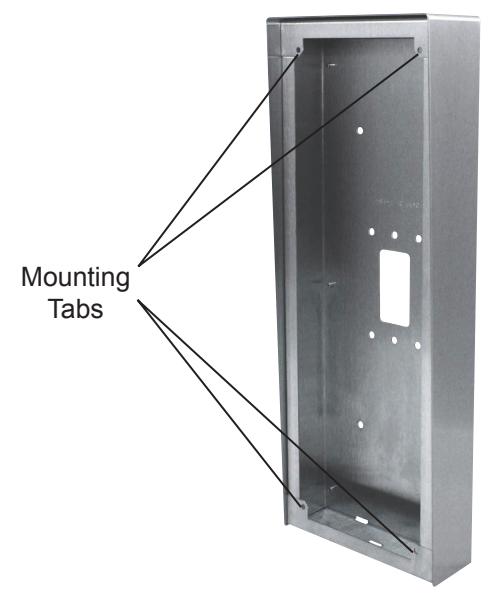

• 5. Connect supplied speed nuts to mounting tabs. (4 total)
• 6. Attach entry station to mounting box using the tamper proof screws and tool supplied with this box.

SPECIFICATIONS:

Mounting: 1 or 2-gang box, or surface mount directly to wall

Material: 16-Gauge Stainless Steel Color: Polished Stainless Steel

Dimensions (HxWxD): 16-¼" x 6" x 2-½" (top); 2" (bottom)

Interior depth: 1-¾"

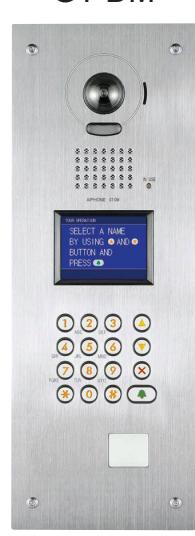

GT-DM
