Stainless Steel Surface Mount Box For units with embedded card readers and access keypads

- INSTRUCTIONS -

The SBX-DVF-P is an 18-Gauge stainless steel enclosure designed for surface mounting the following Aiphone Video Door Station models:

Units with HID ProxPoint Plus Readers: AX-DVF-P, JF-DVF-HID, JK-DVF-HID

Units with embedded access keypad: JK-DVF-AC

CONTENTS:

• SBX-DVF-P Surface mount box
• 4 Speed nuts

MOUNTING INSTRUCTIONS:

• 1. The SBX-DVF-P is designed to mount to a 1- or 2-gang box, ring, or to any flat surface.
• 2. Pass cable through the center opening.
• 3. Secure mounting box to wall.
• 4. Connect the proper cable to the video door station. (Refer to the system's installation manual.)
• 5. Connect supplied speed nuts to mounting tabs. (4 total)
• 6. Attach video door station to mounting box using supplied tamper proof screws and tool. (Tamper proof screws and tool are supplied with the door station.)

Mounting: 1- or 2-gang box, or surface mount directly to wall surface

Material: 18-Gauge Stainless Steel Color: Polished Stainless Steel

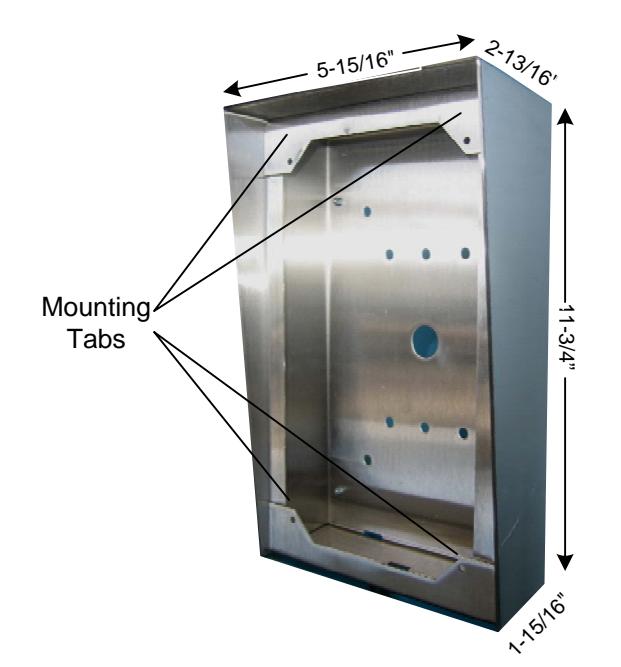

Dimensions (HxWxD): 11-3/4" x 5-15/16" x 2-13/16" (top); 1-15/16" (bottom)

Interior Depth: 1-5/8"

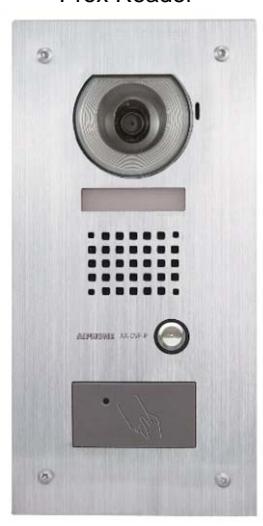

Video Door station with Prox Reader
