Stainless Steel 30° Angle Box for the JF-DV, JK-DV, JO-DV, & JP-DV

- INSTRUCTIONS -

The SBX-DV30 is an 18-Gauge stainless steel surface mount 30° box designed for angle mounting the JF-DV, JK-DV, JO-DV, and JP-DV video door stations. This is applicable for wide or double door entrances where the door station needs to be mounted off to the side of the door, and provides a better viewing angle for the camera.

CONTENTS:

• SBX-DV30 Surface mount 30° angle box
• 4 machine screws

MOUNTING INSTRUCTIONS:

• 1. The SBX-DV30 is designed to mount to a 1-gang box or ring, or to any flat surface.
• 2. Pass cable through the knockout hole.
• 3. Secure mounting box to wall.
• 4. Connect cable to JF-DV/JK-DV/JO-DV/JP-DV. (Refer to system's installation instructions.)
• 5. Attach video door station to mounting box using supplied machine screws.
• 6. Attached camera case to camera unit using supplied security screw and tool. (Security screw and tool are supplied with the door station.)

SPECIFICATIONS:

Mounting: 1-gang box, or surface mount directly to wall surface

Material: 18-Gauge Stainless Steel Color: Polished Stainless Steel

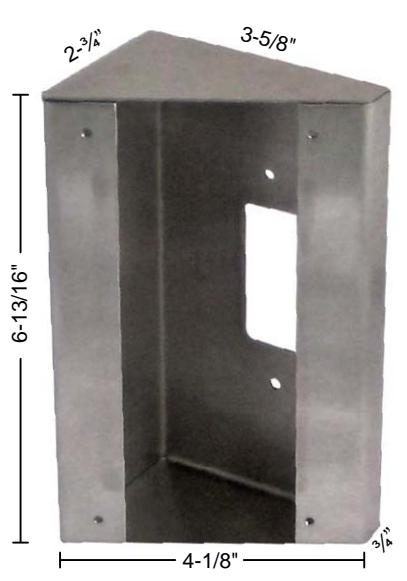

Dimensions (HxWxD): 6-13/16" x 3-5/8" x 2-3/4" (high side); 3/4" (low side)

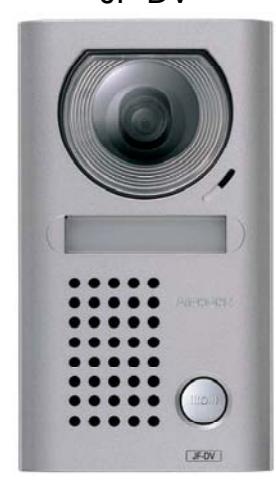

JF-DV
