Stainless Steel Surface Mount Box for the AX-DVF

- INSTRUCTIONS -

The SBX-AXDVF is an 18-Gauge stainless steel enclosure designed for surface mounting the AX-DVF video door station.

CONTENTS:

• SBX-AXDVF Surface Mount Box
• 4 Speed nuts

MOUNTING INSTRUCTIONS:

• 1. The SBX-AXDVF is designed to mount to a 1- or 2-gang box, ring, or to any flat surface.
• 2. Pass cable through the knockout hole.
• 3. Secure mounting box to wall.
• 4. Connect CAT-5e cable to AX-DVF. (Refer to system's installation instructions.)
• 5. Connect supplied speed nuts to mounting tabs (4 total).
• 6. Attach video door station to mounting box using supplied tamper proof screws and tool. (Tamper proof screws and tool are supplied with the door station.)

SPECIFICATIONS:

Mounting: 1- or 2-gang box, or surface mount directly to wall surface

Material: 18-Gauge Stainless Steel Color: Polished Stainless Steel

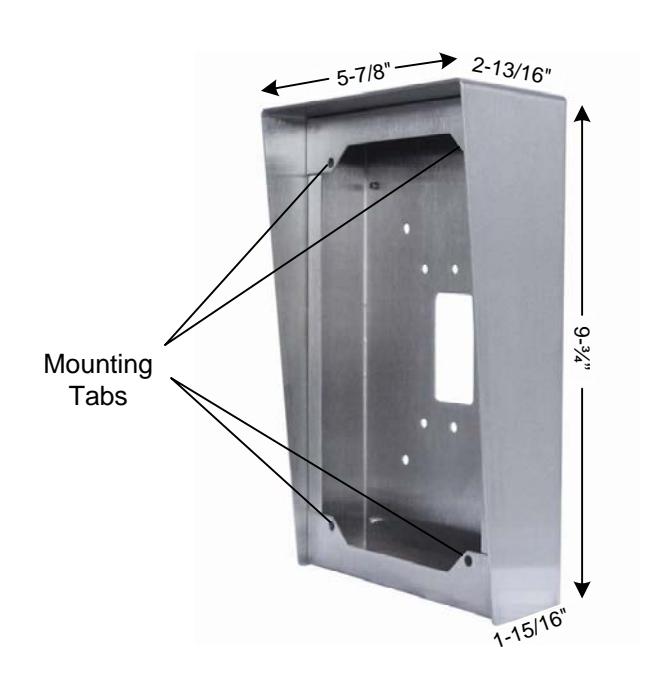

Dimensions (HxWxD): 9-¾" x 5-7/8" x 2-13/16" (top); 1-15/16" (bottom)

Interior Depth: 1-5/8"

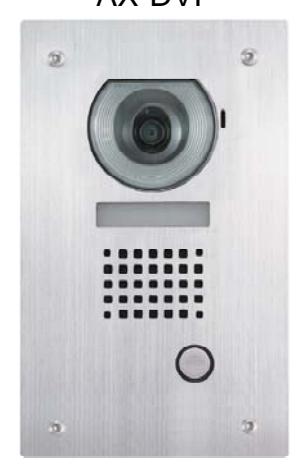

AX-DVF
