Stainless Steel 30° Angle Box for the AX-DV

- INSTRUCTIONS -

The SBX-AXDV30 is an 18-Gauge stainless steel surface mount 30° box designed for angle mounting the AX-DV video door station. This is applicable for wide or double door entrances where the door station needs to be mounted off to the side of the door, and provides a better viewing angle for the camera.

SBX-AXDV30

CONTENTS:

• SBX-AXDV30 Surface mount 30° angle box
• 4 machine screws

MOUNTING INSTRUCTIONS:

• 1. The SBX-AXDV30 is designed to mount to a 1-gang box or ring, or to any flat surface.
• 2. Pass cable through the knockout hole.
• 3. Secure mounting box to wall.
• 4. Connect Cat5 cable to AX-DV. (Refer to system's installation instructions.)
• 5. Attach video door station to mounting box using supplied machine screws.
• 6. Attached camera case to camera unit using supplied security screw and tool. (Security screw and tool are supplied with the door station.)

7-5/8" 3-7/8" 2-3/4" 4-3/8" 5/8"

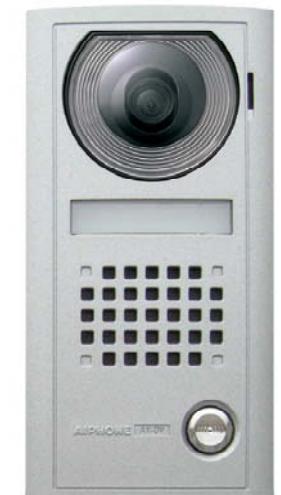

AX-DV

SPECIFICATIONS:

Mounting: 1-gang box, or surface mount directly to wall surface

Material: 18-Gauge Stainless Steel Color: Polished Stainless Steel

Dimensions (HxWxD): 7-5/8" x 3-7/8" x 2-3/4" (high side); 5/8" (low side)
