SBX-ACE

Stainless Steel Enclosure for Intercom Door Station and Access Control Device (i.e. card or proximity reader, keypad)

-INSTRUCTIONS-

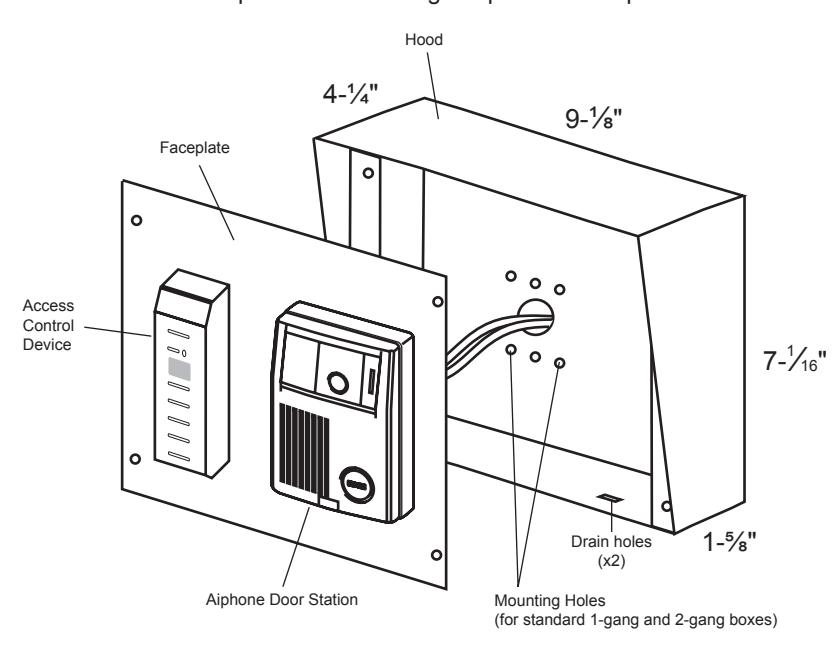

The SBX-ACE is a surface mount stainless steel enclosure designed for mounting an Aiphone 1-gang surface mount door station and an access control device side by side. This enclosure can be used as a stand-alone box for mounting any card or proximity reader, or other device requiring a hooded outdoor box. The SBX-ACE includes room inside for wiring and is weather resistant.

MOUNTING

• 1. Remove faceplate from SBX-ACE.
• 2. Position Aiphone door station and access control device onto faceplate and mark where holes are needed for mounting and wiring the devices.
• 3. Drill the faceplate with a tool that will penetrate stainless steel.
• 4. Mount Aiphone door station and access control device per instructions provided with those units.
• 5. Mount SBX-ACE to wall or stanchion surface using the appropriate gang box mounting holes.
• 6. Make wiring connections to Aiphone door station and access control equipment.
• 7. Mount faceplate to hood using the provided tamper resistant screws.

Aiphone Door Stations:

Audio only: LE-D, IF-DA, IX-BA

Audio/Video: JF-DA, JK-DA, JO-DA JP-DA, IX-DA, KB-DAR

SPECIFICATIONS:

Mounting: Surface mount directly to wall, 1-gang box, or 2-gang box

Material: 18 gauge polished stainless steel

Screws: 8x32 tamper resistant (x4); tool included

Overall Dimensions: 7- ¹ ⁄16" H x 9-⅛" W x 4-¼" D (top) 1-⅝" D (bottom)

Faceplate Dimensions: 6- ¹⁵ ⁄16" H x 8-15⁄16" W

Interior Depth: 1-½"

Conduit Connection: ⅞" knockouts (x3)
