SBX-2G/A

Stainless Steel Surface Mount Box for 2-Gang Sub Stations

-INSTRUCTIONS-

The SBX-2G/A is a surface mount stainless steel enclosure designed for mounting Aiphone 2-gang sub stations. The enclosure is weather resistant and includes space inside for wiring. The unit mounts to a 1-gang box or ring, or mounts directly to a wall surface.

MOUNTING:

• 1. Mount SBX-2G/A to a 1-gang box or wall surface.
• 2. Connect supplied speed nuts to mounting tabs.
• 3. Make wiring connections to the sub station.
• 4. Mount sub station to box using the screws provided.

PACKAGE CONTENTS:

• SBX-2G/A unit
• Packet of screws (4)
• Speed nuts (4)
• T-15 Torx bit (1)

COMPATIBLE AIPHONE SUB STATIONS:

LEF/IX-1AS, IX-10AS Series

LE-SS/A Vandal Resistant Stainless Steel Sub Station LE-SSR Vandal Resistant with Red Mushroom Call Button LE-DA Sub with Stainless Steel Faceplate

IE/AX Series

IE-SS/A Vandal Resistant Stainless Steel Sub Station IE-SSR Vandal Resistant with Red Mushroom Call Button IE-JA Sub with Stainless Steen Faceplate

IS Series

IS-SS-2G Vandal Resistant Stainless Steel Sub Station IS-SSR-2G Vandal Resistant with Red Mushroom Call Button

IX Series

IX-SS-2G Vandal Resistant Stainless Steel Sub Station

SPECIFICATIONS:

Mounting: 1-gang box or surface mount directly to wall

Material: 18-Gauge Stainless Steel Color: Polished Stainless Steel Mounting Hardware: ⁸ ⁄32 with T-15 Torx Head

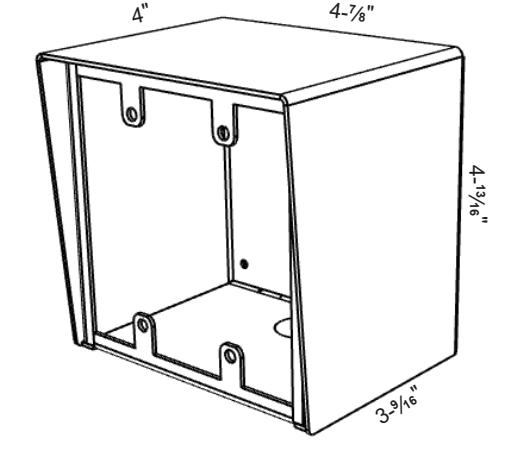

Dimensions (HxWxD): 4- ¹³ ⁄16 " x 4- ⁷ ⁄8 " x 4"

Interior depth: 3- ³ ⁄8 "
