SBX-1G

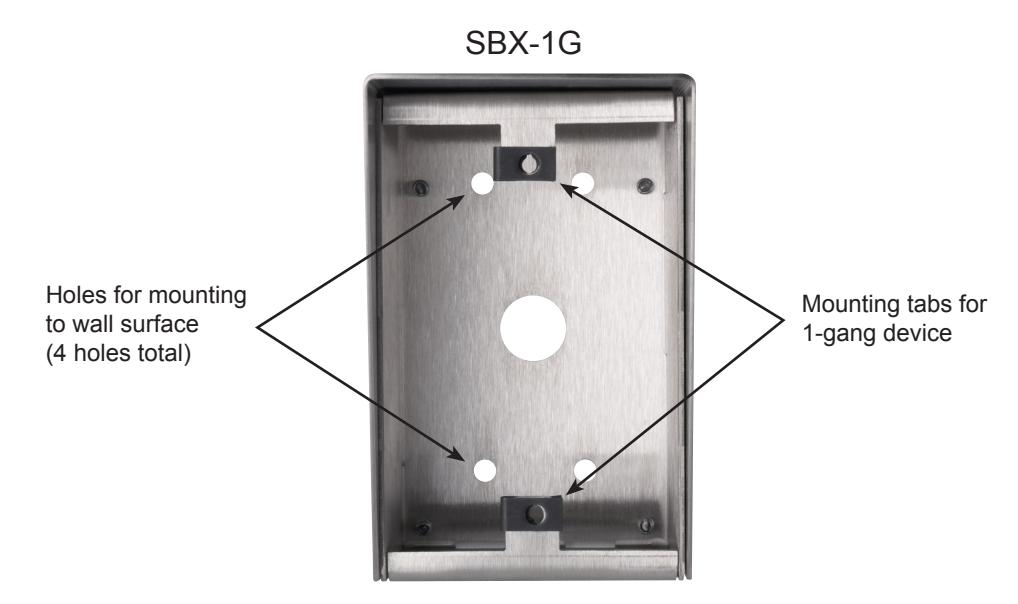

Stainless Steel Surface Mount Box

-INSTRUCTIONS-

The SBX-1G is a surface mount stainless steel enclosure designed for mounting the LE-SS-1G and NE-SS-1G subs. The enclosure is weather resistant and includes space inside for wiring.

MOUNTING:

• 1. Mount the SBX-1G to a wall surface.
• 2. Connect supplied speed nuts to the the mounting ears.
• 3. Make wiring connections to device being installed.
• 4. Mount device to box using the screws provided.

PACKAGE CONTENTS:

• SBX-1G unit
• Packet of screws (2)
• Speed nuts (2)
• T-15 Torx bit (1)
• Instructions

SPECIFICATIONS:

Mounting: Surface mount directly to wall surface

Material: 16-Gauge Stainless Steel Color: Polished Stainless Steel Mounting Hardware: 8x32 with T-15 Torx head

Dimensions (HxWxD): 4-9/16" x 2-7/8" x 2-15/16" (top); 2" (bottom)

Interior depth: 1-13/16"

SBX-SS-1G 2-7/8" 4-9/16" 2" Dimensions: 2-15/16"

Aiphone Corporation

1700 130th AVE NE Bellevue, WA 98005 (425) 455-0510 Fax: (425) 455-0071

TOLL FREE TECHNICAL SUPPORT:

(800) 692-0200 E-MAIL: tech@aiphone.com
