Aiphone PS-POE Splitter Instructions

PS-POE

PoE Splitter

-INSTRUCTIONS-

The PS-POE is a PoE splitter that provides a 24V DC output to power the strobe light in Aiphone's wall boxes and towers. The IX Series 2 emergency stations have a secondary PoE output (pass-through) that can be used to connect to this splitter. The PoE pass-through will only be usable if the IX station is connected and powered via a PoE+ switch.

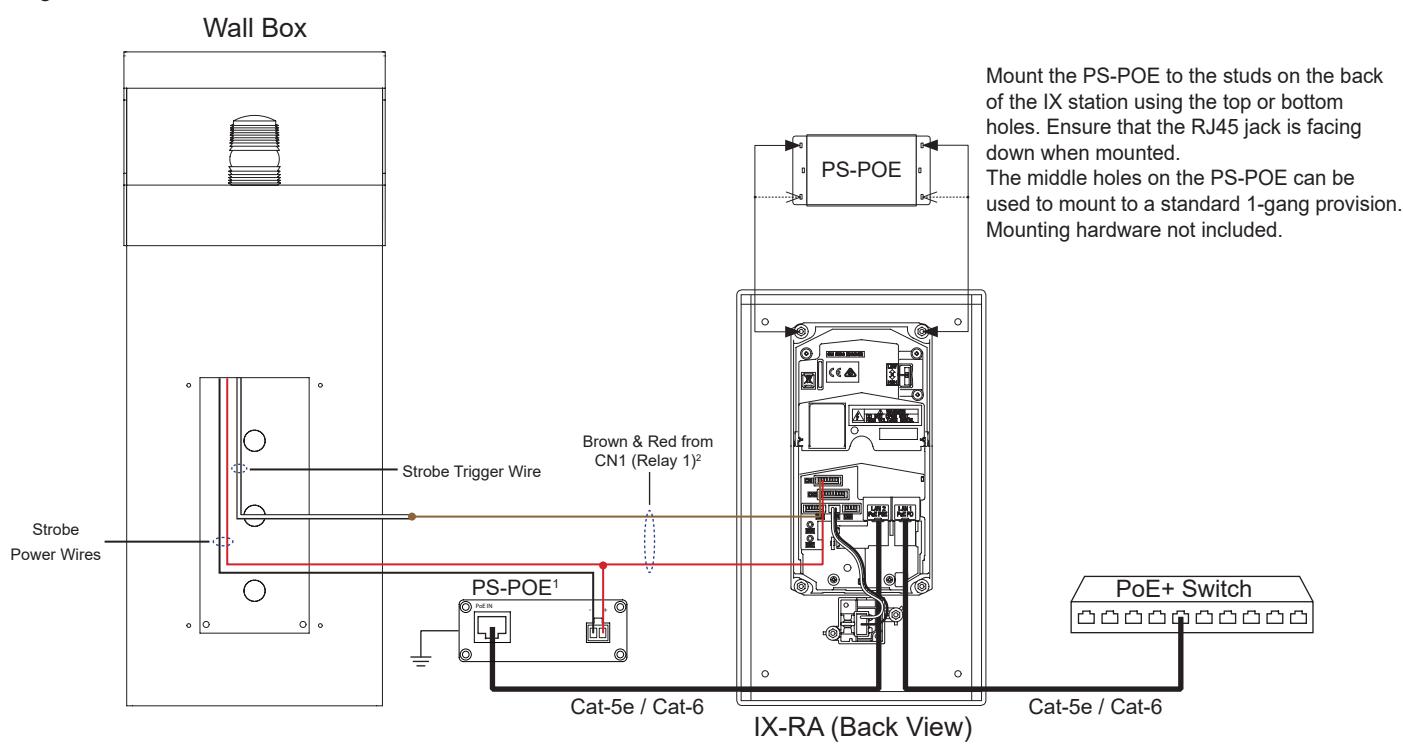

WIRING

Drawing not to scale

¹ Connect the ground terminal to an Earth ground.

SPECIFICATIONS

Power: PoE (803.2af)

Power consumption: 8.4W

Output power: 24V DC, 350mA

Operating Temperature: -40° ~ 140° F (-40° ~ 60°C)

Mounting: Secure to mounting studs on back of IX station or secure to a

1-gang box.

Dimensions: 4-1 ⁄16" H x 2-9 ⁄16" W x 1-⅛" D

² Relay 1 must be enabled during the station programming process.
