MarketCom Series

Features & Benefits

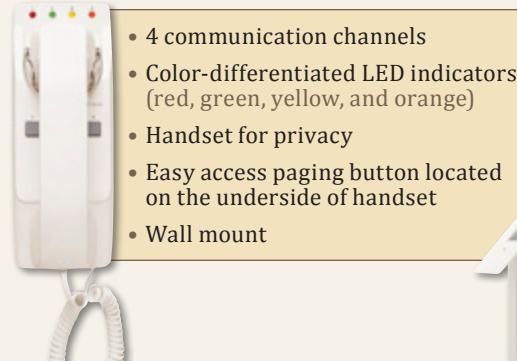

• • 60 station capacity Communicate with employees throughout the entire facility
• • Paging and announcements Request personnel to answer a specific channel or broadcast a general message
• • 4 communication channels Reach employees instantly without having to wait for occupied lines to open up

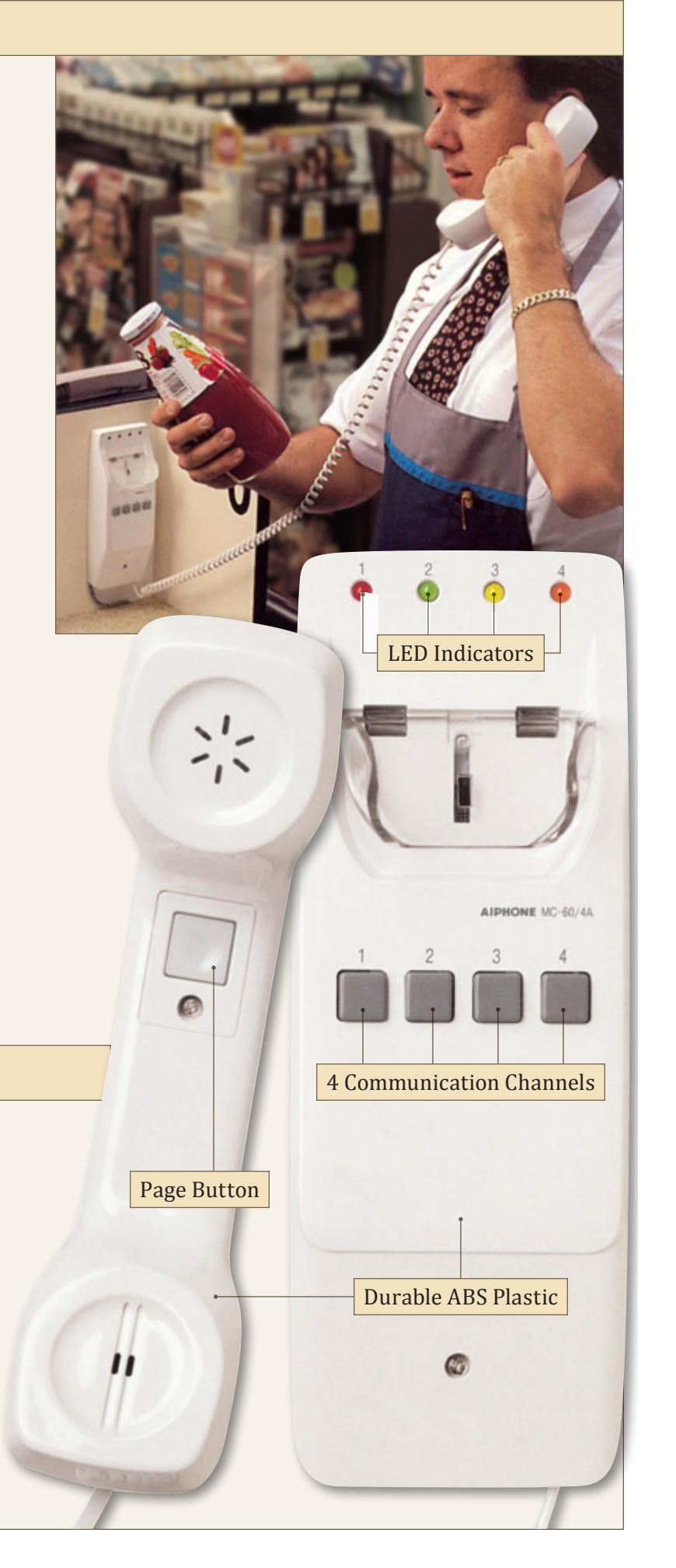

• • Color LED indicators Know exactly which channel to answer by the corresponding LED indicator
• • Handset page button Prevent accidental paging with the strategic location of the page button
• • Simple to use Push one button to page and one button to answer - easier than a telephone!
• • Complements phone system Improve communication with quick access paging, a feature telephones do not offer
• •Great for noisy environments Use the system's speakers and amplifiers to produce loud and clear announcements in any environment

Ideal Applications •Reliable and designed to last Install the system and have guaranteed trouble-free use for years to come! Grocery Stores Retail Outlets Industrial Facilities Manufacturing Plants Warehouses

Components

Master Station

Install up to 60 per system

MC-60/4A MarketCom Master Station 9-1/4" H 3-1/2" W 3-1/2" D

MC-S12 Optional 12" Checkstand Pedestal for MC-60/4A

Paging Amplifiers Install 1 per system

P30BGM 30W Paging Amplifier 3-1/2" H 10-1/2" W 9-1/2" D

DMA2060 60W Paging Amplifier 4" H 10-3/4" W 11" D

DMA2120 120W Paging Amplifier 4" H 10-3/4" W 11" D

Paging Adaptor Install 1 per system

MC-A/A Paging Adaptor 2" H 3-5/8" W 5-5/8" D

Power Supply Install 1 per system

PS-2420UL 24V DC, 2A Power Supply 6-9/16" H 3-9/16" W 2" D

Paging Speakers

Install number of speakers needed (based on amplifier wattage)

SP-2570N Flush Mount Ceiling Speaker for Indoor Use

8Ω, 25/70V, 5W Diameter: 12-7/8"  Baffle Diameter: 8"

SSB-2 Ceiling Support Bracket for SP-2570N

AH-16TN Surface Mount Horn Speaker for Indoor or Outdoor Use Bell Diameter: 8-1/8"

Depth: 9"

AH-32TN Surface Mount Horn Speaker for Indoor or Outdoor Use Bell Diameter: 8-1/8"  Depth: 9"

Specifications

Power Source	24V DC - use PS-2420UL
Consumption	Max. 70mA (in paging mode)
Communication	Push page button (located on the underside of handset) to broadcast page throughout all connected speakers. Select a communication channel (1-red, 2-green, 3-yellow, or 4-orange) to indicate which channel the receiver needs to pick up. Receiver pushes button corresponding with the lit LED to open two-way communication. Up to three stations can communicate on one channel.
Station Capacity	Max. 60 stations with 6 wiring blocks (up to 10 master stations per wiring block)
Wire Type	7 conductor, non-twisted, low capacitance (PE insulation) - use Aiphone wire #852207
Wiring Distance	MC-A/A to farthest MC-60/4A on block: 1,700' (22AWG) or 4,000' (18AWG) Total cumulative wiring between MC-A/A and MC-60/4A: 5,000' (22AWG)
