RELAY BOX FOR ADDITIONAL LIGHT

MODEL:MAW-B

MAW-B RELAY IS DESIGNED TO TURN ON EXTERNAL LIGHT IN AIPHONE VIDEO INTERCOME SYSTEMS: MA-1A AND MA-4U WITH MA-DC DOOR STATION.

-INSTRUCTIONS -

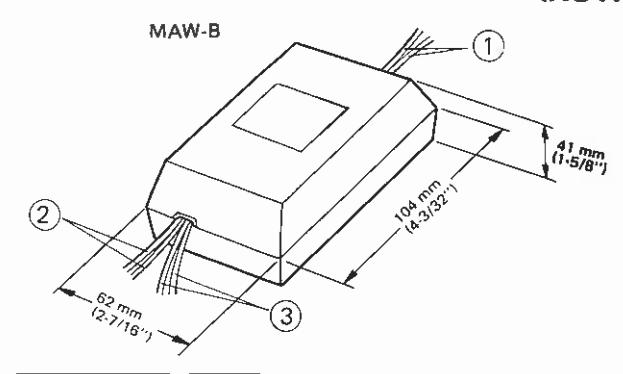

NAMES AND FUNCTIONS

• 1) Orange wires: Connect to switch for additional light.
• (2) White and blue wires: Connect to B and E wires on MA-1A or MA-4U master room station (polarized).
• (3) Red and black wires: Connect red wire to plus (+) terminal and black wire to minus (-) terminal on PS-24M power supply.

SPECIFICATIONS

* Power source :

: DC-24V, Supplied by PS-24M power supply adaptor.

* Power consumption

: 2.5W maximum.

0.5W in standby mode.Use incandescent lamps for general lighting service of less than 100W.

* Relay contact capacity* Wiring

: 2-wires (polarized) between MAW-B and MA-1A/MA-4U master room station.

2-wires (polarized) between MAW-B and PS-24M power supply.

* Wiring distance

: Up to 80m (26') with 0.65 mm dia. (22AWG) wires between MAW-B and PS-24M.

INSTALLATION

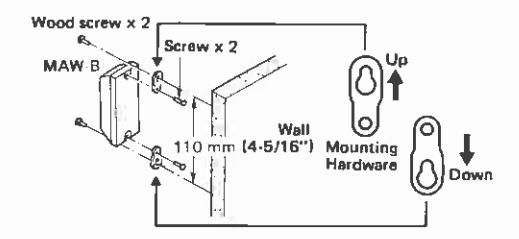

Attach the mounting hardware to MAW-B relay box. Install the provided wood screws to wall with an interval of 110 mm (4-5/16") between. Mount MAW-B box onto the wood screws.

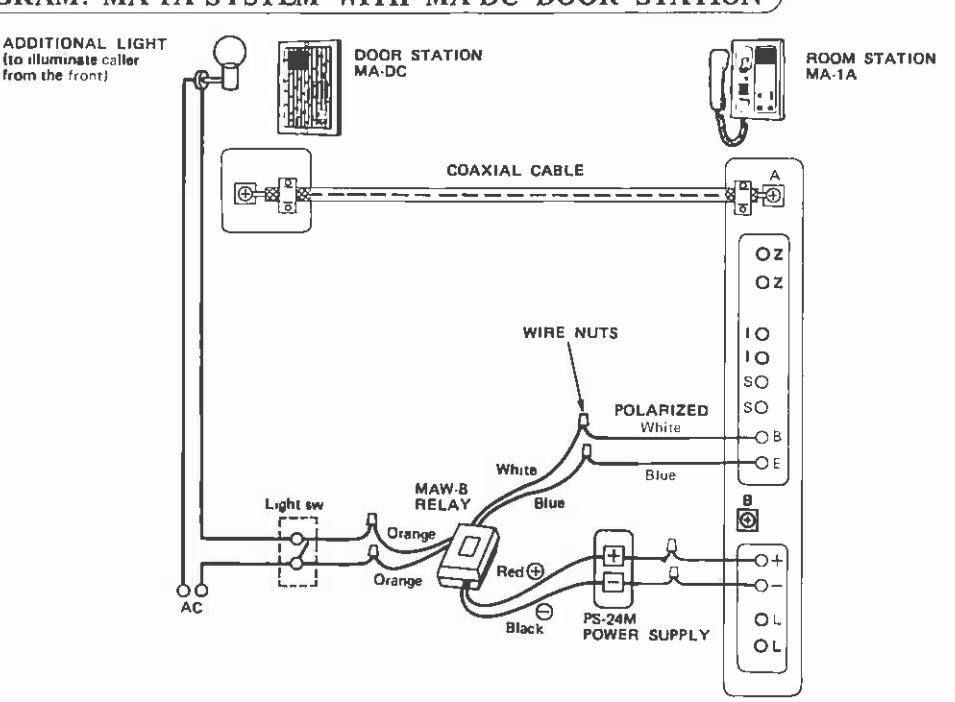

WIRING DIAGRAM: MA-1A SYSTEM WITH MA-DC DOOR STATION

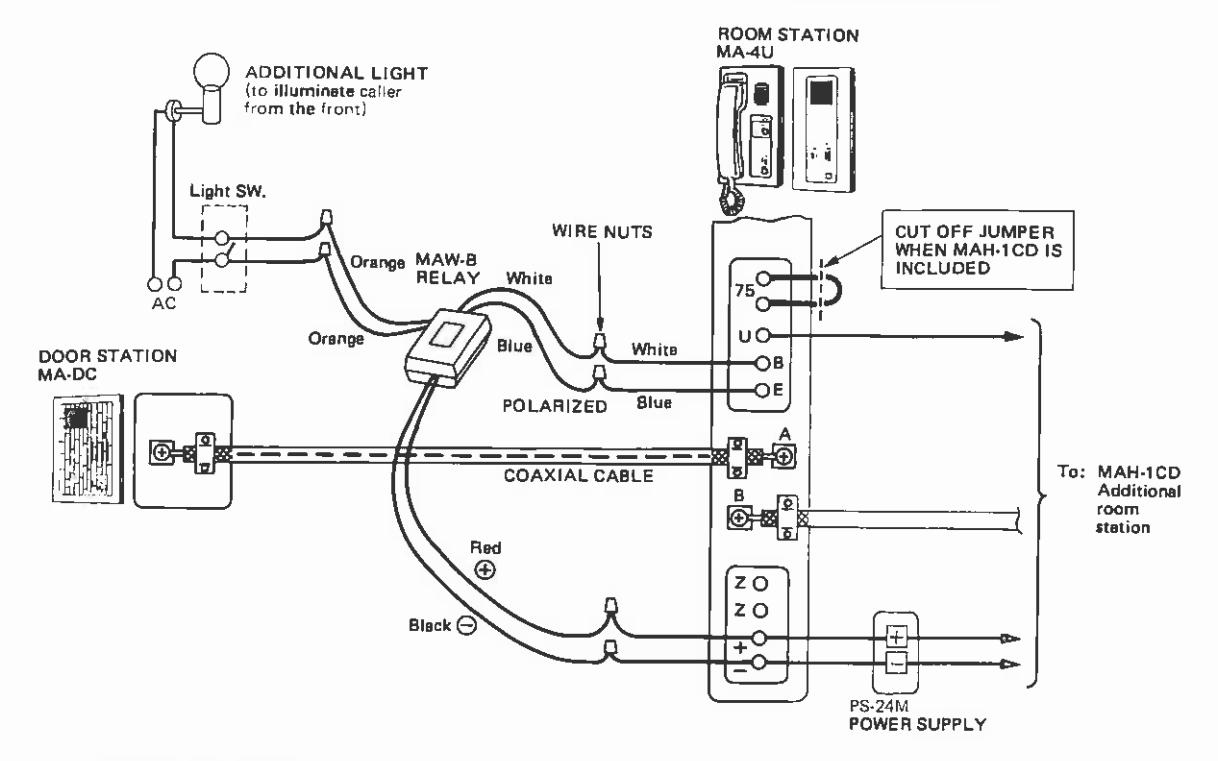

WIRING DIAGRAM # (2) MA-4U SYSTEM WITH MA-DC DOOR STATION )

NOTES ON INSTALLATION:

• (1) It will cause permanent damage to MAW-B relay box if white/blue and red/black wires are connected to AC power lines.
• (2) For additional light, use incandescent lamp for general lighting service of 100W or less, otherwise relay contact will be damaged.
• (3) Do not connect any wire on MAW-B relay to AC power lines.
