LS-NVP/C

Vandal Proof Sub Station for LEF, LEM, & IX (w/IX-1AS) Systems

- INSTRUCTIONS -

The LS-NVP/C is a vandal proof and weather resistant sub station designed for use with the systems listed above. It's constructed of 12 gauge carbon steel with a white powder-coated finish. The LS-NVP/C mounts vertically, either flush into a 3-gang masonry box, or surface mounted with the SBX-NVP. Each unit includes tamper proof screws and tool for installation.

WIRING DIAGRAMS

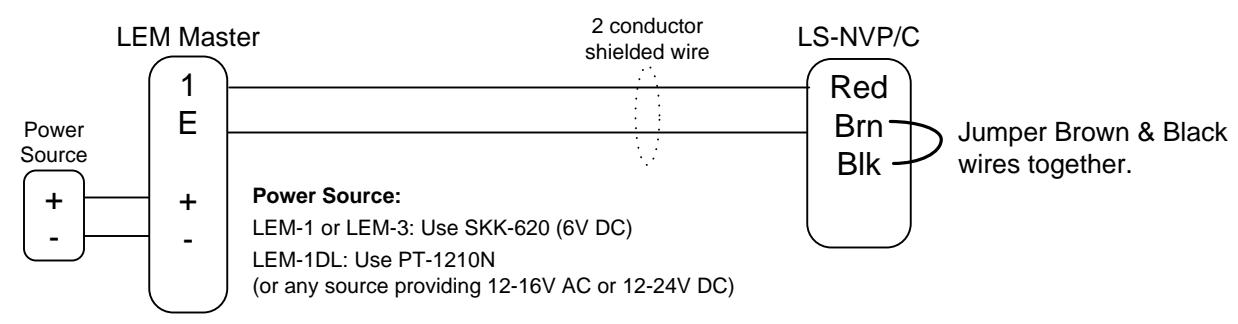

LEM SYSTEM

WIRE COLOR CODE DEFINITIONS:

Red: + side of speaker & call switch, connect to # of master Brown: Common communication, connect to E of master Black: - side of call switch

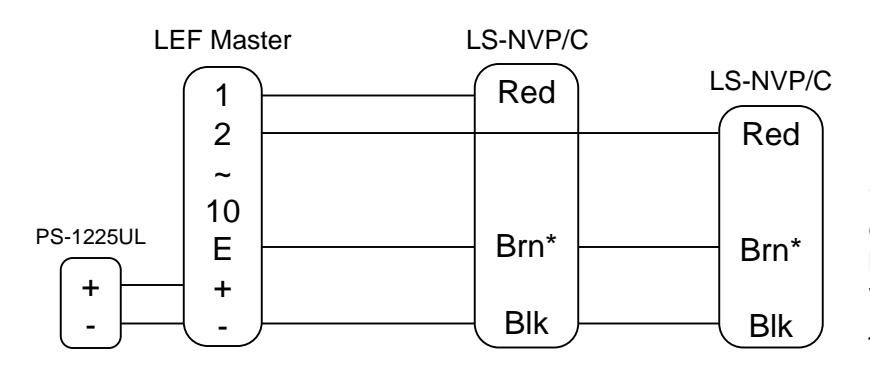

LEF SYSTEM

* In a single master LEF system only, 2 conductors homerun can be used with the BRN and BLK wires tied together and "E" and "-" jumpered at the master station.

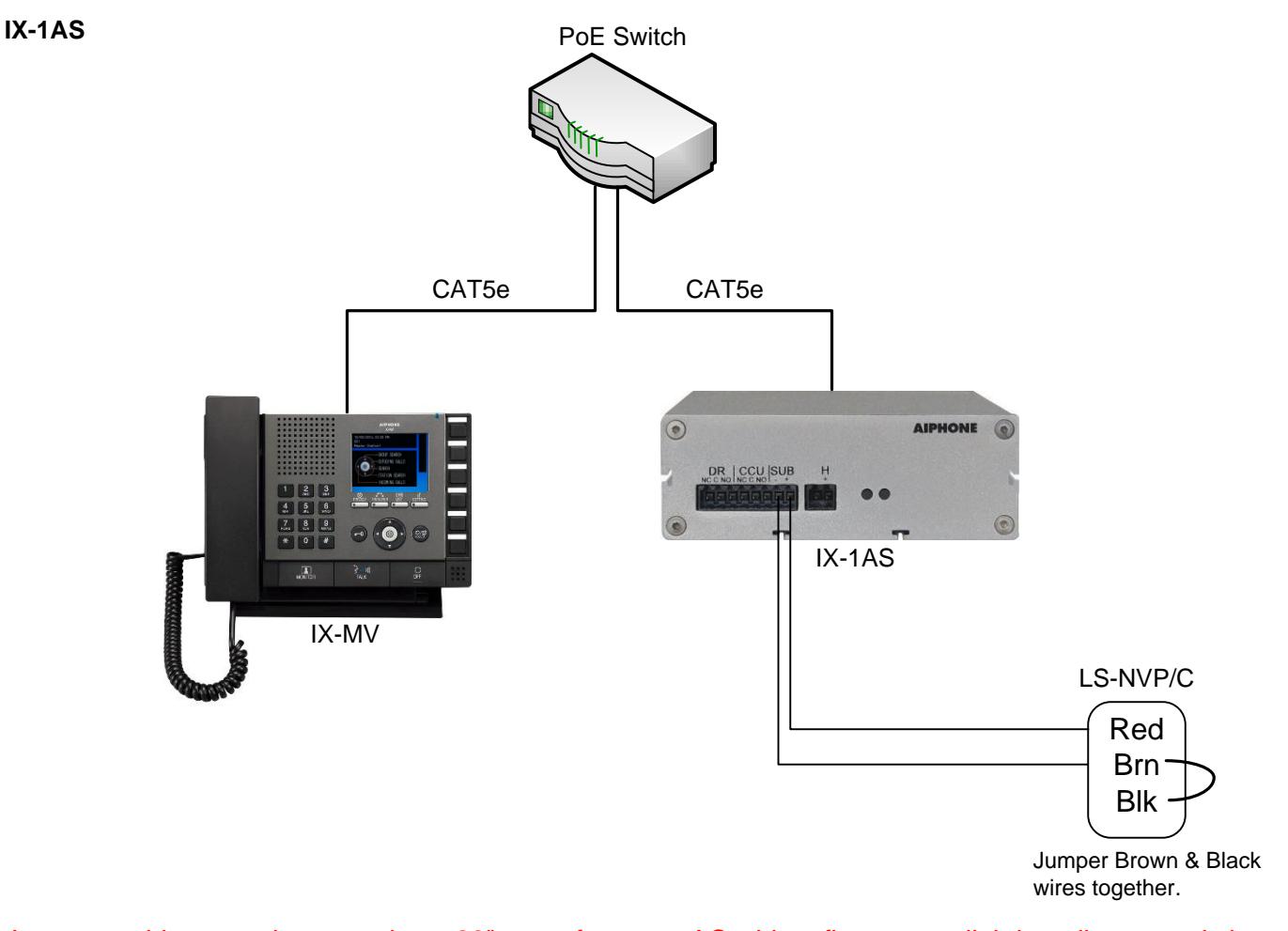

WIRING DIAGRAMS

Intercom wiring must be run at least 20" away from any AC wiring, fluorescent lighting, dimmer switches, or any other electronic device that may cause interference.

SPECIFICATIONS

Power Source: Supplied by master station

Speaker: 20 ohms, 2.5" diameter, water proof and puncture resistant, 2.4 oz. ceramic magnet

Call Button: SPST call button. Call tone rings at LEM/LEF master as long as button is held down. Call tone

rings at IX-MV based on program settings. LED will remain lit for approx. 20 seconds (LEF,

LEM-3). Call tone only on LEM-1DL and LEM-1.

Communication: Hands free at sub. Master is push-to-talk,release-to-listen.

Faceplate: 12 gauge carbon steel with powder-coated white baked epoxy finish

Mounting: Flush mount into a 3-gang masonry type box. (Raco model 692 or equivalent) Surface mount

into SBX-NVP, sold separately.

Mounting Hardware: T10 Torx tamper proof screws and tool included (6x32 for use with flush gang box)

Terminations: Color-coded prewired pigtails

Wiring: 2 conductors in a 1-master LEF or IX-1AS system. 3 conductors in a multi-master LEF system.

Shielded cable is recommended. Use Aiphone #822202 for LEM/IX. Use #822202 or #822203

for LEF.

Wiring Distance: See system that unit is being used with for distance specifications.

Dimensions (H x W x D): LS-NVP/C alone: 7-1/2" x 5-1/2" x 2". With SBX-NVP: 8-5/8" x 6-5/8" x 2-1/4"

Mounting Depth: Provide mounting box with a minimum depth of 2-1/2" to allow space for internal components.
