Communication, Paging, and Entry Security System

Components - Mix and match up to 3 door / sub stations and 1 master station

Door / Sub Stations - Select up to 3 (includes door stations, sub stations, speakers, and paging adaptors)

LE-D

Audio Door Station

• Plastic chassis
• Surface mount
• · Fits 1-gang box 4-3/4"H 3-7/16"W 1-1/8"D

LE-SS-1G

Audio Door Station

• Stainless steel panel
• · Flush mount
• Fits 1-gang box 4-1/2"H 2-3/4"W 2-1/2"D (back box depth)

NOTE: Aiphone recommends a 2-1/2" minimum back box depth for all flush mount door stations

LE-DA

Audio Door Station

• Stainless steel cover
• · Flush mount
• · Fits 2-gang box 4-1/2"H 4-9/16"W 2-1/2"D (back box depth)

LE-SS/A

Audio Door Station

• Stainless steel panel
• · Flush mount
• · Fits 2-gang box 4-3/4"H 4-3/4"W 2-1/2"D (back box depth)

LE-SSR

Audio Door Station

• Red mushroom call button
• Stainless steel panel
• · Flush mount
• Fits 2-gang box 4-3/4"H 4-3/4"W 2-1/2"D (back box depth)

LE-SSV

Audio Door Station

• Built-in CCTV camera
• Stainless steel panel
• · Flush mount
• · Fits 2-gang box 4-3/4"H 4-3/4"W (back box depth)

LS-NVP/C Audio Door

• Powder-coated steel panel
• Flush mount

Station

• Fits 3-gang box 7-1/2"H 5-1/2"W 2-1/2"D (back box depth)

LE-A

Audio Sub Station

Surface mount 6-1/4"H 5-1/8"W 2"D

LE-AN

Privacy Audio Sub Station

• Surface mount
• Privacy button 6-1/4"H 5-1/8"W 2"D

LE-B

Audio Sub Station

Semi-flush mount 8-1/4"H 6"W 2"D (9/16" goes inside wall)

LE-BN

Privacy Audio Sub Station

• Semi-flush mount
• Privacy button 8-1/4"H 6"W 2"D (9/16" goes inside wall)

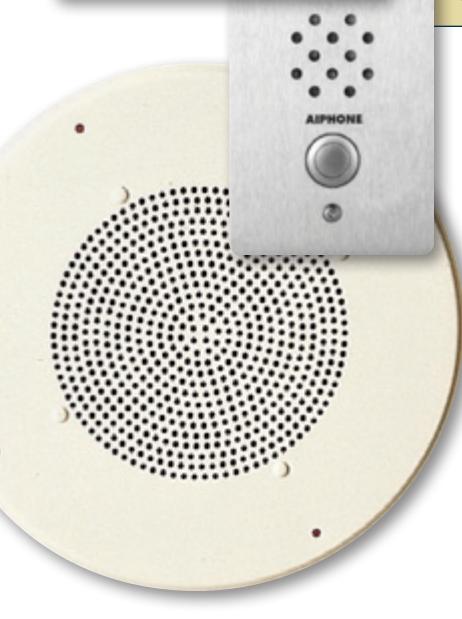

SP-20N/A

Ceiling Speaker (requires NP-25V)

• 200
• Indoor use
• Flush mount Diameter: 12-7/8" Baffle Diameter: 8"

AH-108

Horn Speaker

• •8Ω. 10W
• Indoor or outdoor use
• Surface mount Bell Diameter: 6-1/8 Depth: 6-1/2'

BA-1

Paging Adaptor

4-1/8"H 2-1/2"W

1-1/2"D

Master Stations - Select 1

Specifications

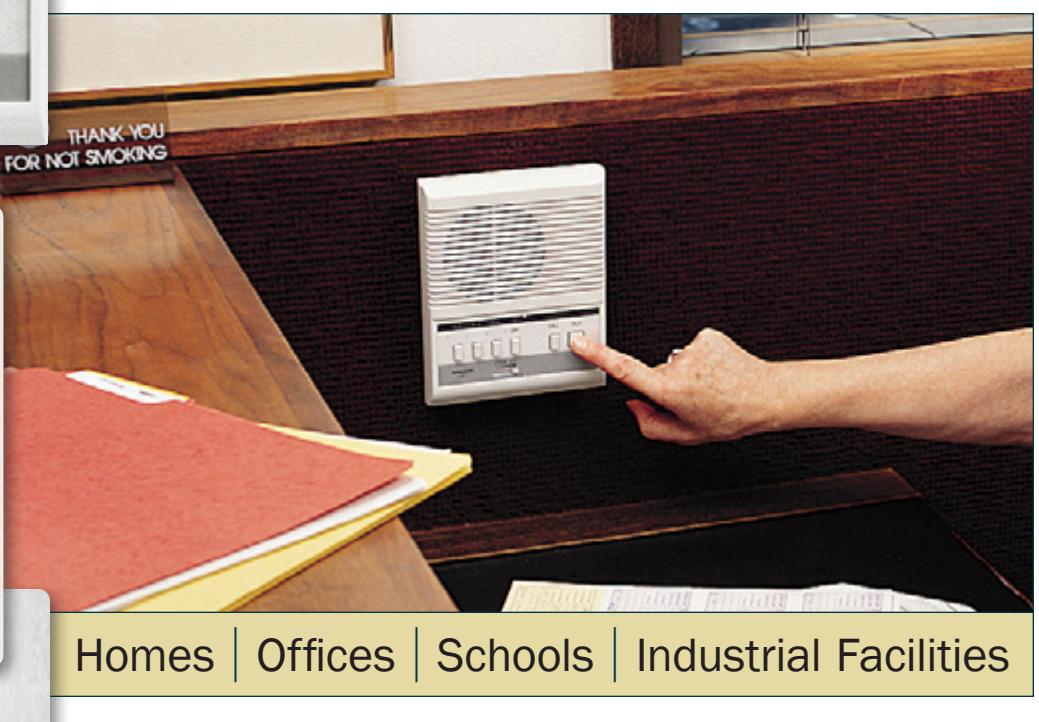

LEM-1

1-Call Audio Master Station (for applications using 1 door/sub station)

Surface mount 6-1/4"H 5-1/8"W 2"D

Spec▼ | Model▶

Power Source

Wire Distance

Output

Wire Type

LEM-3

3-Call Audio Master Station (for applications using 2 or 3 door/sub stations)

Call indicator LED lights

6V DC. 200mA - use SKK-620C

Surface mount 7-1/8"H

LEM-1. LEM-3

350mW

5-5/8"W 2-3/16"D

Power Supply

SKK-620C

6V DC Power Supply (required for system)

Accessories

HID-SS

Card Access Station with HID® ProxPoint® Plus Proximity Card Reader (requires a 3rd party host)

SBX-2BH

Horizontal Surface Mount Box for HID-SS and one LE-DA, LE-SS/A, or LF-SSR

KMB-45

Mounting

Bracket

for LE-D

45° Mullion

SBX-NVP

Surface Mount Box for LS-NVP/C

NP-B Flush Mount Indoor Call

Button

NP-W Surface Mount Box

for NP-B

SBX-1G Surface Mount Box for LF-SS-1G

RRX-1F Flush Mount Back Box

SBX-2G

Surface Mount Box

for LE-DA,

LF-SSR

LE-SS/A, or

NP-25V 33µF, 25V Non-Polarized Capacitor

LEM Series Brochure

01/2017 Digital Copy

Door/Sub Station to farthest Master Station: 650'(22AWG) 1,600'(18AWG)

2 cond., overall shield (Aiphone wire #822202 or #821802)

LE-A. LE-AN. LE-B. LE-BN

Drawn from master station

Aiphone Co. Ltd.

Intertek
