Communication, Paging, and Entry Security System

Features & Benefits

  • Mix and match a variety of stations Up to 11 components can be intermixed to create the desired communication solution
  • •Complements CCTV system Visitors can be seen with CCTV cameras while communicating via the intercom
  • •PTT and hands-free communication Calls are made with push-to-talk operation and answered with hands-free communication
  • •LED and call-tone indicators LED lights and call tones at the master station indicate which door/sub station is calling

  • •Selective door release
  • When visitors are confirmed, doors can be unlocked with the push of a button
  • •Selective Call and Optional All Call Provides the option to call one station at a time or to call all stations at once
  • •Indoor and outdoor speakers Announcements can be heard throughout the facility where speakers are installed
  • •Reliable and designed to last Customers can rely on this system with trouble‑free use for years to come

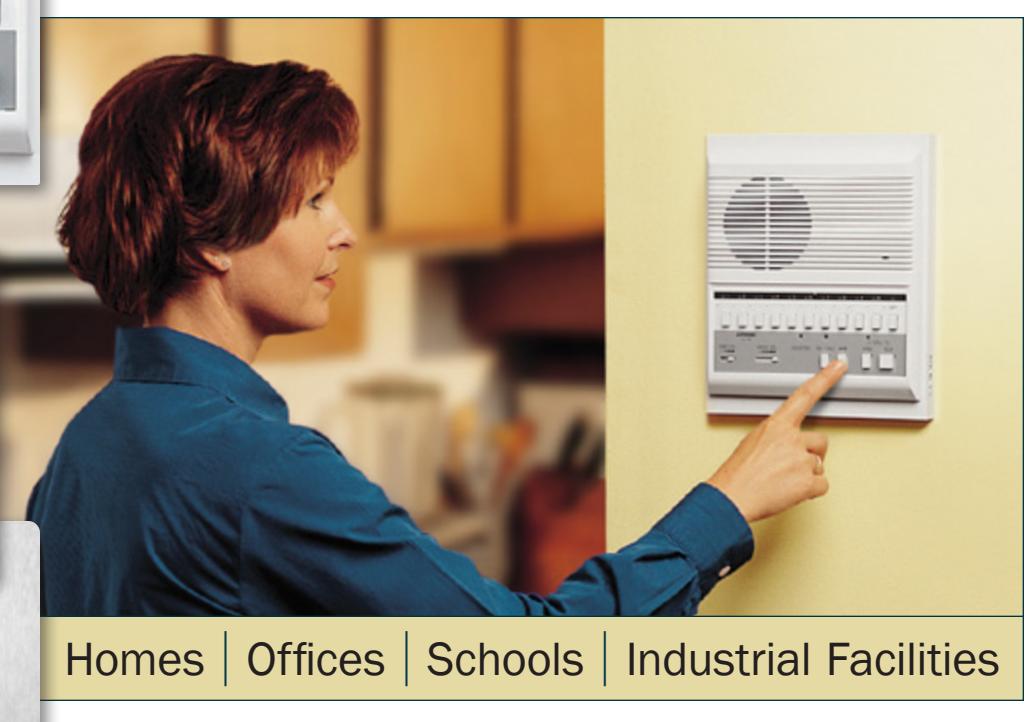

Ideal Applications

Components - Mix and match up to 11 door /master / sub stations

Door Stations

LE-D Audio Door

  • Station
  • •Plastic chassis
  • •Surface mount •Fits 1‑gang box 4-3/4"H 3-7/16"W

1-1/8"D

LE-SS-1G

  • Audio Door Station
  • •Stainless steel panel
  • •Flush mount
  • •Fits 1‑gang box 4-1/2"H 2-3/4"W 2-1/2"D

(back box depth)

LE-DA

Audio Door Station

  • •Stainless steel cover
  • •Flush mount
  • •Fits 2‑gang box 4-1/2"H 4-9/16"W
  • 2-1/2"D (back box depth)

LE-SS/A

Audio Door Station

  • •Stainless steel panel
  • •Flush mount
  • •Fits 2‑gang box 4-3/4"H
  • 4-3/4"W 2-1/2"D
  • (back box depth)

LE-SSR

Audio Door Station

  • •Red mushroom call button
  • •Stainless
  • steel panel
  • •Flush mount •Fits 2‑gang box
  • 4-3/4"H 4-3/4"W
  • 2-1/2"D (back box depth)

LE‑SSV

Audio Door Station

  • Built‑in CCTV camera
  • Stainless
  • Flush mount
  • Fits 2‑gang box

(back box depth)

  • 4-3/4"H 4-3/4"W 2-1/2"D
  • steel panel •Powder‑coated steel panel •Flush mount •Fits 3‑gang box
    • 7-1/2"H 5-1/2"W

LS-NVP/C Audio Door Station

2-1/2"D (back box depth)

NOTE: Aiphone recommends a 2-1/2" minimum back box depth for all flush mount door stations.

Master Stations

LEF-3

3‑Call Audio Master Station

•Surface mount 7-1/16"H 5-5/8"W 2-1/8"D

LEF-3L

3‑Call Audio Master Station

  • •Selective door release
  • •Surface mount 7-1/16"H 5-5/8"W 2-1/8"D

LEF-5

5‑Call Audio Master Station

  • •Selective door release
  • •Surface mount 8-1/8"H 7-1/2"W 2-3/16"D

LEF-10

10‑Call Audio Master Station

  • •Selective door release
  • •Surface mount 8-1/8"H 7-1/2"W 2-3/16"D

LEF-10S

10‑Call Audio Master Station

  • •All Call button (requires BG-10C)
  • •Selective door release
  • •Surface mount 8-1/8"H 7-1/2"W 2-3/16"D

LEF-3C

3‑Call Audio Master Station

  • •All Call button (requires BG-10C)
  • •Semi‑flush mount 8-1/4"H 6-1/8"W 2"D (9/16"

goes inside wall)

LEF-5C

5‑Call Audio Master Station

  • •All Call button (requires BG-10C)
  • •Selective door release
  • •Semi‑flush mount 9-7/16"H 7-7/8"W 3"D (1-1/2" goes inside wall)

LEF-10C

10‑Call Audio Master Station

  • •All Call button (requires BG-10C)
  • •Selective door release
  • •Semi‑flush mount 9-7/16"H 7-7/8"W 3"D (1-1/2" goes inside wall)

Components - Mix and match up to 11 door/master/sub stations

Sub Stations (includes sub stations, speakers, and paging adaptors)

LE-A

2"D

Audio Sub Station Surface mount 6-1/4"H 5-1/8"W

LE-AN

Privacy Audio Sub Station

  • Surface mount
  • Privacy button 6-1/4"H 5-1/8"W 2"D

LE-A3

3-Call Audio Sub Station

Surface mount 7-1/16"H 5-5/8"W 2-1/8"D

LE-B

Audio Sub Station

· Semi-flush mount 8-1/4"H 6"W 2"D (9/16" goes inside wall)

LE-BN

Privacy Audio Sub Station

  • · Semi-flush mount
  • Privacy button 8-1/4"H 6"W 2"D (9/16" goes inside wall)

LEF-1C

Audio Sub Master Station (requires BG-10C)

All Call button

DMA2060

60W Paging

Amplifier

· Semi-flush mount 8-1/4"H 6"W 2"D (9/16" goes inside wall)

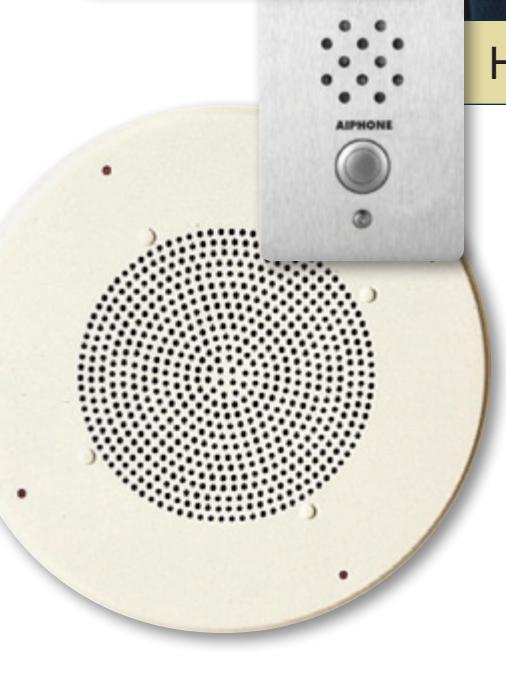

SP-20N/A

Ceiling Speaker (requires NP-25V)

  • · 200
  • Indoor use
  • Flush mount Diameter: 12-7/8" Baffle Diameter: 8"

AH-108

Horn Speaker

  • •8Ω, 10W Indoor or
  • outdoor use
  • Surface mount Bell Diameter: 6-1/8' Depth: 6-1/2'

BA-1

  • 1-1/2"D

Paging Adaptor (requires one amplifier per paging zone - use P30BGM. DMA2060. or DMA2120)

4-1/8"H 2-1/2"W

Power Supply

LE-AN3

Audio Sub

7-1/16"H

5-5/8"W

2-1/8"D

Station

3-Call Privacy

Surface mount

Privacy button

(required for system)

Accessories

All Call, Chime, and Music Adaptor (required for LEF-10S, LEF-3C, LEF-5C, LEF-10C, or LEF-1C)

SBX-NVP

Surface

Mount

Box for

LS-NVP/C

P30BGM 30W Paging Amplifier

DMA2120 120W Paging

BBX-1E

Flush Mount Back Box for LE-B, LE-BN, LEF-1C, or LEF-3C

BBX-3E (not shown) Flush Mount Back Box for LEF-5C or LEF-10C

SSB-2 Ceiling Support Bracket for

SP-20N/A

HID-SS

EL-12S Door Strike

PT-1210N Transformer (requires PT-1210N) (required for EL-12S)

Card Access Station with

HID® ProxPoint® Plus

Proximity Card Reader

(requires a 3rd party host)

45° Mullion Mounting Bracket for LE-D

SBX-1G Surface Box for LE-SS-1G

RY-PA

Release

Door

Relay

Surface Mount Box for LE-DA, LE-SS/A, or LE-SSR

LEW-5.

LEW-10,

LEW-10S

Terminal Box

NP-B Indoor Call

NP-W

Flush Mount Surface Mount Box Button for NP-B

LT-1 Matching

20\Omega -to- 8\Omega Transformer

NP-25V 33µF, 25V Non-Polarized Capacitor

RY-AC/A External Signaling Relay

Specifications IMPORTANT: Use 12V DC voltage only! Connecting AC voltage to an LEF Master Station can damage the unit.

Spec ▼ | Model ► LEF-3, LEF-3L, LEF-5, LEF-10,
LEF-10S, LEF-3C, LEF-5C, LEF-10C 		LE-A, LE-AN, LE-A3, LE-AN3,
LE-B, LE-BN, LEF-1C 		BG-10C
Power Source 12V DC, 300mA per active master station - use PS-1225UL Drawn from master station 12V DC, 2.5A (uses system master)
Output 800mW @ 20 \Omega (receive), 500mW @20 \Omega (transmit)
Wire Type See wiring table below
Wire Distance Door/Sub Station to farthest Master Station: 650'(22AWG) 1,600'(18AWG) 500'(22AWG) 1,000'(18AWG)
Component Wire # Gauge Conductor
▼ LEF Standard Wiring
LEF-3 822210 22 AWG 10 cond., overall shield
LEF-5 822212 22 AWG 12 cond., overall shield
LEF-10, LEF-10S 822220 22 AWG 20 cond., overall shield
▼ LEF-1C Wiring
Homerun to BG-10C 822212 22 AWG 12 cond., overall shield
Looped (max. 9 stations) 822220 22 AWG 20 cond., overall shield
LEF-3C 822212 22 AWG 12 cond., overall shield
LEF-5C 822215 22 AWG 15 cond., overall shield
LEF-10C 822220 22 AWG 20 cond., overall shield
BG-10C to Master 822220 22 AWG 20 cond., overall shield
Component Wire # Gauge Conductor
▼ Sub / Door Station Wiring
Homerun (22AWG) 822203 22 AWG 3 cond., overall shield
Homerun (18AWG) 821803 18 AWG 3 cond., overall shield
Looped (max. 4 stations) 822206 22 AWG 6 cond., overall shield
Looped (max. 8 stations) 822210 22 AWG 10 cond., overall shield
▼ Door Release Wiring (K Terminals)
LEF-3L 822212 22 AWG 12 cond., overall shield
LEF-5, LEF-5C, LEF-10, LEF-10S, LEF-10C 822220 22 AWG 20 cond., overall shield
Additional Wiring for Door Release (optional) 822210 22 AWG 10 cond., overall shield

LOCAL AIPHONE EXPERTS ARE HERE TO HELP. CONTACT US TODAY!

LEF Series Brochure 01/2017 Digital Copy
