JP Series 7" Touchscreen Video Intercom with Room-to-Room Communication

4 DOOR

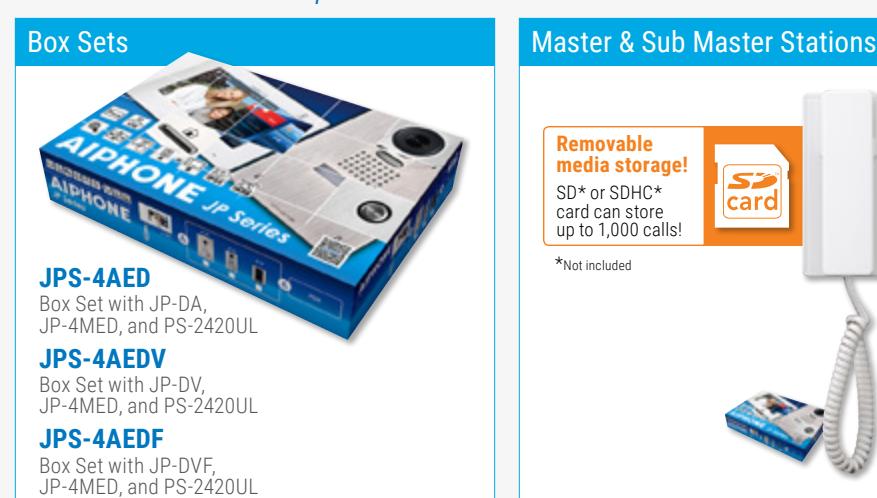

Start with a convenient, 1x1 box set for instant cost savings. Add up to 3 door stations and 7 video sub master stations for a full 4x8 intercom system.

Door Stations

JP‑DA

Video Door Station (included with JPS‑4AED box set)

• PTZ camera
• Plastic chassis
• Weather resistant
• Surface mount

JP‑DV

Video Door Station (included with JPS‑4AEDV box set)

• PTZ camera
• Zinc die cast cover
• Weather and vandal resistant
• Surface mount

JP‑DVF

Video Door Station (included with JPS‑4AEDF box set)

• PTZ camera
• Stainless steel panel
• Weather and vandal resistant
• Flush mount (back box included)

JP‑DVF‑HID

Card Access Video Door Station

• HID® ProxPoint® Plus Proximity Card Reader
• PTZ camera
• Stainless steel panel
• Weather and vandal resistant
• Flush mount (back box included)

NOTE: HID® stations require a 3rd party host and additional wire to power card reader.

JP‑DVF‑RP10

Card Access Video Door Station

• HID® multiCLASS SE® Proximity Card Reader
• PTZ camera
• Stainless steel panel
• Weather and vandal resistant • Flush mount (back box included)
• Surface

GT‑D Audio Door Station • Plastic chassis • Weather

resistant mount

JP Series 7" Touchscreen Video Intercom with Room-to-Room Communication

Components & Accessories

Power Supply & Accessories

PS-2420UL 24V DC, 2A Power Supply (included with all JPS box sets)

Electric Door Strike (requires PT-1210NA)

PT-1210NA 12V AC Transformer (required for EL-12S)

AC-10S Stand-Alone Access Control Keypad (body style matches JP-DV)

JP-8Z Distribution Adaptor for Video Sub Master Stations (only required for homerun wiring methods)

Long Distance and CCTV Adaptor for Door Stations

KAW-D 30° Angle Box for JP-DA

KMB-45 45° Mullion Mounting Bracket for GT-D or JP-DA

JK-MB Mullion Mounting Bracket for JP-DV

1-Gang Mounting Plate for JP-DV

SBX-LSE Security Lock Box for JP-DVF or JP-DVF (lock not included)

SBX-DV30 30° Angle Box for JP-DV

SBX-DVF Surface Mount Box for JP-DVF

SBX-IDVFRA Surface Mount Box for JP-DVF-HID or JP-DVF-RP10

SBX-ACE Surface Mount Box for GT-D or JP-DA and one Access Control Device

RY-24L Form C Door Release Relay

RY-3DL Selective Door Release Adaptor

Call Extension Speaker

RY-ES External Signaling Relay

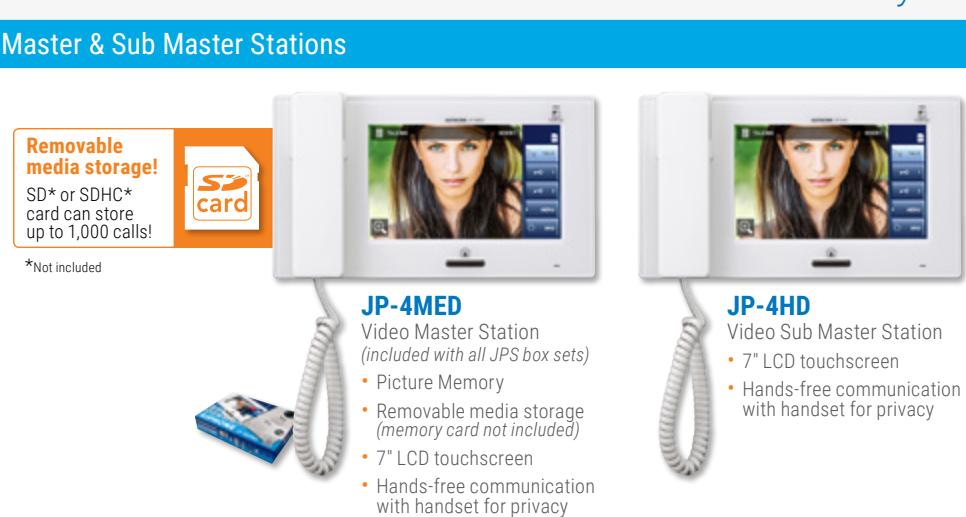

MCW-S/A Desk Stand for JP-4MED or JP-4HD (mounting hardware included)
