JP Series

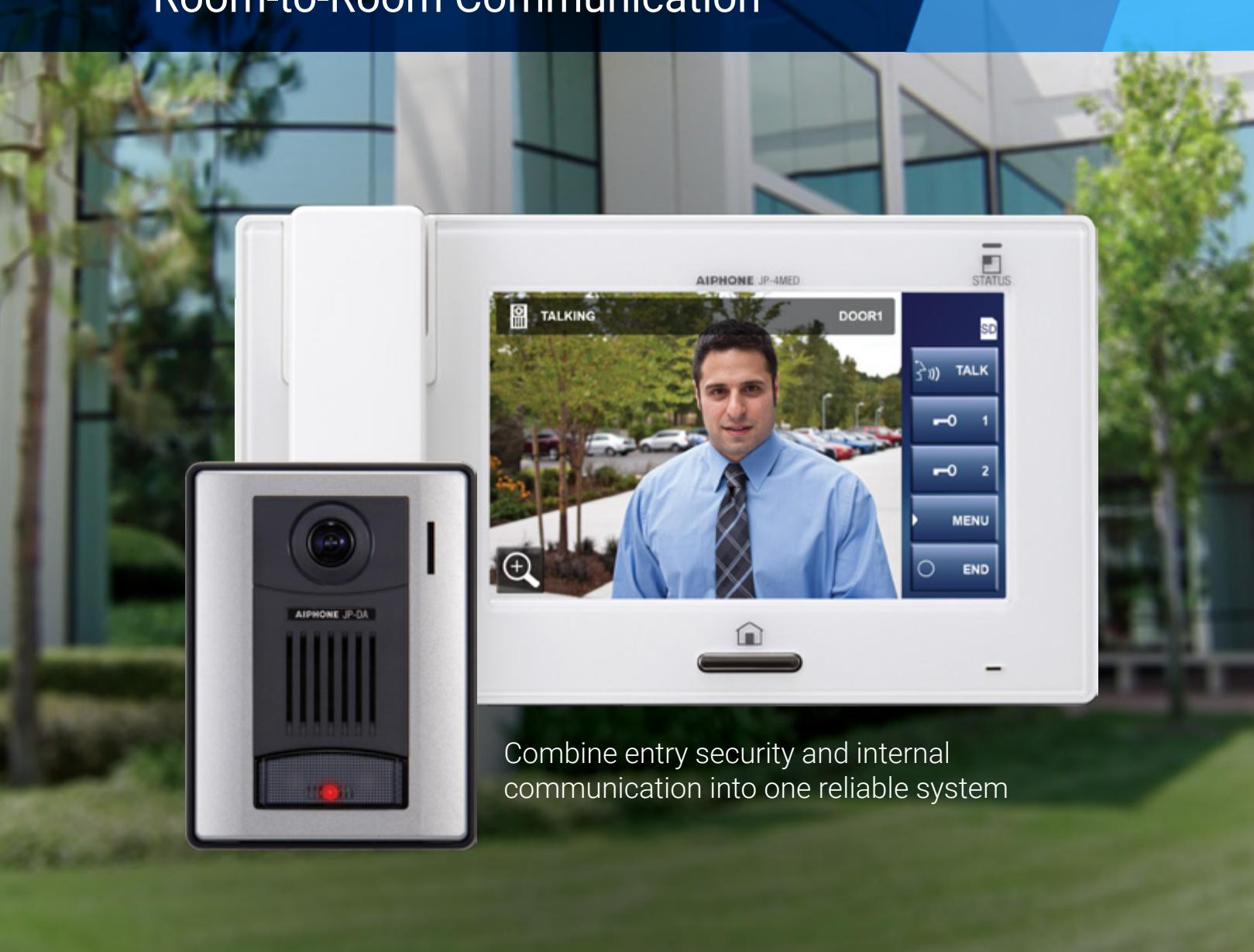

7" Touchscreen Video Intercom with Room-to-Room Communication

Touchscreen Simplicity

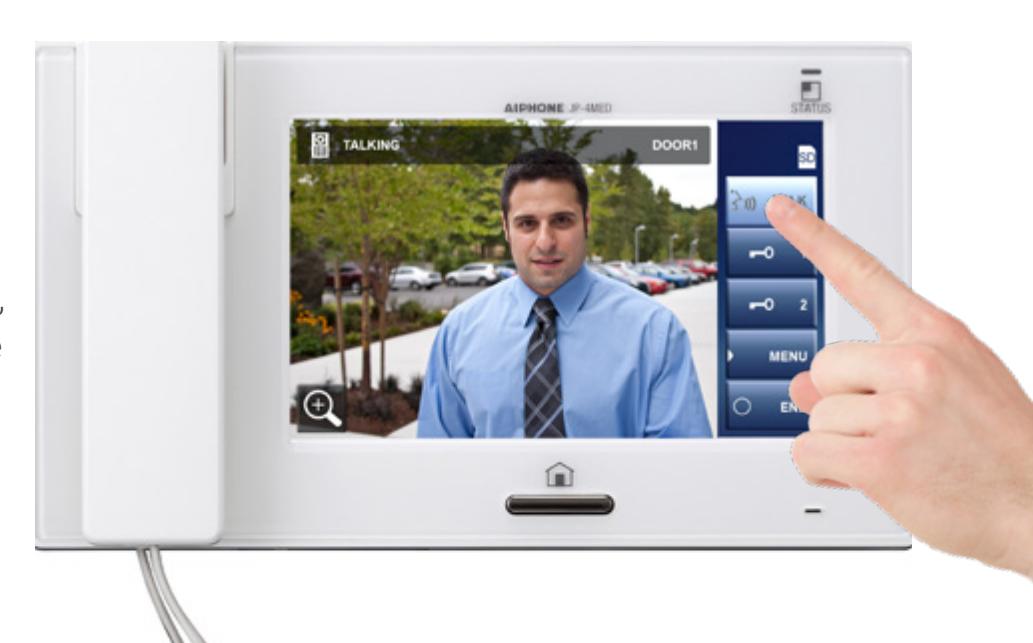

Know exactly who is at the door, even from across the room. The 7" touchscreen displays clear images from the door station. The intuitive interface replaces traditional button designs for easy operation and simplicity.

Choose Your Preferred Communication Style

HANDS-FREE FOR CONVENIENCE

Simply touch the screen and easily communicate with visitors using the built-in microphone and speaker.

Popular Applications: Offices, Homes

HANDSET FOR PRIVACY

Pick up the handset at any time during conversation. Perfect for noisy environments.

Popular Applications: Hospitals, Schools

Simple Wiring

Between door and master station:

Standard 2-conductor cable, like doorbell wire
For distances under 165', green and blue pair from a CAT-5e/6 cable

Between inside stations:

• CAT 5e/6 cable (homerun or daisy-chained)

Record Who Visited

The JP Series automatically takes pictures of visitors
Transfer images or save directly to a removable SD / SDHC card*
Easily view recorded SD/SDHC card images on a computer or other compatible device

Partitioning Creates More Application Opportunities

Control interaction and authority between stations
Designate exclusive master station(s) to communicate with, and unlock a specific door or set of doors
Password protect to prevent unauthorized changes

Internal Communication

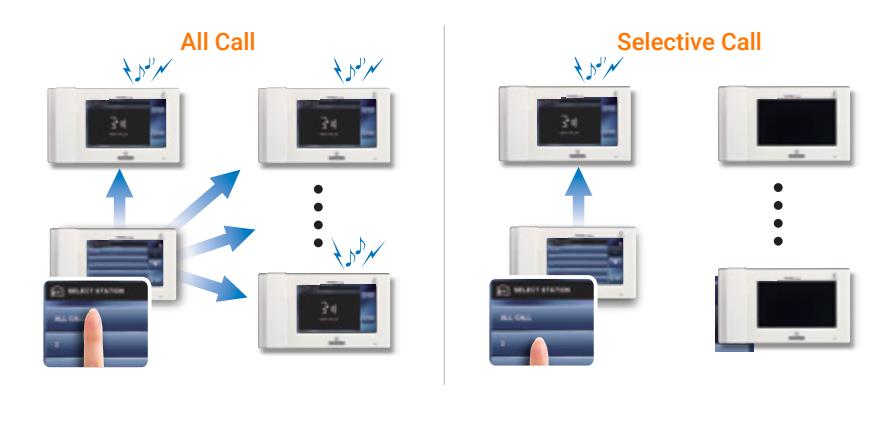

Easily communicate between stations. Simultaneously make an announcement to all inside stations or select a single station to call.

Monitor Door Stations

See and hear activity on all inside stations
View video from door stations, or CCTV cameras with the optional adaptor
Monitor for 30 secs., 60 secs., 120 secs., or continuously 24/7

JP Series Applications

Offices

Conveniently and safely identify visitors from inside. Place multiple stations around the office to ensure every visitor is attended to in a timely manner. Connect CCTV cameras to the system for surveillance of additional locations.

Schools

Lock school entrances to maintain security. Identify visitors, and unlock doors safely and conveniently from the main office or from the principal's desk.

Homes

Install JP Series door stations in children's rooms to monitor infants. As the child grows, stations can be used to communicate with parents. Door stations can also be installed in areas to monitor live-in seniors and special needs individuals.

Easily Identify Visitors

Start with a Box Set

(each set includes a door, master, and a power suppy)

JPS‑4AED JP‑4MED, JP‑DA, PS‑2420UL

JPS‑4AEDV JP‑4MED, JP‑DV, PS‑2420UL

JPS‑4AEDF JP‑4MED, JP‑DVF, PS‑2420UL

Add More Inside Stations

(up to 7 JP-4HD stations)

JP‑4HD

Video Sub Master Station

7" Touchscreen LCD
Hands‑free communication with handset for privacy
Homerun or daisy-chain with CAT-5e/6

JP‑8Z

Distribution Adaptor for Sub Master Stations

• Required only when using homerun wiring method (see below)

Add More Door Stations

(up to 4 TOTAL per system)

JP‑DA Video Door Station

PTZ camera
Plastic cover
Surface mount

JP‑DV Video Door Station

PTZ camera
Zinc die cast
Surface mount
Vandal resistant

JP‑DVF Video Door Station

PTZ camera
Stainless steel
Flush mount, (back box included )
Vandal resistant

GT‑D Audio Door

Station
Plastic cover • Surface mount

JPW-BA

Long Distance/ CCTV Camera Adaptor

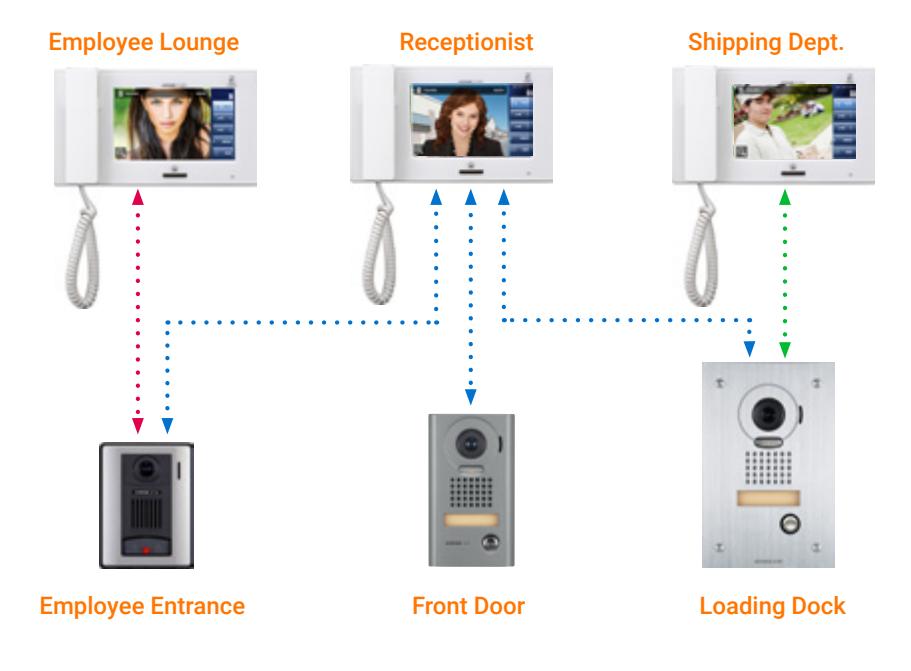

Diagram is for illustrative purposes only. System wiring may vary by installation. Refer to instructions for actual installation directions.

Specifications

Power Source 24V DC – use PS‑2420UL

Communication Hands-free (VOX) or handset (full-duplex)

Video Display 7" LCD touchscreen

Picture Memory

Internal / Built‑In: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting

Camera Type 1/4" color CMS View Area: 100° vert. x 170° horiz.

Door Release Two N/O dry contacts, 24V AC/DC, 500mA (1 door use RY-24L, 2 or 3 doors use RY‑3DL, 4 doors use RY-3DL + RY-24L)

Wire Type Door Station to Master Station: 2‑cond., mid cap, solid, non‑shielded – use Aiphone #871802. Power Supply to Master Station: 2‑cond., mid cap, solid, non‑shielded – use Aiphone #871802. JPW-BA : 2‑cond., mid cap, solid, non‑shielded – use Aiphone #871802.

Master Station to Adaptor: CAT‑5e or CAT‑6. Adaptor to Sub Master Station: CAT‑5e or CAT‑6

Distance Door Station to Master Station: 330'(18AWG) 165' (CAT-5e/6)

Total Cumulative between Master/Sub Master Stations: 980' (CAT-5e/6)

Master Station to Distribution Adaptor: 650' Door Station to Long Distance/CCTV Adaptor: 650' Long Distance/CCTV Adaptor to Master Station: 330' Distribution Adaptor to each Sub Master Station: 165' Power Supply to Master Station:

Power Supply to Distribution Adaptor: 16'(22AWG) 33'(18AWG)
