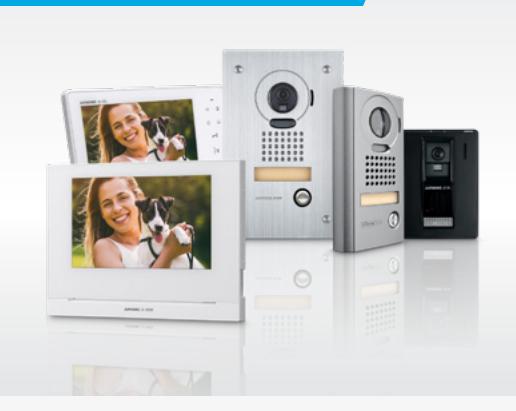

JO SERIES Entry-Level Video Intercom with Mobile App Capability

Available in both 1x1 and 1x2 box sets.

If selecting the 1x1 option, the video expansion station can be added later.

Box Sets

1x1 Box Sets with App-Compatible Master Station

JOS-1AW

Box Set with 1 JO-DA, 1 JO-1MDW, and 1 PS-1820UL

JOS-1VW

Box Set with 1 JO-DV, 1 JO-1MDW. and 1 PS-1820UL

JOS-1FW

Box Set with 1 JO-DVF, 1 JO-1MDW, and 1 PS-1820UL

1x1 Box Sets (no app capability)

JOS-1A

Box Set with 1 JO-DA, 1 JO-1MD, and 1 PS-1820UL

JOS-1V

Box Set with 1 JO-DV, 1 JO-1MD, and 1 PS-1820UL

JOS-1F

Box Set with 1 JO-DVF, 1 JO-1MD, and 1 PS-1820UL

1x2 Box Sets (no app capability)

JOS-1A2

Box Set with 1 JO-DA 1 JO-1MD, JO-1FD, and 1 PS-1820UL

JOS-1V2

Box Set with 1 JO-DV JO-1MD. 1 JO-1FD, and 1 PS-1820UL

Master & Expansion Stations

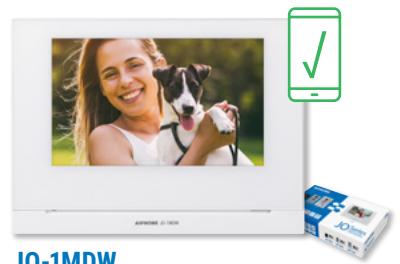

JO-1MDW

App-Compatible Video Master Station (included with JOS-1AW, JOS-1VW, and JOS-1FW box sets)

• Connect up to 8 mobile apps
• 7" LCD touchscreen
• · Hands-free or touch-to-talk communication
• · Built-in expandable memory for recording calls

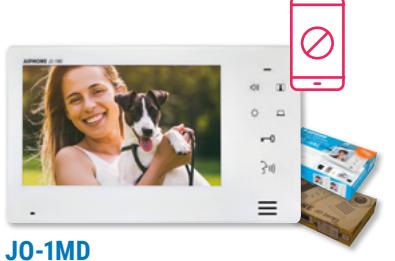

Video Master Station (included with JOS-1A, JOS-1V, JOS-1F, JOS-1A2, and JOS-1V2 box sets – not sold separately and not app-compatible)

• · Touch buttons
• · Hands-free or push-to-talk communication

JO-1FD

Video Expansion Station (included with JOS-1A2 and JOS-1V2 box sets – also sold separately)

• 7" LCD screen
• · Touch buttons
• · Hands-free or push-to-talk communication

Virtual Expansion Station Mobile App

Intercom App Type B

Virtual Expansion Station Mobile App for Smartphones and Tablets (requires JO-1MDW)

• Up to 8 apps can expand system to a total of 1 x 10
• · Calls can be answered and doors can be unlocked while on-the-go
• · Hands-free or touch-to-talk communication
• Available on Google Play™ (Google Play is a trademark of Google Inc.)
• Available on the App Store^SM (App Store is a service mark of Apple Inc.)

JO Series Entry-Level Video Intercom with Mobile App Capability

Components & Accessories

Door Stations

JO‑DA

Video Door Station (included with JOS‑1AW, JOS‑1A, and JOS‑1A2 box sets – not sold separately)

• Fixed camera
• Plastic chassis
• Weather resistant
• Surface mount

JO‑DV

Video Door Station (included with JOS‑1VW, JOS‑1V, and JOS‑1V2 box sets)

• Fixed camera
• Zinc die cast cover
• Weather and vandal resistant
• Surface mount

JO‑DVF

Video Door Station (included with JOS‑1FW and JOS‑1F box sets – not sold separately)

• Fixed camera
• Stainless steel panel
• Weather and vandal resistant
• Flush mount (back box included)

Power Supply & Accessories

PS‑1820UL

18V DC, 2A Power Supply (included with all JOS box sets)

EL‑12S

Electric Door Strike (requires PT‑1210NA)

PT‑1210NA

12V AC Transformer (required for EL‑12S)

AC‑10S

Stand‑Alone Access Control Keypad (body style matches JO‑DV)

KAW‑D

30° Angle Box for JO‑DA

KMB‑45

45° Mullion Mounting Bracket for JO‑DA

SBX‑ACE

Surface Mount Box for JO-DA and one Access Control Device

JK‑MB

Mullion Mounting Bracket for JO‑DV

MKW‑P

1‑Gang Mounting Plate for JO‑DV

SBX‑DV30

30˚ Angle Box for JO‑DV

SBX‑DVF

Surface Mount Box for JO‑DVF

RY‑18L

Form C Door Release Relay

IER‑2

Call Extension Speaker

RY‑ES

External Signaling Relay

MCW‑S/A

Desk Stand for JO‑1MDW, JO‑1MD, or JO‑1FD (mounting hardware included)

For more information visit aiphone.com/JOSheet
