Aiphone JF Series Pop Brochure
Open the original PDF document
View PDFCALL
....
....
....
....
....
....
2006
02 DEC
18:45
MENU
MEMO
AIPHONE JF-2MED
PRESS THE TALK BUTTON TO END
MONITOR
REC
PLAY

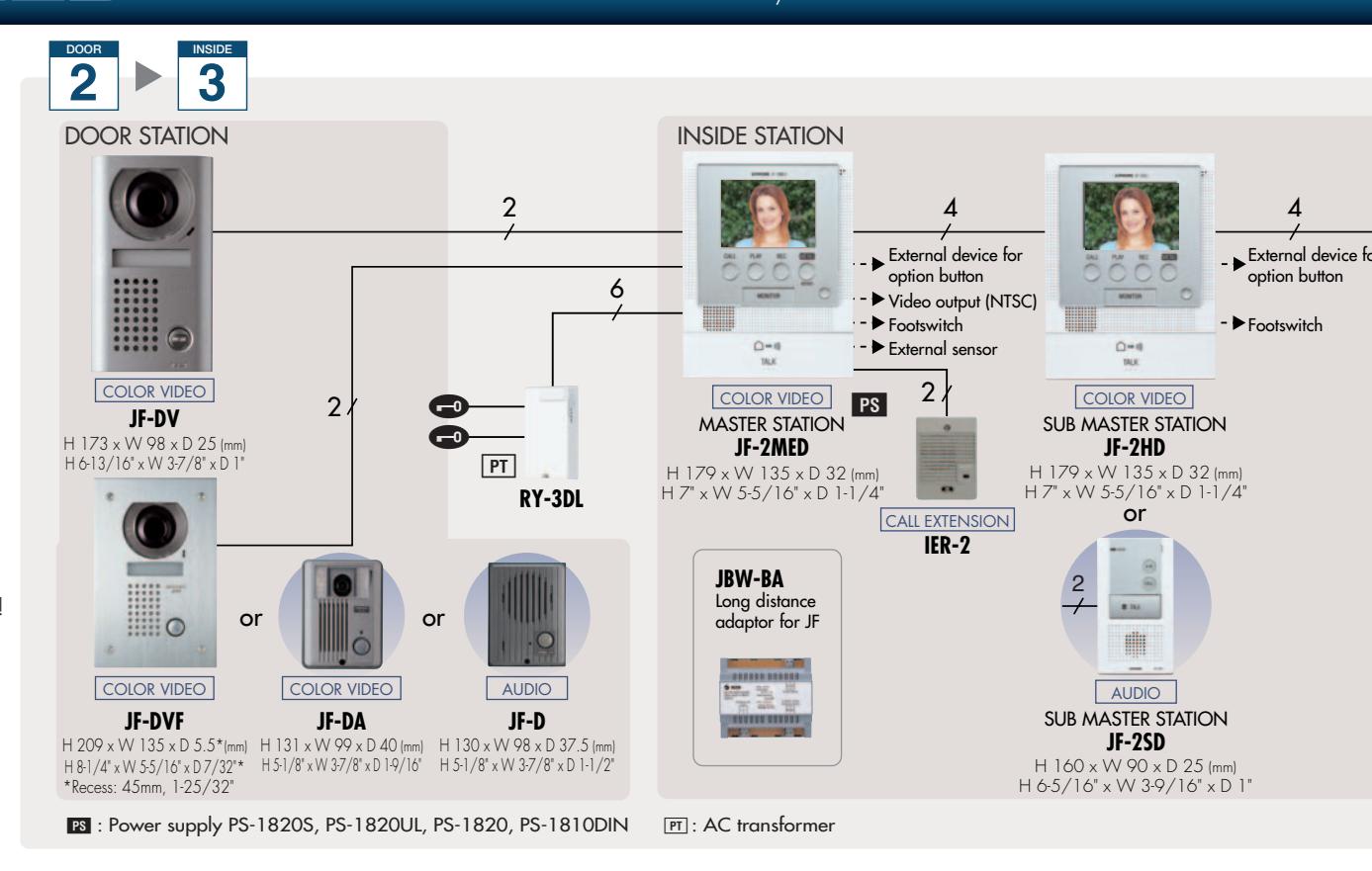

The enhanced system supports up to 2 Door Stations and 3 Inside Stations with the addition of these features: Picture Memory to record visitors, Voice Memo to leave messages on the inside monitor and Message for Entrance to record a message for visitors when speaking to them is not appropriate. All these features in a monitor that's only 32mm (1-1/4") thick! Only 32mm
....
....
....
....
----
....
....
....
....
....
.... ---
Picture Memory
Picture Memory is available both manually & automatically.
If a call is received from the Video Door Station the unit starts recording automatically, or you can also start recording by pressing the REC button manually
A max. length of approx. 8 sec. (8 shots) can be recorded with 1 picture and 1 shot
Up to 10 pictures can be protected from automatic overwriting.
Voice Memo
Take advantage of the new Voice Memo feature to stay in touch with family.
Easily record and playback a short message for someone or a reminder for vourself using the
Voice Memo
Up to 3 Voice Memos for internal use can be recorded. (max. of approx. 15 sec./memo)
Message for Entrance
Outgoing messages can be recorded and sent out at the Door Station.
COLOR VIDEO
SUB MASTER STATION
JF-2HD
AUDIO
SUB MASTER STATION
JF-2SD
The image on the monitor is simulated.
2 messages can be recorded. (max. of approx. 10 sec./message)
Actual size
