JF Series

Hands‑Free Video Intercom

Reliable Security Simple Functionality Sophisticated Design

• Affordable Video System

The JF Series has a color monitor to view images clearly and with great detail, at affordable prices.

• Clear Identification Day & Night In low light conditions, the video door station's built-in white LED illuminators will activate. Identify visitors even at night.
• Both Hands-Free & Push-to-Talk When a call comes in, press the TALK button to begin hands-free VOX (voice operated exchange) communication.
• LED Talk Indicator

The LED lights turn on when talking to visitors and turn off when listening, making communication easy.

• Option Button

Controls an external device, such as an outdoor entrance light or secondary door release (with supplied option connector) NOTE: Not available on JF-2SD

Get started with Easy-to-Install Box Sets!

JFS-2AED Includes:

JF-DA – Video Door Station JF-2MED – Video Master Station PS-1820UL – Power Supply

JFS-2AEDV Includes:

JF-DV – Video Door Station JF-2MED – Video Master Station PS-1820UL – Power Supply

JFS-2AEDF Includes:

JF-DVF – Video Door Station JF-2MED – Video Master Station PS-1820UL – Power Supply

Identify visitors safely from inside

4

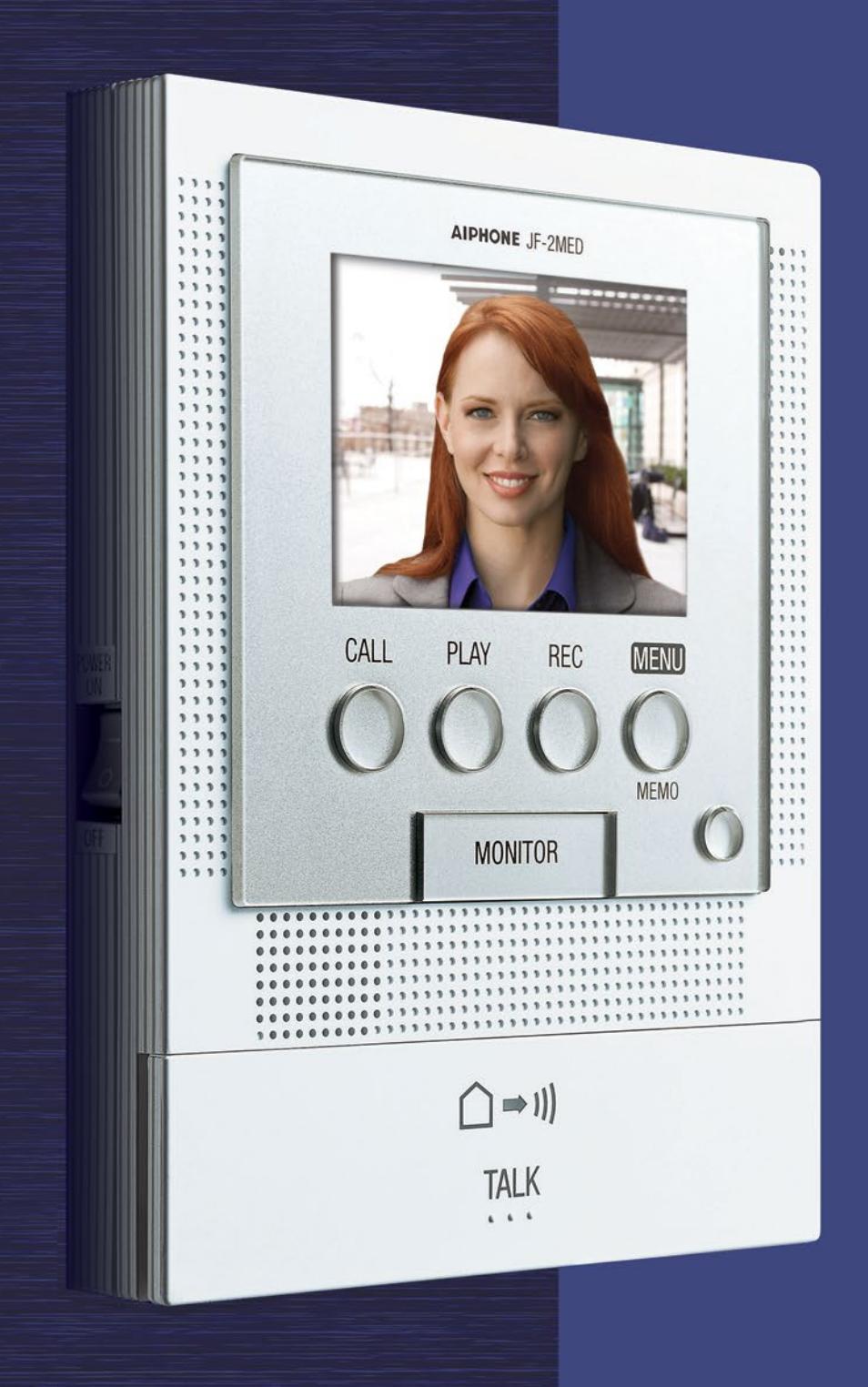

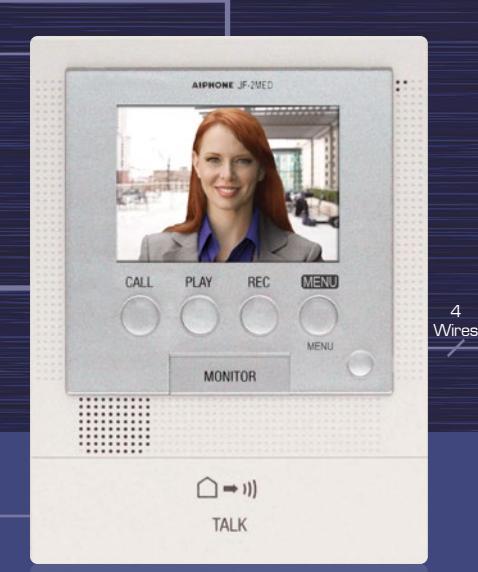

JF-2MED

Video Master Station · Picture Memory

H: 7" W: 5-5/16" D: 1-1/16"

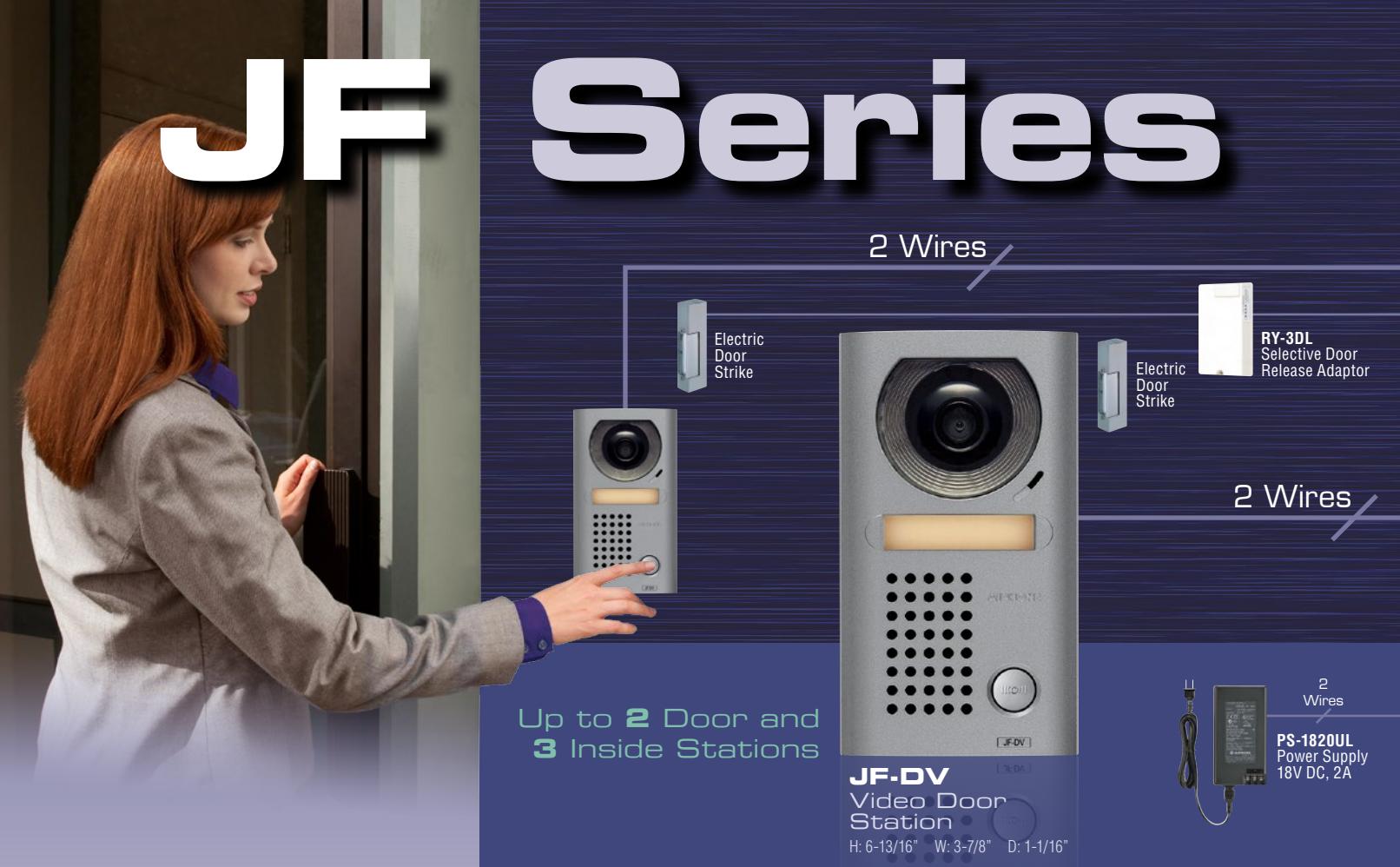

Add a door station outside...

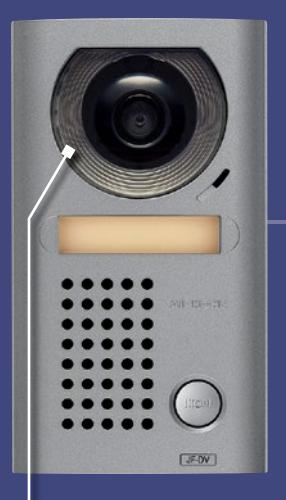

JF-DV Video Door Station

• · Fixed camera
• · Zinc die cast
• · Surface mount H: 6-13/16" W: 3-7/8" D: 1-1/16"

JF-DA Video Door Station

• · Fixed camera
• · Plastic cover
• · Surface mount H: 5-1/8" W: 3-7/8" D: 1-9/16"

Audio Door Station

• · Plastic cover
• · Surface mount

H: 5-1/8" W: 3-7/8" D: 1-1/8"

JF-2HD Video Sub Master Station H: 7" W: 5-5/16" D: 1-1/16"

Expand inside...

4 Wires

JF-2HD Sub

JF-D

JF-2SD Audio Sub Master Station H: 6-5/16" W: 3-9/16" D: 1"

Markets

Commercial

Controlled entrances, interior offices, retail stores, parking garages, loading docks, and employee only areas.

Educational

Primary and secondary schools, college campuses, controlled entrances, service areas, and faculty rooms.

Government

Local, state, and federal government branches, courtroom security, airports, and embassies.

Healthcare

Hospitals, medical clinics, administrative offices, exam rooms, nurseries, pharmacies, and staff lounges.

Residential

Single-family residences, gated entries, housing developments, and multi-tenant buildings with individual entrances.

JF-DVF Video Door Station

• ·Fixed camera
• ·Stainless steel ·Flush mount
• H: 8-1/4" W: 5-5/16" D: 1-3/4"

JF-DVF-HID

Card Access Video Door Station

• · HID® ProxPoint® Plus Proximity Card Reader
• ·Fixed camera
• ·Stainless steel
• ·Flush mount

H: 11-5/8" W: 5-3/4" D: 1-7/8"

JF-DVF-HID-I (not shown)

Card Access Video Door Station

• · HID® iCLASS® Smart Card Reader
• · Fixed camera
• · Stainless steel
• · Flush mount H: 11-5/8" W: 5-3/4" D: 1-7/8"

MASTER JF Series Features & Functions Simple. Sophisticated. Security.

Yoice Memo & Entrance Message

Leave up to 3 voice memos (15 seconds each) to be heard

messages (10 seconds each) to manually control from the master station, but to be heard at the door station.

at the master station. In addition, pre-record up to 2 entrance

AIPHONE JF-2MED

Easy Installation

Connect the door station to the master station using only 2 wires!

2 Wires

Picture Memory

Playback pre-recorded images of visitors who were automatically recorded after pushing the CALL button.

All Call

Send a call out to all

inside stations with a

1-button answer back.

Auto LED Illumination

When environmental conditions are dim, LEDs automatically turn on so visitors can be seen in the dark.

Manually Record Visitors

Once communication is open between the door and master stations, visitors can be recorded manually by pressing the REC button.

Monitor Activities Outside

Discreetly keep an eye out for suspicious behavior through the door station lens.

Hands-Free Communication

Simply push the TALK button for VOX communication or hold down for push-to-talk.

Box Sets and Accessories

Easy-to-Install Box Sets = 1 door + 1 master + 1 power supply

JFS-2AED: JF-DA. JF-2MED. PS-1820UL JFS-2AEDV: JF-DV, JF-2MED PS-1820UL JFS-2AEDF: JF-DVF. JF-2MED. PS-1820UL

MONITOR
