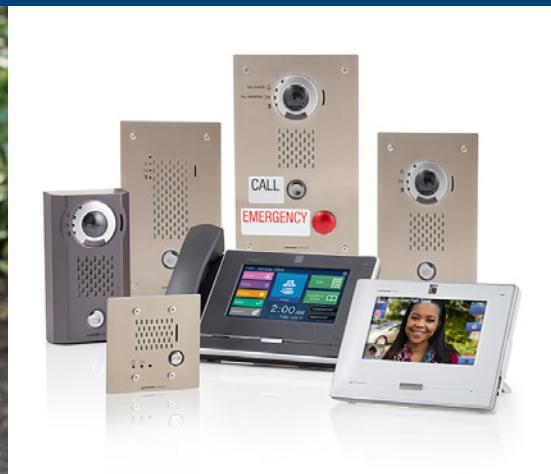

Peer-to-Peer IP Video Intercom

Mix and match an unlimited number of master, sub, door, and emergency stations.

Master Stations

IX-MV7-HB (black) IP Video Master Station

• PoF
• SIP compatible
• 7" LCD touchscreen · 8 speed-dial
• huttons Camera for
• 2-way video calls
• · Hands-free communication with handset for privacy
• · Compatible slot for microSD™ card
• · Wall or desk mount (stand included)

IX-MV7-B (black)

• PoE
• · SIP compatible
• 7" LCD touchscreen
• · 8 speed-dial huttons
• Camera for 2-way video calls

• · Hands-free communication
• Compatible slot for microSD™ card
• · Wall or desk mount (stand included)

Original IX Series IP Video Master Station

• PoF
• 3-1/2" LCD screen
• 6 speed-dial buttons
• Hands-free communication with handset for privacy
• · Wall or desk mount (stand included)

Sub Stations

IX Mobile App

Mobile App Sub Master Station for Smartphones and Tablets (requires 1 master station and 1 IXW-MA per 8 apps in the system mobile devices not included)

• · Provides station functionality to answer calls and unlock doors
• 4 speed-dial buttons can be programmed to call, page, or monitor
• Available on Google Play™ (Google Play is a trademark of Google LLC.)
• Available on the App Store^SM (App Store is a service mark of Apple Inc.)

IX-RS-W (white) IX-RS-B (black) Audio Room Sub Station

• SIP compatible · Door release button
• · Internal communication
• with other sub stations
• Hands-free communication with handset for privacy
• Wall mount

Door Stations

IP Video Door Station

• PoE (with passthrough port) or 24V DC
• SIP compatible
• Compatible slot for microSD™ card
• · Fixed camera
• Aluminum die cast cover
• Weather and vandal resistant
• · Surface mount

IP Video Door Station

• PoE (with passthrough port) or 24V DC
• · SIP compatible
• · Compatible slot for microSD™ card
• · Fixed camera
• · Stainless steel panel
• Weather and vandal resistant
• · Flush mount (back box included)

IX-DVF-P

IP Card Access Video Door Station

• Same features as IX-DVF, plus:
• HID® multiCLASS SE® Proximity Card Reader (requires a 3rd-party host and additional wire to power card reader)

IX-DA

IP Video Door Station

• PoE Fixed
• camera Plastic
• chassis Weather
• resistant Surface mount

IX-DVF-4

IP Video Door Station

• 4 call buttons
• PoE (with passthrough Stainless port) or 24V DC
• SIP compatible
• Compatible slot for microSD™ card
• · Fixed camera
• steel panel · Weather resistant
• · Flush mount (back box included)

IX-SS-2G

IP Audio Door Station

• PoE
• SIP compatible
• Stainless steel panel · Weather and vandal resistant
• Flush mount (fits 2-gang box)

IX-SSA

IP Audio Door Station PoE (with

• passthrougl port) or 24V DC SIP compatible
• Compatible slot for microSD™ card
• Stainless steel panel
• Weather and vandal resistant
• · Flush mount (back box included)

IX-BA

IP Audio Door Station

• PoE
• · Plastic chassis
• · Weather resistant · Surface mount

IX SERIES 2 Peer-to-Peer IP Video Intercom

Components & Accessories

AIPHONE ®

Emergency Stations

Stations also available with French lahels: IX-DVF-2RA-FR IX-DVF-RA-FR. IX-SSA-2RA-FR, IX-SSA-RA-FR

IX-DVF-2RA/IX-DVF-RA

ADA Compliant IP Video Emergency Station (IX-DVF-2RA has two call buttons, IX-DVF-RA has one call button)

• PoE (with passthrough Lettering and port) or 24V DC braille signag
• SIP compatible
• · Compatible slot for microSD™ card
• Fixed camera
• braille signage
• LED call status indicator
• 2 Form C relay outputs
• · Stainless steel panel
• · Weather and
• vandal resistant

IX-SSA-2RA/IX-SSA-RA

ADA Compliant IP Audio Emergency Station (IX-SSA-2RA has two call buttons, IX-SSA-RA has one call button)

• PoE (with passthrough LED call port) or 24V DC
• SIP compatible
• Compatible slot for microSD™ card
• Lettering and braille signage
• status indicator
• 2 Form C relay outputs
• · Stainless steel panel

(TWS-Z4, TWS-Z2, and TWS-Z1 will be available Nov 2019)

TWS-Z4

Zone 4 Solar Tower Set

Includes WB-HE

Surveillance's

solar panel

and mounting

Wireless solar

solution powers

one solar panel

for sun-rated

zones 4 0+

wall box beacon/

components

strobe and

emergency call station Equipped with

wall box with Sun

Weather and vandal resistant

Adaptors

IXW-MA

IP Relay Adaptor

• · Compatibility with IX Support Tool makes programming efficient - no need to program adaptors separately
• 10 outputs
• Supports up to 8 mobile apps

IPW-1VC

2-Wire Network Adaptor (includes power supply)

• · Upgrade 2-wire analog systems to an IP video intercom
• Use existing wire up to 1,000' (18-22AWG shielded, unshielded)
• Compact design is small enough to fit behind most door or sub stations

Network Paging Adaptor

• 8Ω, 5W speaker output
• 600Ω amplifier output
• · Audio input
• PoF

2-Wire Audio Door/Sub Station Network Adaptor

• · Supports 1 LE Series, NE Series, or 8Ω Door/Sub Station

IX-10AS

2-Wire Audio Door/Sub Station Network Adaptor (includes 10 IX-1AS adaptors each requires a network connection)

• Supports up to 10 LE Series, NE Series, or 8Ω Door/Sub Stations
• PoE (x10)

Easily Upgrade LE or NE Series Stations with Audio Door/Sub Station Network Adaptors

Emergency Wall Boxes & Towers

WB-CA/WB-HA

ADA Compliant Wall Box

• · Cage (WB-CA) or hood (WB-HA) with beacon/strobe light
• ASSISTANCE lettering
• · UL Listed electrical box
• Stainless steel enclosure with slim, 4" depth
• Wall mount

WB-CE/WB-HE

ADA Compliant Wall Box

• · Cage (WB-CE) or hood (WB-HE) with beacon/strobe light
• EMERGENCY lettering
• III Listed electrical box
• · Stainless steel enclosure with slim, 4" depth
  • Wall mount

Accessories

KMB-45

45° Mullion Mounting Bracket for IX-BA

IX-SDH Surface Mount Security Housing for IX-BA

or IX-DA

IX-SDH-P

Surface Mount Security Housing with HID® multiCLASS SE® Proximity Card Reader for IX-BA or IX-DA

SBX-IDVF

Mullion Mounting Bracket for IX-DV (available Nov 2019)

30° Angle

TW-SPL

or IX-SSA

Tower Mounting Plate for IX-DVF

(adapts standard door

station to an Aiphone

Surface Mount Box for IX-DVF or IX-SSA MB-RF1

IX-DVF-2RA, IX-DVF-RA IX-SSA-2RA

or IX-SSA-RA (adapts emergency station to an existing Code Blue® or Talk-A-Phone® tower or wall box)

Code Blue® is a registered trademark of Code Blue Corporation. Talk-A-Phone® is a registered trademark of Talkaphone LLC.

SBX-IDVFRA

Surface Mount Box for IX-DVF-2RA, IX-DVF-RA, IX-DVF-P. IX-DVF-4 IX-SSA-2RA or IX-SSA-RA

TW-MKL

L-Bolt Mounting Kit for Modular Towers (an L-bolt mounting kit is required for tower installation – TW-MKI is recommended)

Modular Towers

Mid-Level Single-Station, High-Level Dual-Station, and High-Level Single-Station Towers · UL Listed electrical box

• · CCTV camera arm module with universal pipe threading
• · Includes accessory mounting hardware · Large, easy-access
• panel on each module Modular design provides lower freight costs and easier assembly than non-modular towers
• Variety of configurations. including size, lettering, and colors
• · Zinc-treated steel with powder coating

PS-POE

PoE Splitter

• · Powers strobe light, eliminating the need of a separate power supply
• Avoid added wire - only one cable is néeded from the PoE+ switch when wired with an IX Series 2 emergency station
• Mounts directly to the back of an IX Series 2 emergency call station or 1-gang box

temperatures ranging

from -40 to 167° F

Can withstand

but equipped with two solar panels for sun-rated zones 2.0-3.9 TWS-Z1 (not shown)

· Same as TWS-74 but equipped with three solar panels for sun-rated zones 1.0-1.9

Zone 1 Solar Tower Set

For more information visit aiphone.com/IX2Sheet
