HANDSET INTERCOM

Models; AT-406 Set

AT-306 Additional sub

INSTALLATION & OPERATION MANUAL

SYSTEM OUTLINE & COMPONENTS -

AT-406 is a Handset Intercom set, allowing two-way calling & communication.

Package Contents

• Handset Intercom set (AT-406) or Sub station (AT-306)
• Mounting bracket
• Packet of screws
• Installation & Operation Manual

• Components available
• AT-406 Boxed set
• AT-406P Decorative boxed set (N/A in USA)
• AT-306 Add-on sub (add'l 2 pcs max.)
• Power supply:
• SKK-620 in USA or PS-6D, or 4 pcs SUM-3(AA) batteries.
• TAR-3 relay for external signalling device. Powered by a separate 6V DC power supply.

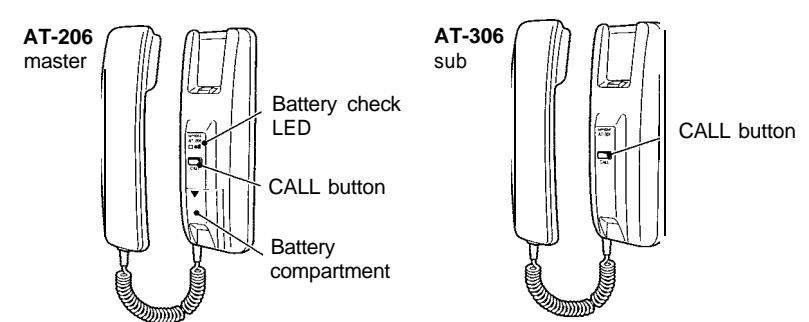

2 NAMES & FEATURES

Features

2-handset communication system suited for:

R.V. cab-to-camper, Boat deck-to-cabin, Limo. chauffer to back seat, and Restaurant kitchen to bar, etc.

• Up to 3 subs
• · Electronic call tone, not adjustable
• Front loading batteries
• Battery or DC powered
• External signalling device

3 PRECAUTIONS ON INSTALLATION & WIRING

Mounting

AT-406 set is designed for indoor use only. Do not install outdoors. It must be used in wall-mounted applications only.

■ Wiring

AT-406 can be wired with 2 non-polarized wires. When add-on sub(s) is installed, connect in loop or home run. Keep audio wires 50cm, 20" away from any AC wiring, fluorescent lights, dimmer switches, etc.

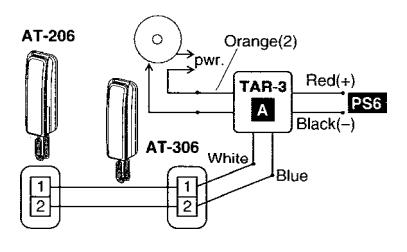

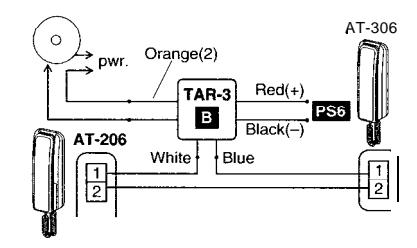

External signalling device

Any particular station can be signalled by bell or light, while it rings. Install TAR-3 relay powered by its own 6V DC power supply (SKK-620 or PS-6D).

= Loading batteries

Slide down front battery cover. Place four SUM-3 (AA) batteries into compartment. Observe polarity.

■ Battery LED indicator

• 1 . LED is brightly lit.
  • → Batteries are powerful enough.
• 2. Becomes dim during use.
• → Batteries are getting weaker.
• 3. LED is no longer lit.
  • → Batteries are exhausted. Replace all four batteries with new ones.

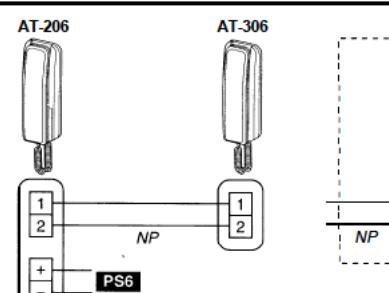

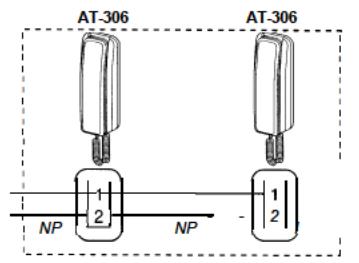

4 WIRING

NP: Non-polarized

PS6 : 6V DC power supply. SKK-620: (+) Red, (-) Black. PS-6D : (+) Red, (-) White.

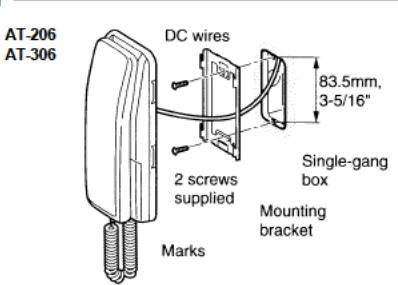

5 MOUNTING

Mount the intercom on bracket, aligning at the marks. Pull down on bracket, until it properly locks. Terminal section is on the back side. Do not disassemble the unit. For surface wall cable run, outlet hole is provided on the top or bottom of chassis.

6 OPERATIONS

Press CALL button to call other station(s)(max. 3 subs). It rings as long as CALL button is pressed. Communicate on handsets. At conclusion, replace handset onto cradle. If not hung up, battery power is consumed.

★ External device, connected to a station, is activated as long as call tone rings on handset.

7 TECHNICAL PRECAUTIONS

• ★ Do not hold hook switch down while handset is off hook, as the call tone sounds very loud through handset receiver.
• ★ Do not connect AC wires to any terminal on any unit.
• ★ Do not use DC power supply when the batteries are installed.
• ★ Do not install AT-406 in places subjected to temperature/humidity extremes, dust, oil, chemicals, salt, etc.
• ★ Clean AT-406 with a soft cloth dampened with neutral household cleanser. Never use any abrasive cleaner or cloth.

8 SPECIFICATIONS (AT-406)

Power source: 6V DC, 120mA. OA standby.

Power supply: SKK-620 in USA or PS-6D power supply. Or 4 pcs SUM-3(AA) batteries. Communication: Electronic tone rings opponnent station(s). Common talk system with handset.

Wiring: 2 wires parallel, non-polarized.

Wiring distance: Diameter 2-station 0.65mmø 1.0mmø 2-station 700m 1,600m 3 AT-306's 400m 940m

Diameter	0.65mmø	1.0mmø	| A	WG	22AWG	18AWG
2-station	700m	1,600m	2-s	station	2,300'	5,250'
AT-306's	400m	940m	3 A	T-306's	1,350'	3,100'

Dimensions & weight: 210H x 80W x 52D. 8-1/4"H x 3-1/8"W x 2"D.

AT-206: 310g (0.68 lbs.) approx. AT-306: 280g (0.62 lbs.) approx.
