This operation guide describes the basic functions of your GT Series Tenant Station

QR Code Place Holder

For a complete operation manual (3.7MB), scan QR code or use link to download it from the manufacturer's website: www.aiphone.com/gt-2h_op-man

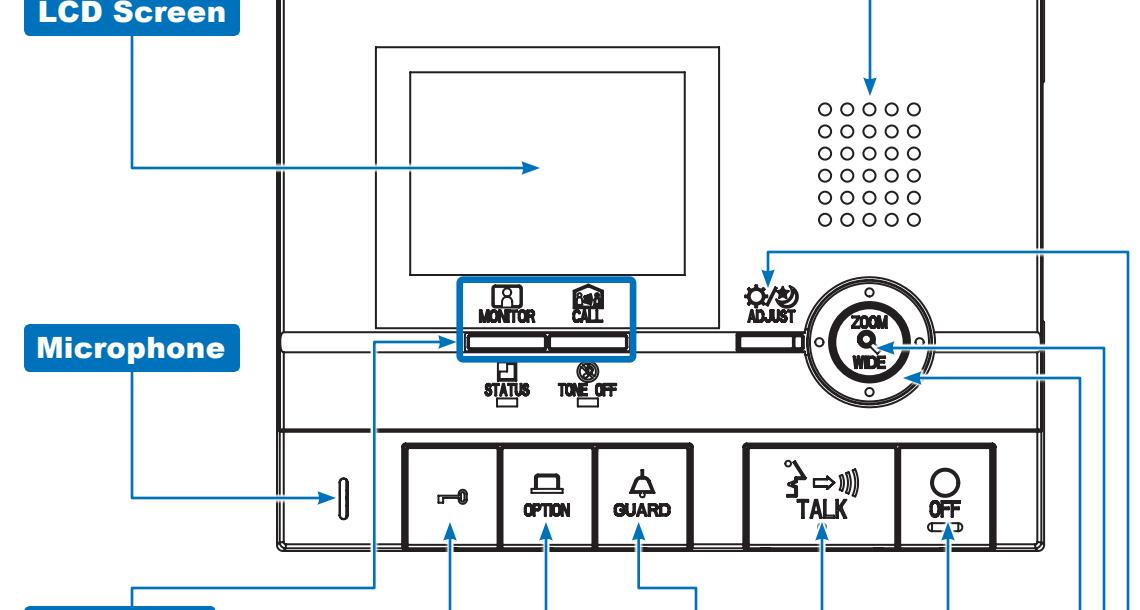

GT-2H Tenant Sub Station

Control

Speaker LCD Screen Brightness

Use the dial to adjust the LCD screen brightness levels (0~10).

Volume Control

Use the dial to adjust the communication volume (0~10).

Chime Volume Control

Use the dial to adjust the chime volume (0~10). The TONE OFF light blinks slowly when the chime is muted.

ADJUST Button

Push the ADJUST button to compensate for low or bright backlight conditions when viewing video from a door station.

ZOOM/WIDE Button

Push the ZOOM/WIDE button to change the screen view or to make a menu selection.

Camera/Cursor Control Button

Push , , , or to change the camera view (zoom-view only). When making menu selections, push or to change the cursor position.

Power Source

This tenant sub station is powered by the main tenant station (GT-2C) and will always remain on, even when the screen is off. Contact the building manager if the

tenant sub station in this residence is not working.

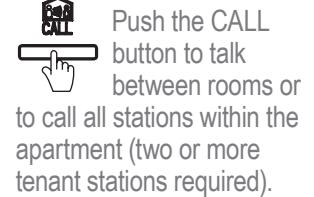

Operation Buttons

Push the MONITOR Button button to see and hear activity in the hallway (personal tenant door station required) or at the main entrance (if enabled).

Door Release

Push the door release button to unlock the entrance during a call.

OPTION Button

Push the OPTION button to activate an external device (if included).

Once answered, conversation becomes hands-free. For push-to-talk (PTT) mode, push the TALK button until a

TALK Button

Push the TALK button to answer an incoming call.

(this does not turn off the station).

OFF Button

Push the OFF button to end a call

beep is heard. The conversation then requires the TALK button to be pushed and held while talking and released while listening. Whether the conversation is hands-free or PTT, the talk indicator light turns on while you speak and will turn off while your visitor speaks.

GUARD Button

Push the GUARD button to call all guard and concierge stations connected to the system (if included). To view a visitor on a CCTV camera

(if enabled), push the GUARD button while in communication with the entrance station.
