AIPHONE

EL-12S ELECTRIC DOOR STRIKE INSTALLATION MANUAL

PRECAUTIONS

1. PACKAGE CONTENTS

EL-12S, Screws x 2, Wood screws x 2, Plate for surface mount x 1, INSTALLATION MANUAL x 1

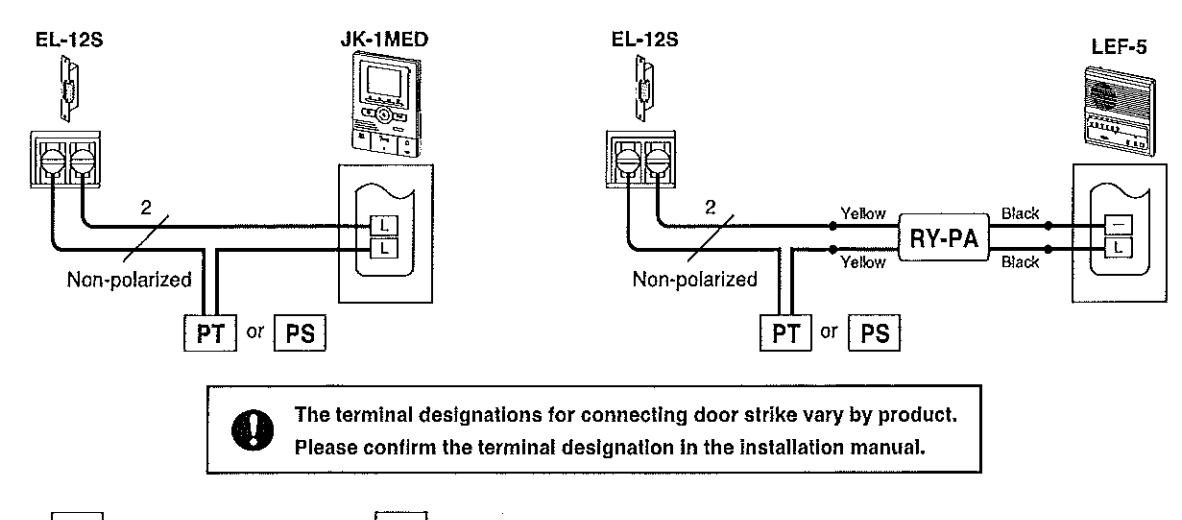

2. WIRING

Power source: 12V AC/DC

Current consumption: AC: 125mA, DC: 200mA

Operating temperature: $-10^\{\backslash circ\}$ C $\backslash sim$ +60 $^\{\backslash circ\}$ C (+14 $^\{\backslash circ\}$ F $\backslash sim$ +140 $^\{\backslash circ\}$ F)

Dimensions: Built-in 160(H) x 25(W) x 31(D)(mm), 6-5/16"(H) x 1"(W) x 1-7/32"(D)

Surface mount 160(H) x 50(W) x 31(D)(mm), 6-5/16"(H) x 1-31/32"(W) x 1-7/32"(D)

Weight: Built-in 290 g (0.64 lbs.) approx.

Surface mount 320 g (0.7 lbs.) approx.

. .

WARRANTY Alphone warrants its products to be free from defects of material and workmanship under normal use and service for a period of one year after delivery to the ultimate user and will repair free of charge or replace at no charge, should it become defective upon which examination shall disclose to be defective and under warranty. Alphone reserves unto litself the sole right to make the final decision whether there is a defect in materials and/or workmanship; and whether or not the product is within the warranty. This warranty shall not apply to any Alphone product which has been subject to misuse, neglect, accident, or to use in violation of instructions furnished, nor extended to units which have been repaired or altered outside of the factory. This warranty does not cover batteries or damage caused by batteries used in writing connection with the unit. This warranty covers bench repairs only, and any repairs must be made at the shop or place designated in writing by Aiphone. Aiphone will not be responsible for any costs incurred involving on site service calls. Alphone will not provide compensation for any loss or damage incurred by the breakdown or malfunction of its products during use, or for any consequent inconvenience or losses that may result. <del>,</del>
