The practical solution for ACCESS CONTROL and internal communication

DOOR STRIKE draws power directly from door station so separate power supply and wire are not required.

EASY TO INSTALL using only 2 wires from the entrance station to the master station.

ALL CALL provides internal communication between stations.

HANDS-FREE communication is great for home or office.

CAPACITY is 1 entrance station, 1 master station, and up to 4 sub stations.

1 master station and up to 4 sub stations

DB Series Features & Functions

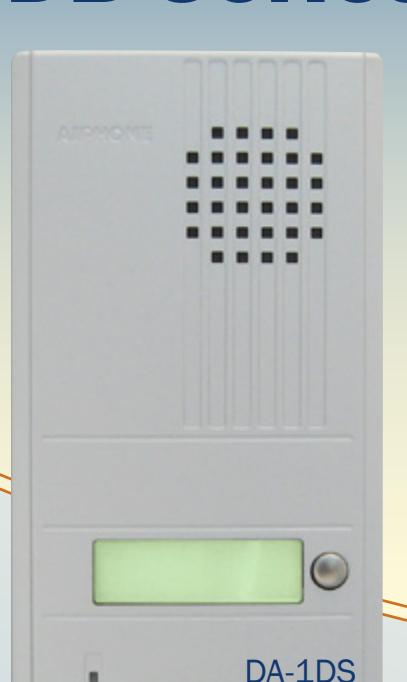

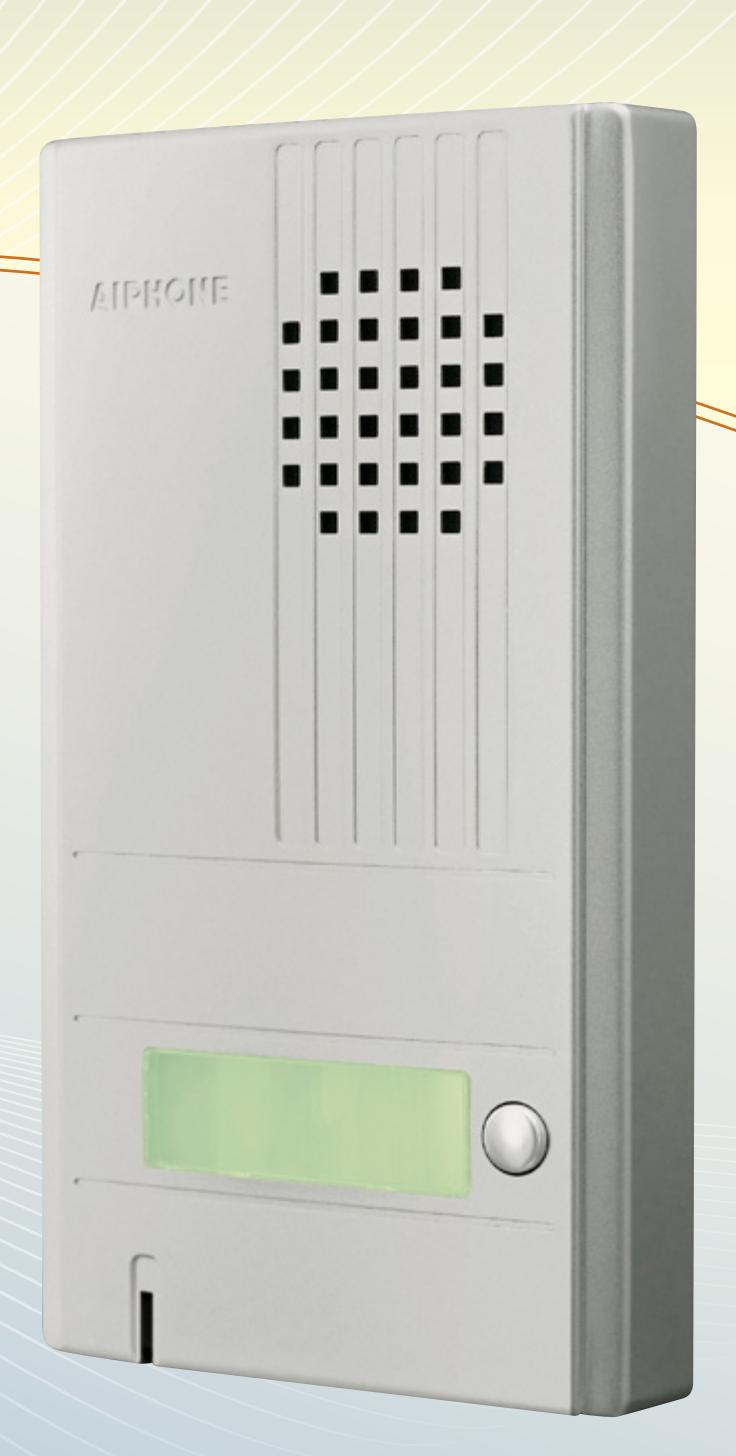

ENTRANCE STATIONS (DA-1DS/2DS/4DS)

• 1, 2, and 4-call stations available
• Surface mount and weather resistant
• Customizable back-lit directory 6-7/8"H 4"W 7/8"D

SUB STATION (DB-1SD)

• Up to 4 additional sub stations
• 4 wires between sub stations
• Hands-free communication
• Option button for external device
• All Call to master and sub stations
• Electric door release
• Surface mount to wall or desk mount using MCW-S/A 7-1/4"H 3-1/8"W 1-1/16"D

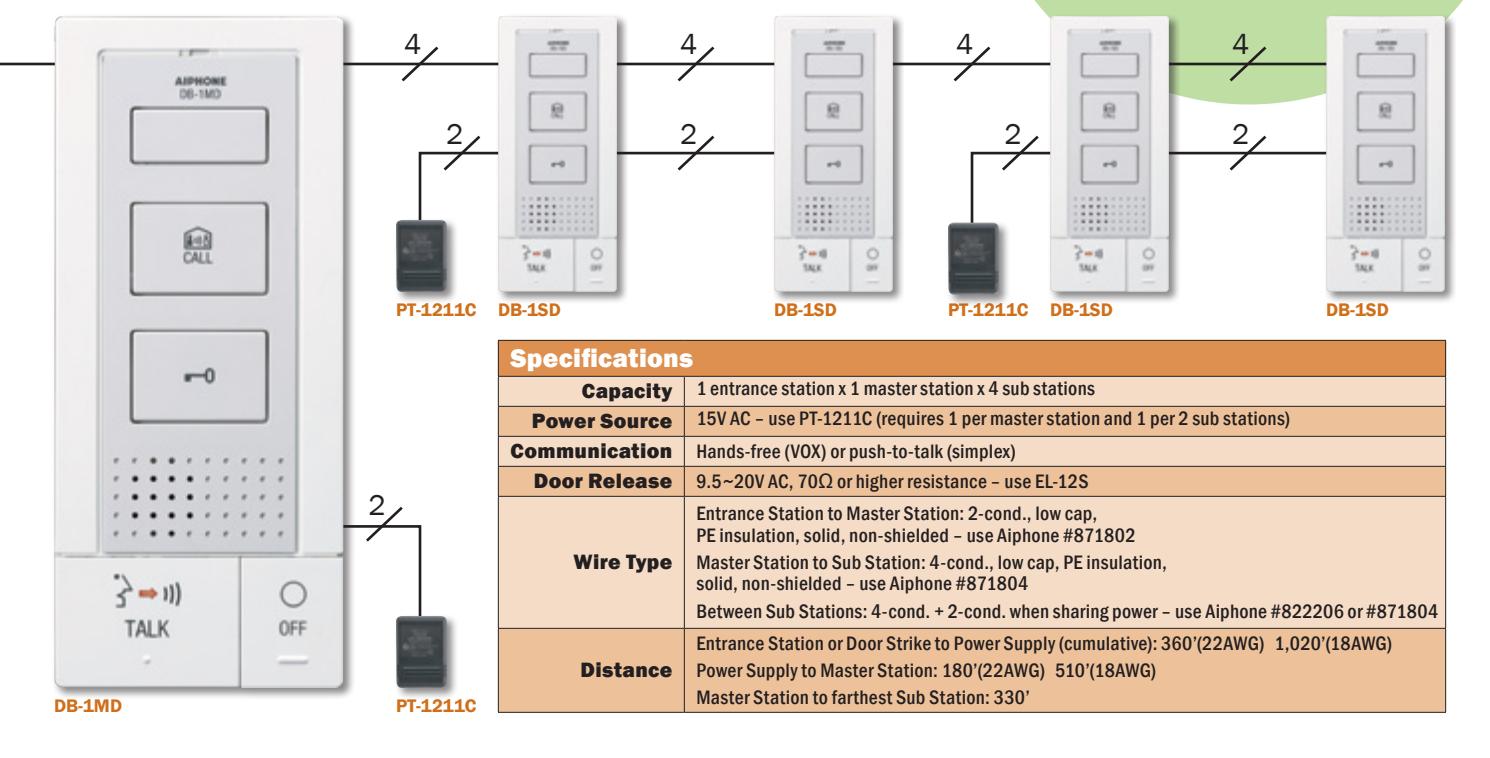

2 WIRE INSTALLATION

• Easy installation using only 2 wires from door to master
• Utilizes existing doorbell wires

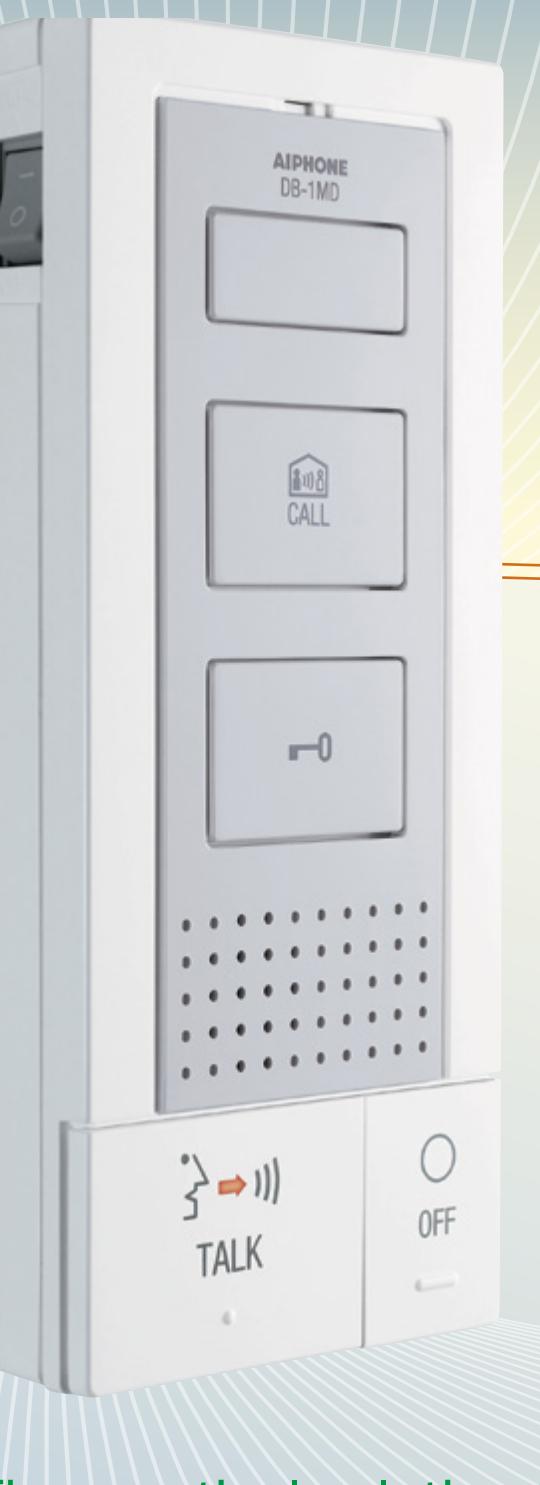

MASTER STATION

(DB-1MD - shown with optional MCW-S/A)

• Hands-free communication
• Option button for external device
• All Call to sub stations
• Electric door release
• Surface mount to wall or desk mount using MCW-S/A

7-1/4"H 3-1/8"W 1-1/16"D

DOOR STRIKE (EL-12S)

• Wired directly to door station using only 2 wires
• Separate power supply not needed for strike
• 12V AC/DC, 200mA

BOX SET (DBS-1A)

• Added convenience in this all-in-one kit
• Set includes 1 single-call door station, 1 master station, & 1 power supply

POWER & ACCESSORIES

• PT-1211C: AC transformer, 15V AC
• IER-2: Call extension speaker
• RY-ES: External signaling relay

OFF

• Alternative to wall mounting
• Pre-drilled mounting holes
• Adjustable to 45° & 60° angles for better viewing

6"H 4-6/16"W 6-1/2"D
